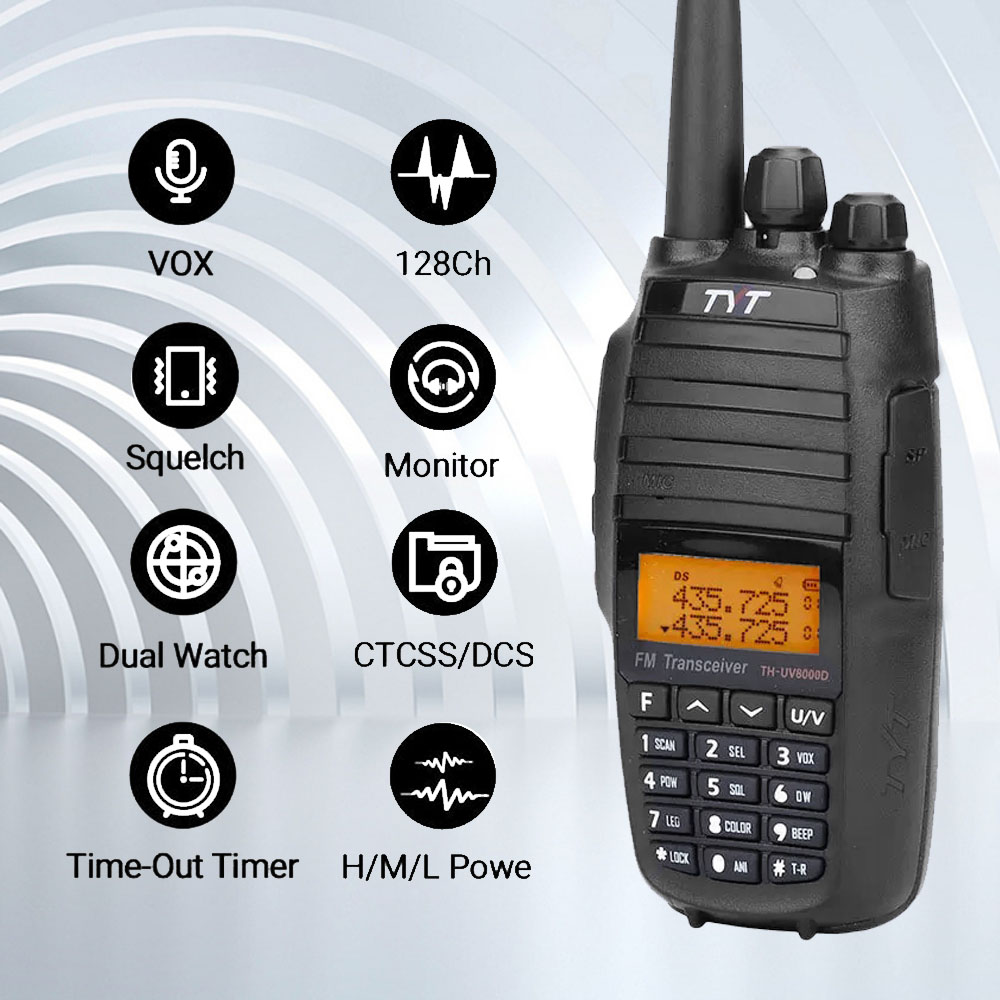

Main Feature:
VHF:134-174MHz &UHF:400-520MHz
16 channels
Programming protection
VOX
CTCSS/DCS
Chinese and English voice prompt
Battery saving function
Hi/low power selective
Scan
COMP
Wide/ Narrow bandwidth selective
End-tone elimination
Emergency alert
Power protection
High/low voltage TX prohition
Low battery prompt
Specifications:
|

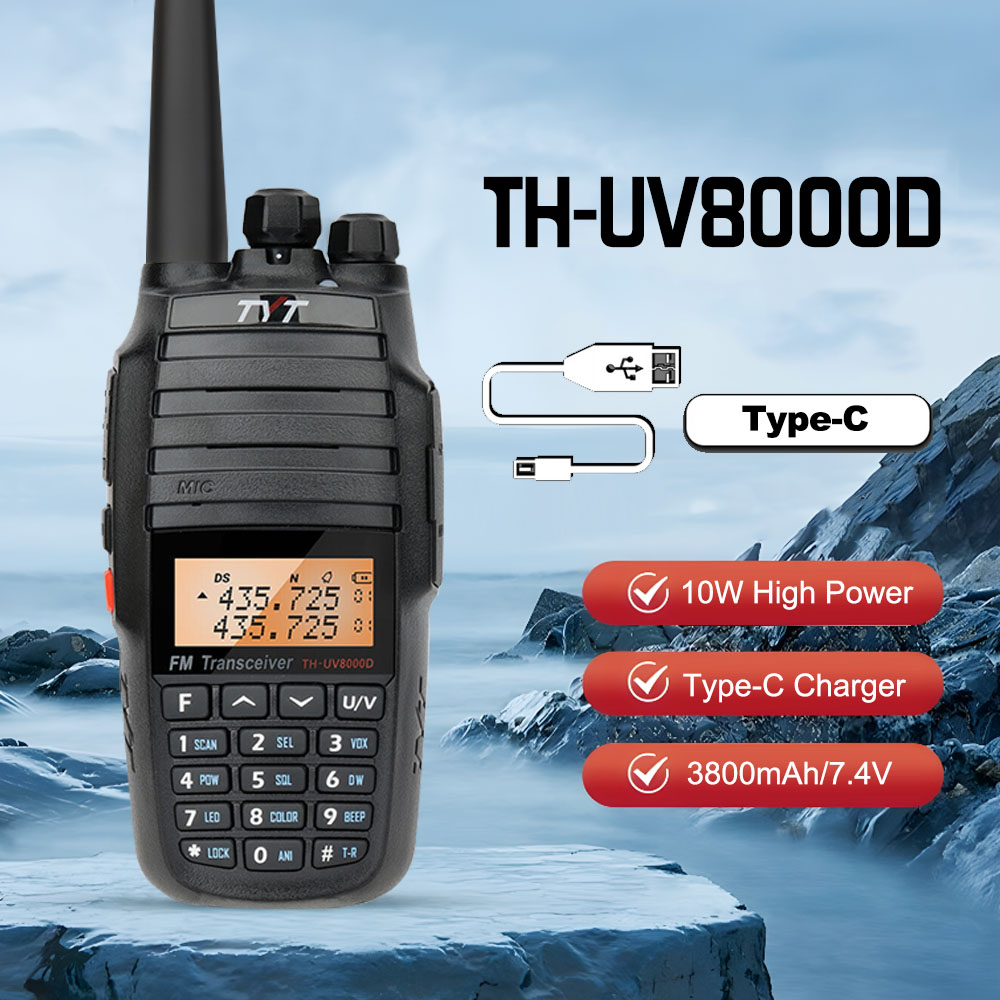

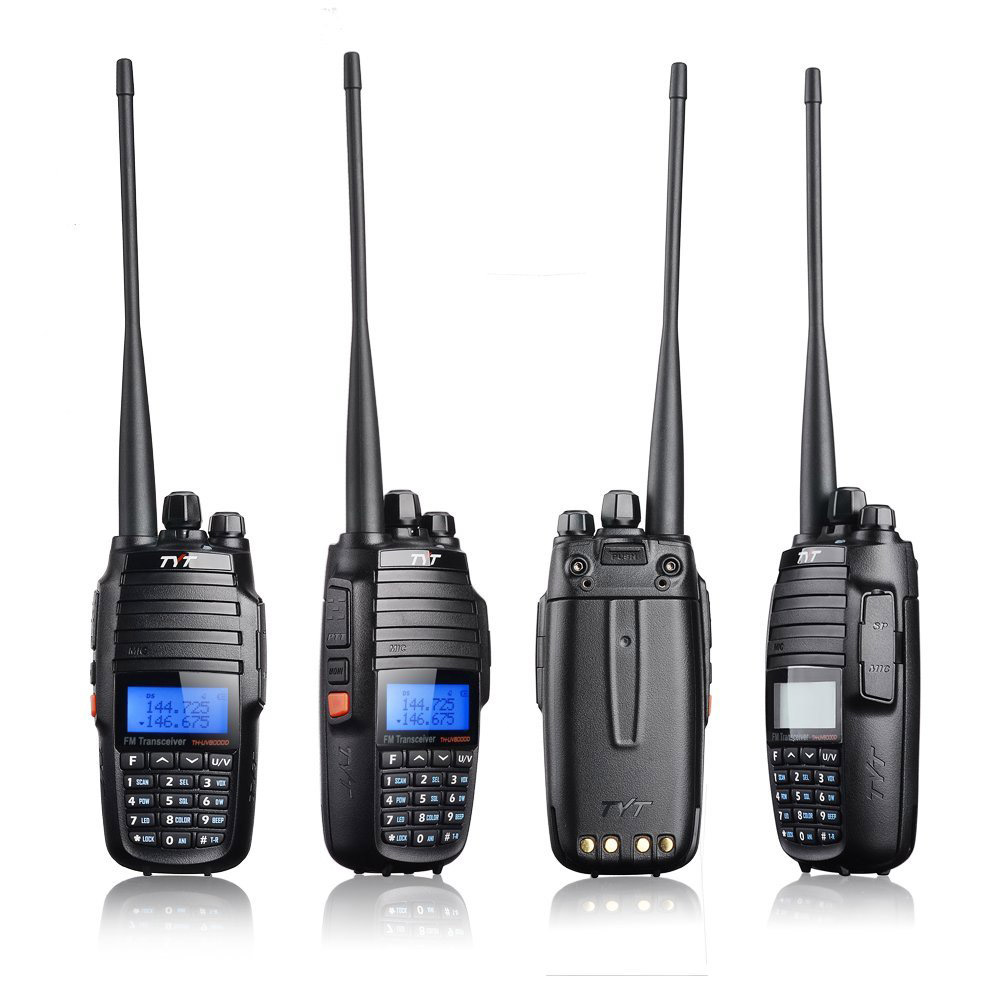

Model |

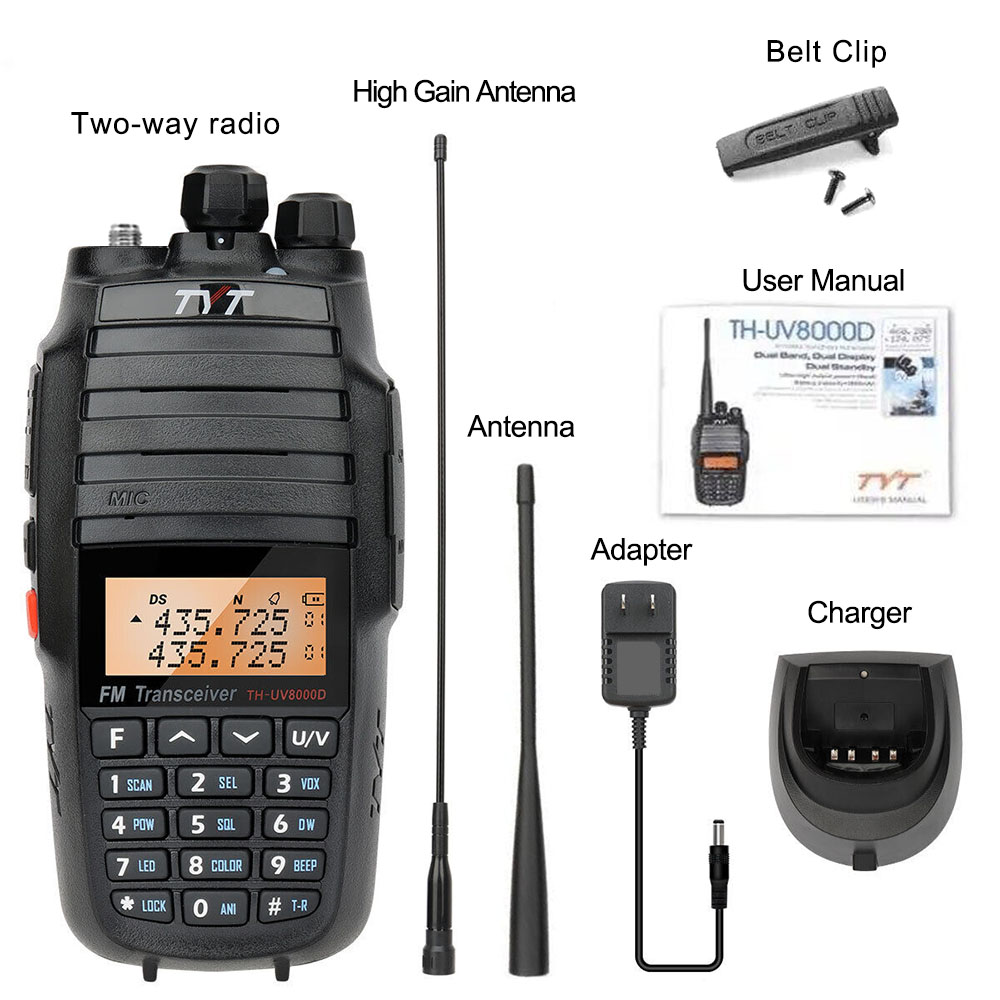

TH-UV8000D |
|
Frequency Range |
136-174/400-520MHz |
|
Channel capacity |
16 |
|

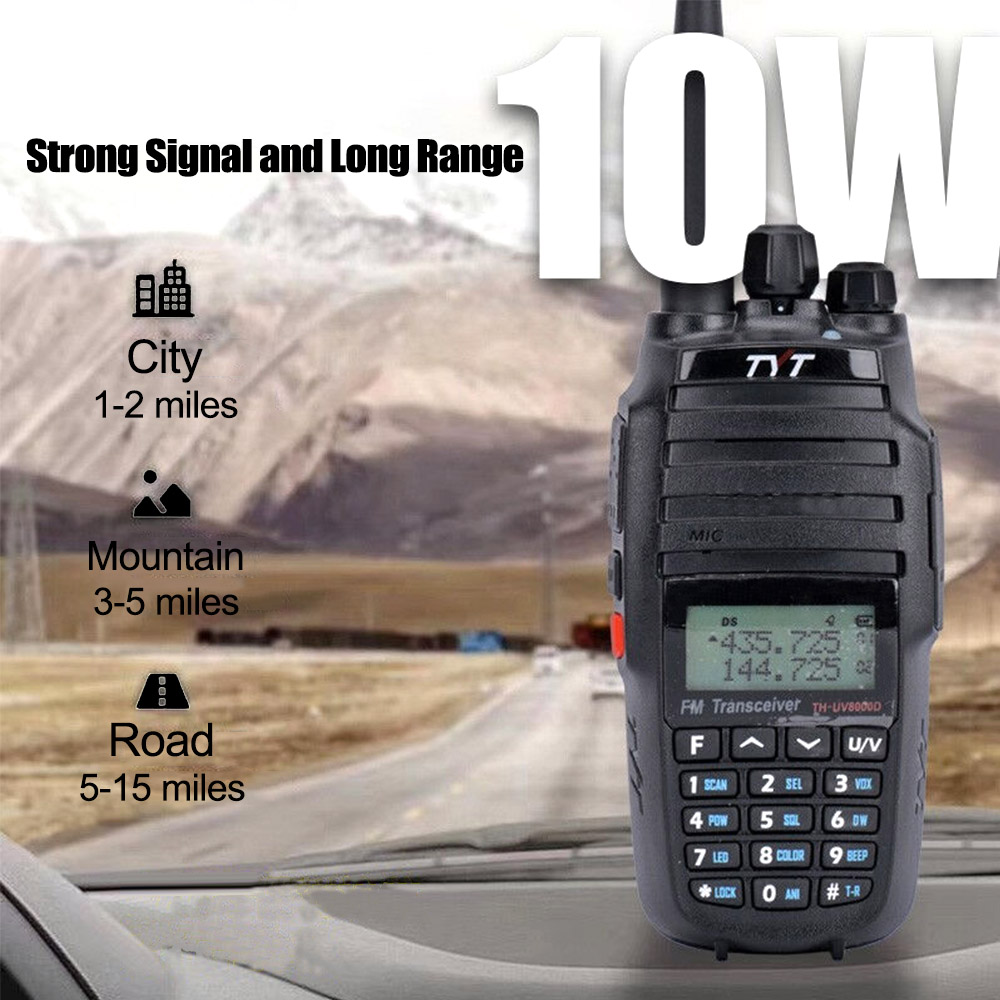

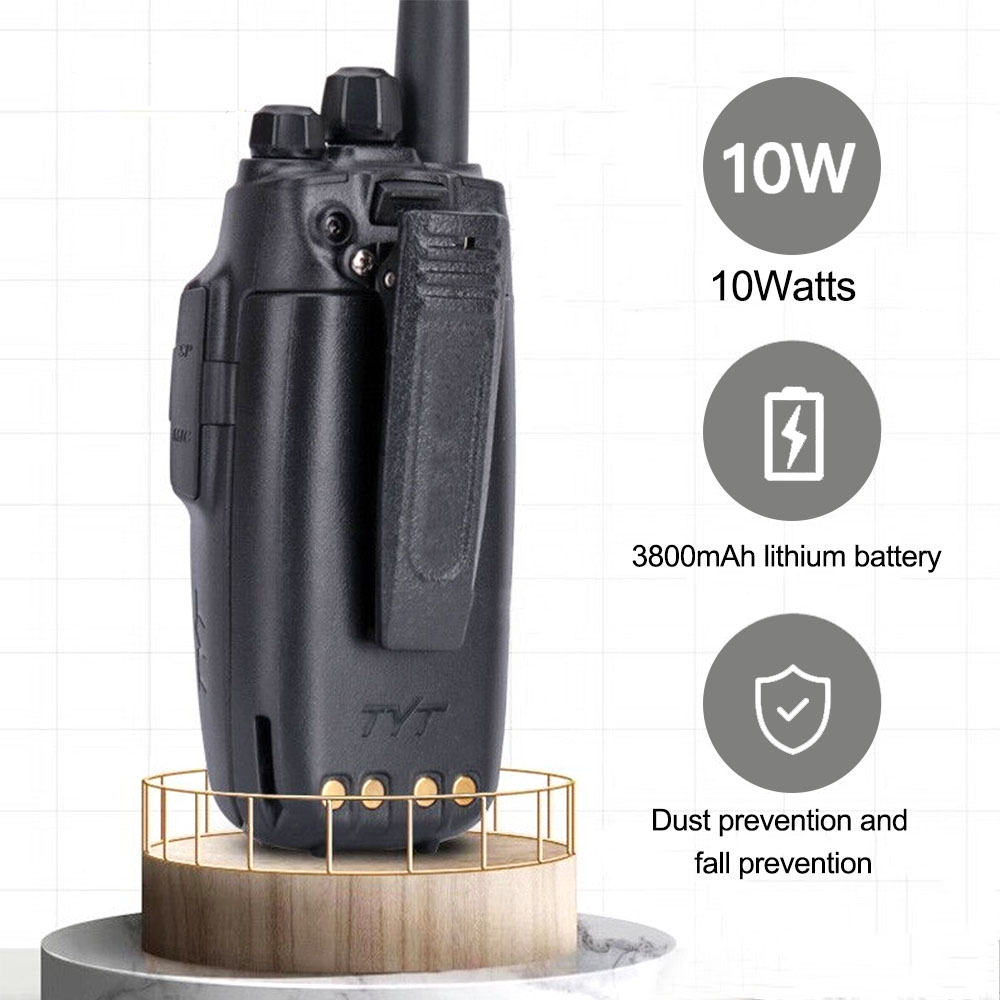

Output power |
10 W |
|
Operating Voltage |
7.2V |
|

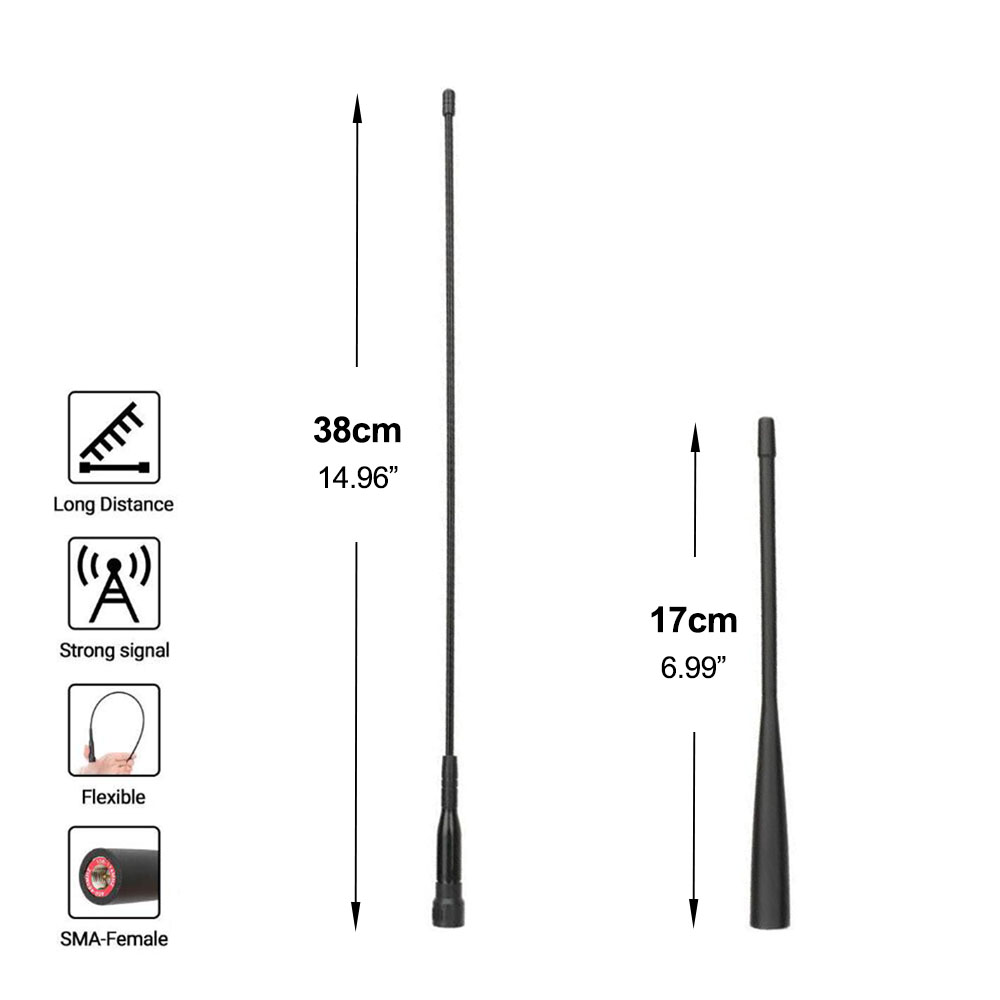

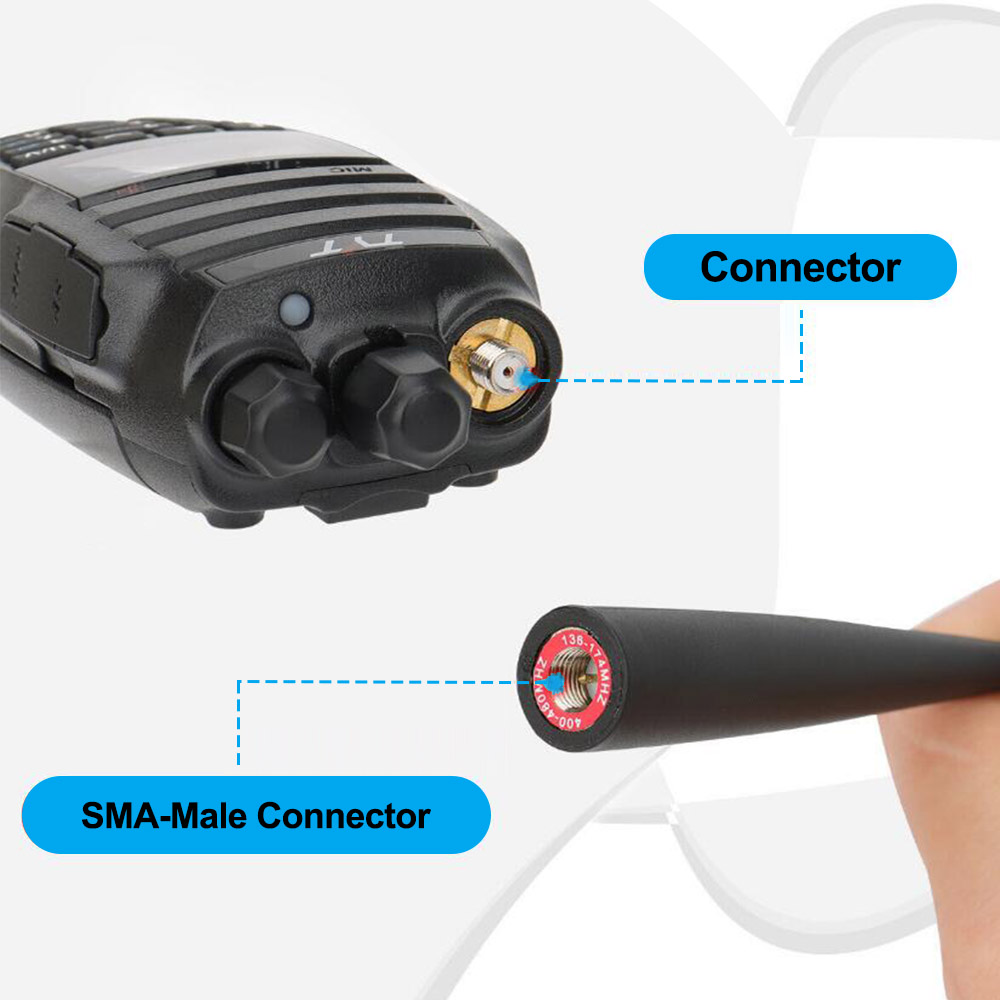

Antenna Impedance |
50 ohm |
|
Working Temperature |
-10ºC~+50ºC |
|

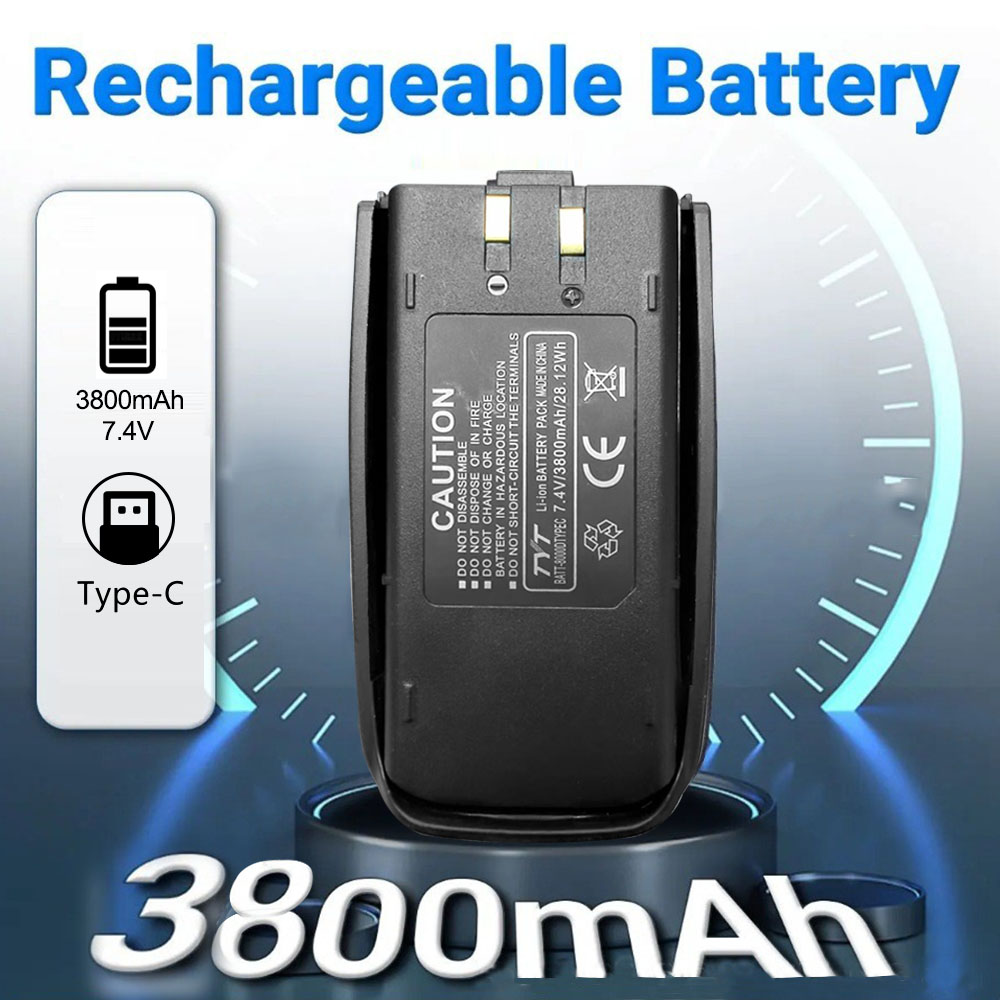

Battery capacity |
3600 mAh |
|
Color |
Black |
|
Dimension(Exclude antenna) |
132x59x36 mm |
|
Weight(Include Battery) |
254 g |
|
Feature |
|
|
CTCSS/DCS |
39 CTCSS/166DCS |
|
Wide/narrow selection |
25kHz/12.5kHz |
|
VOX function |
Yes |
|
CustomSide Buttons |
Yes |
|
Volume adjustment |
Yes |
|
Squelchlevel setting |
Yes |
|
TOT function |
Yes |
|
Scan function |
Yes |
|
Voice prompt (English or Chinese) |
Yes |
|
VoiceOn Off selection |
Yes |
|
Battery Saver function |
Yes |
|
Batteryvoltage indication |
Yes |
|
High/Lowpower selection |
Yes |
|
Voicecompression and expansion |
Yes |
|
Tailelimination function |
Yes |
|
BusyLock function |
Yes |
|
PC Programmable |
Yes |
|
Emergency alarm |
Yes |
|
Auto-whisper |
Yes |
|
Specification |
|
|
Sensitivity |
<=0.2µV |
|
Occupiedbroadband |
<=16kHz |
|
Channel Selectivity |
>=65dB |
|
Audio output power |
>500mW |
|
Inter modulation |
>=55dB |
|
Audio Distortion |
<=5% |
|
Modulation |
16kF¢3E |
|
Currentaccepted |
220mA |
|
Adjust thenoise |
<-40dB |
|
The maximumoffset frequency |
<=±5kHz |
|
Emission current |
<=2600mA |
|
Adjacent Channel Power |
>=65dB |
