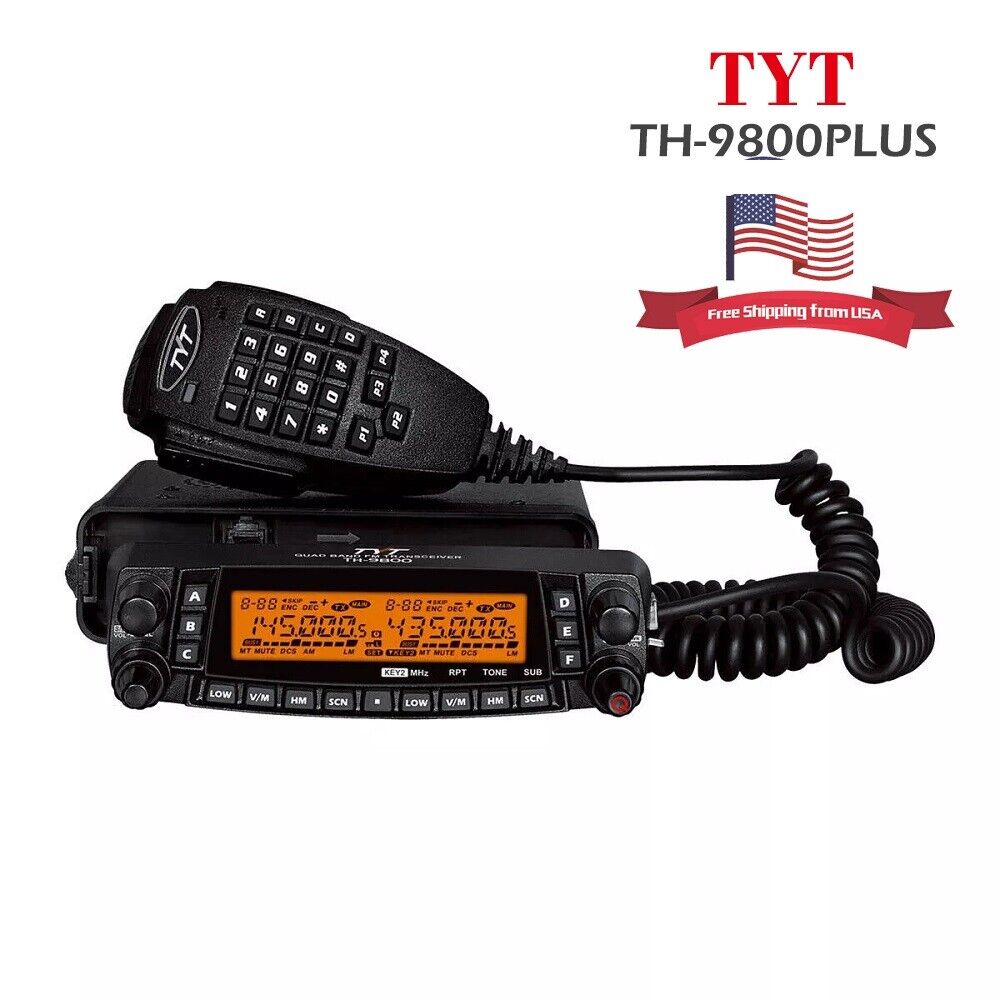

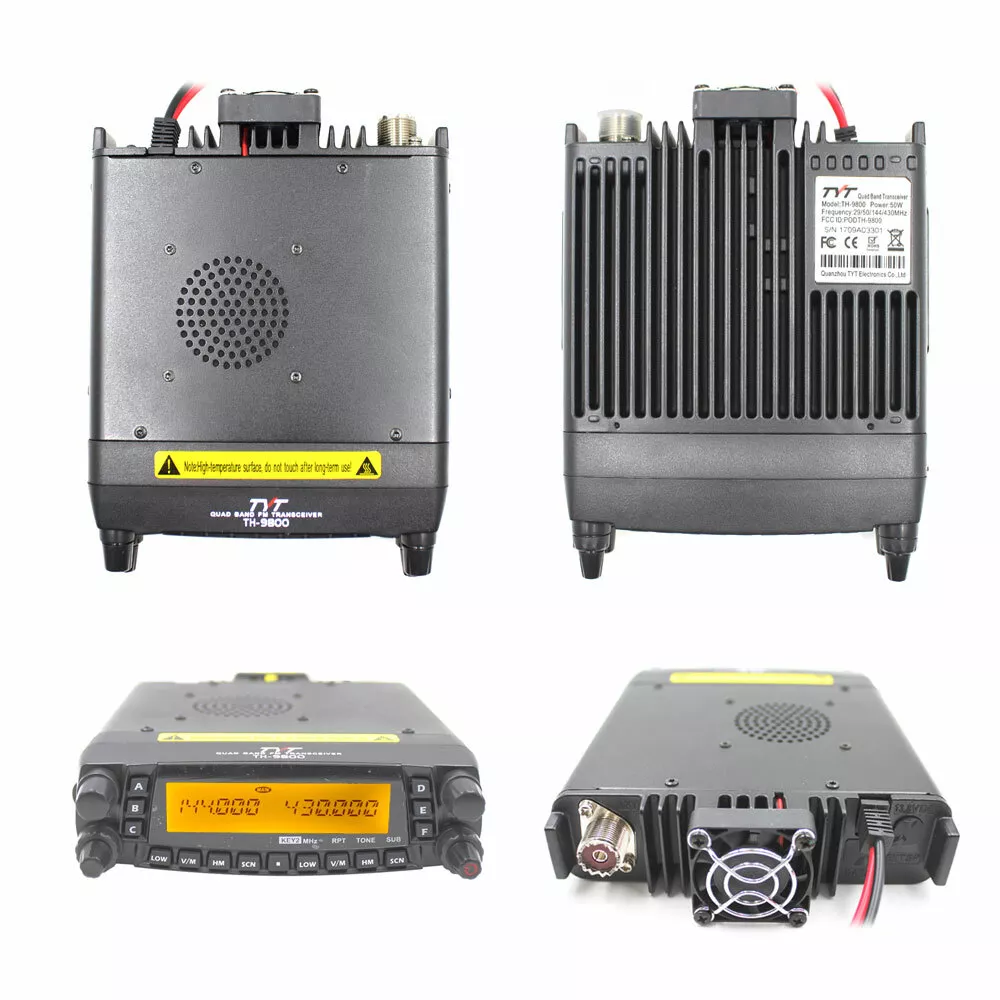

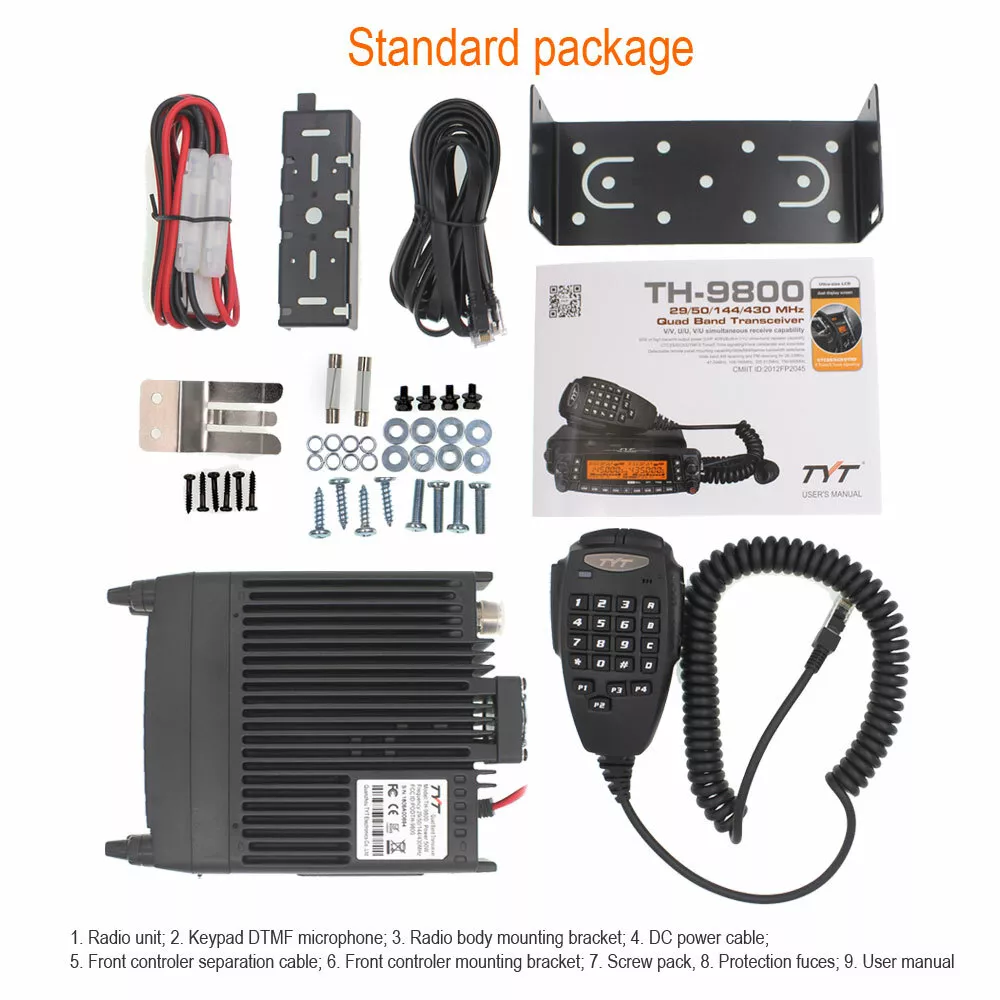

TYT TH-9800 plus 29/50/144/430 MHZ 50W QUAD BAND TRANSCEIVER Mobile Car Radio
NOTE: if you need program software, please contact us.
Main features :
Quad band transmit and receiver
Cross Band Repeat

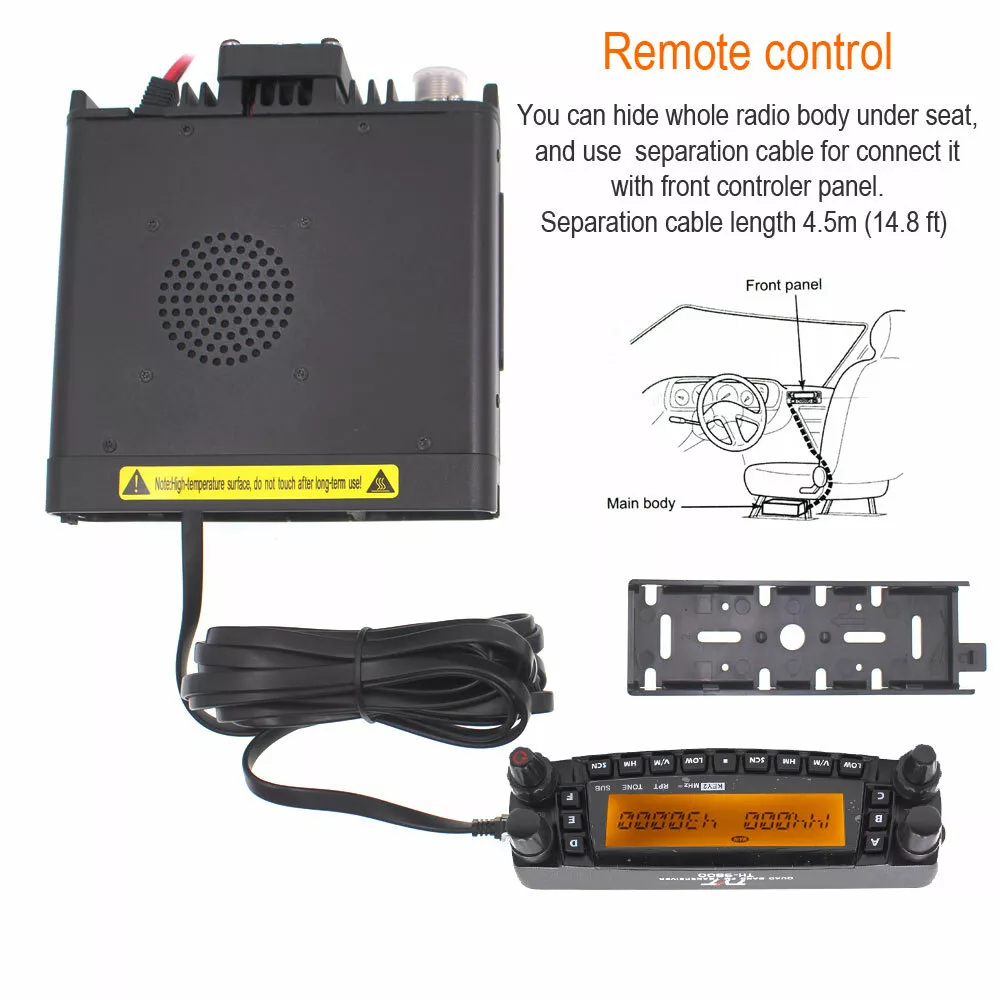

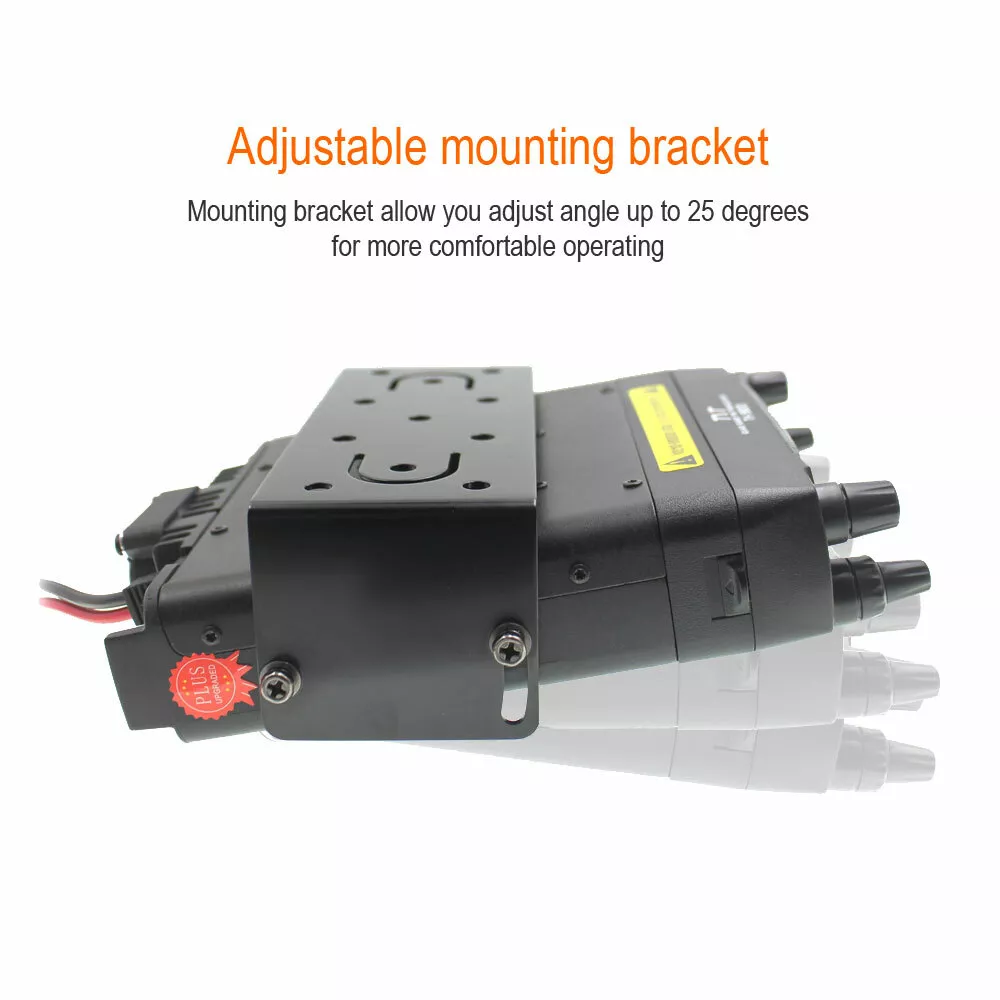

Separately Front Panel
809 Memory Channels

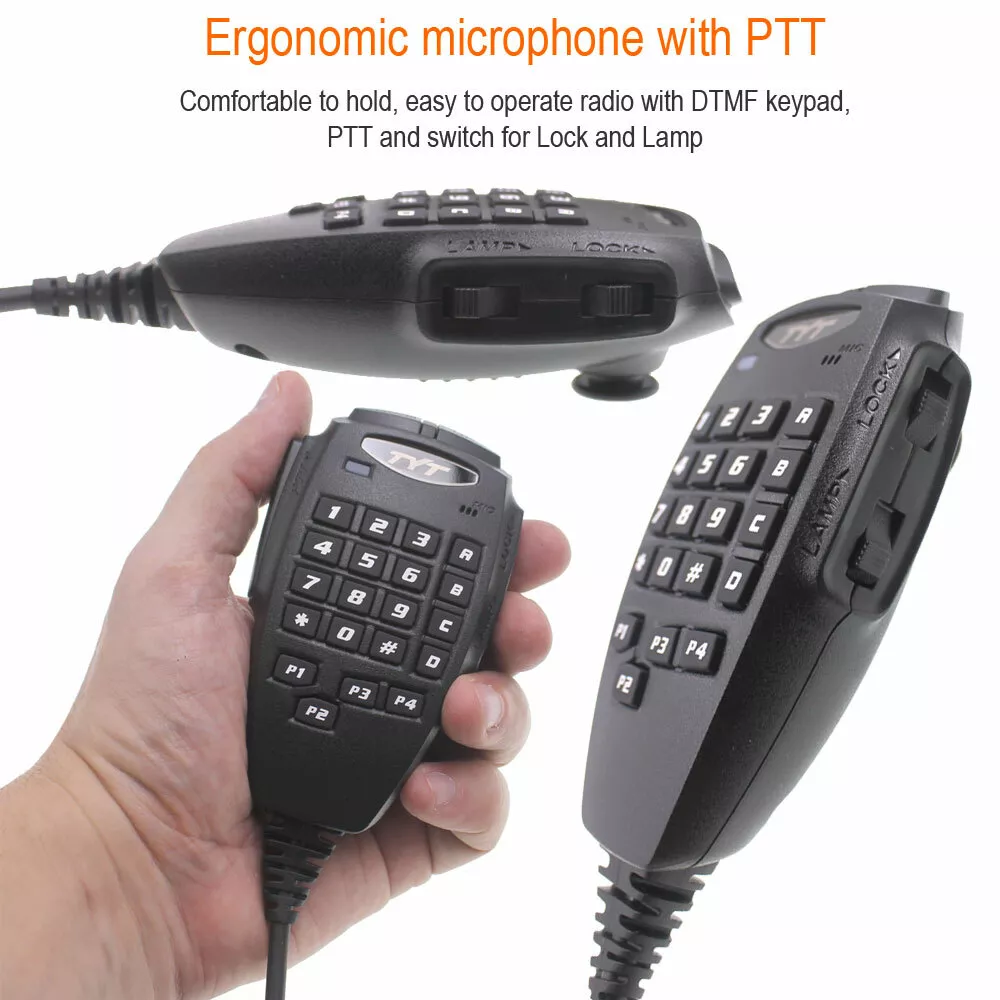

DTMF Microphone
Fm Radio 108-135.995MHz
High/Low Output Power Levels
Reverse Frequency Selection
Dual (V/U) Squelch Set Levels
Dual Repeater Offsets Select-Able
Multi Scanning
Repeater Offset
Keypad Lock Function
Channel Name Editing
Ctcss/Dcs Encode/Decode
|

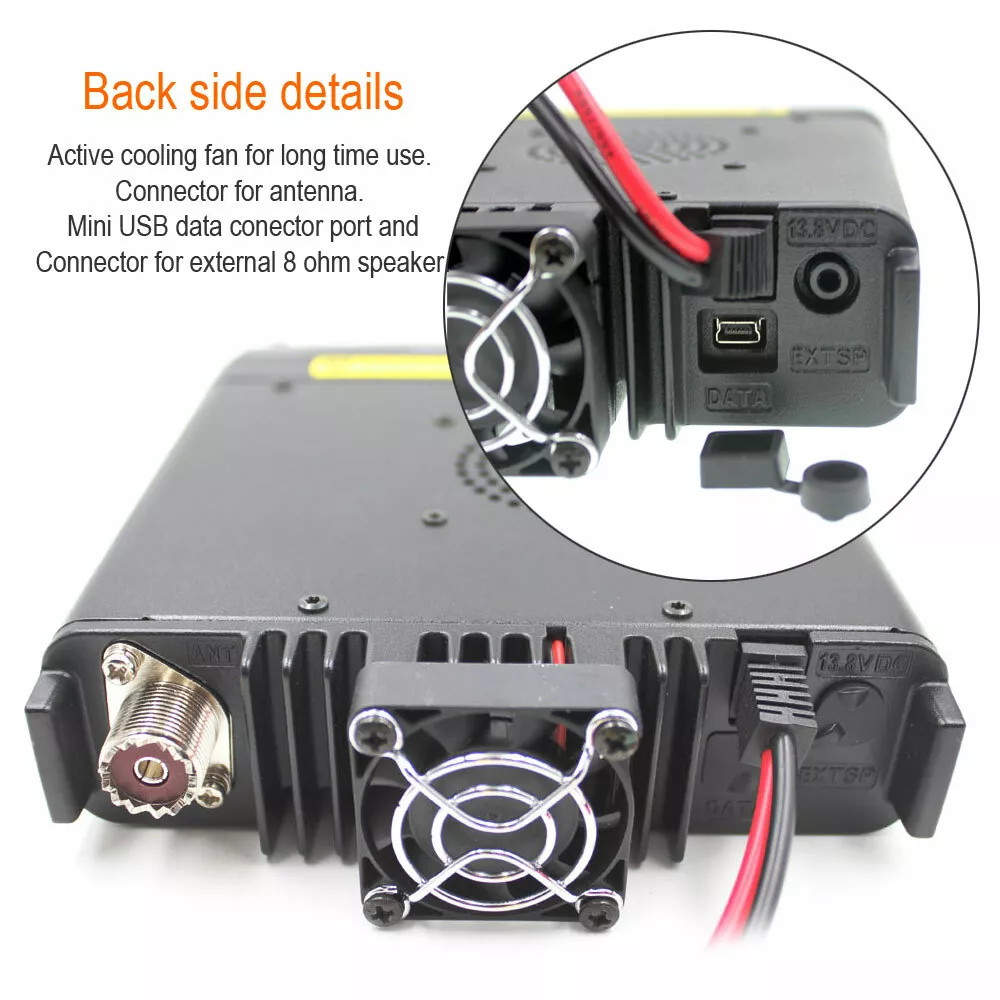

Specification
|
|
Model
|
TH-9800
|
|
Frequency Range
|
RX only:108-135.995mhz,320-512mhz,750-950mhz
(Cellular Blocked)
|
|
TX(FM): 26-33mhz,47-54mhz,144-148MHZ ,420-450MHZ
|
|
Channel Capacity
|
809 Channels
|
|
Channel Spacing
|
2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz
|
|
Modes of emission
|
F3
|
|
Antenna Impedance
|
50 Ohms,unbalanced (Antenna Duplexer built-in)
|
|
Frequency Stability
|
±5PPM@-140℉~+140℉(-10℃～+60℃)
|
|
Operating Voltage
|
-4℉~+140℉(-20℃～+60℃)
|
|
Operating Temperature Range
|
13.8VDC (±15%),Negative ground
|
|
Current Consumption(Approx)
|
RX:0.5A(Squelched)
|
|
TX:8.0A(50/430MHZ),8.5A(29/144MHZ)
|
|
Case size（W×H×D）
|
140*41.5*168 mm (w/o knobs & connectors)
|
|
Weight
|
1.2kg
|
|
Transmitter
|
|
output power
|
50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ)
|
|
Modulation Type
|
Variable Reactance
|
|
Maximum Deviation
|
Better than -60dB(29MHZ: Better than -50dB)
|
|
Modulation Distortion
|
Less than 3%
|
|
Microphone Impedance
|
2kΩ
|
|
Receiver
|
|
Circuit Type
|
Double-conversion super-heterodyne
|
|
Intermediate Frequency
|
49.95MHz/450KHz (left band)
|
|
38.85MHz/450KHz (right band)
|
|
Sensitivity (for 12dB SINAD)
|
Better than 0.2μV
|
|
Squelch Sensitivity
|
Better than 0.16μV
|
|
Selectivity(-6dB/-60dB)
|
12KHz/30 KHz
|
|
Maximum AF output
|
2W@8Ω for 5% THD
|
|
AF output Impedance
|
4-16Ω
|
|
