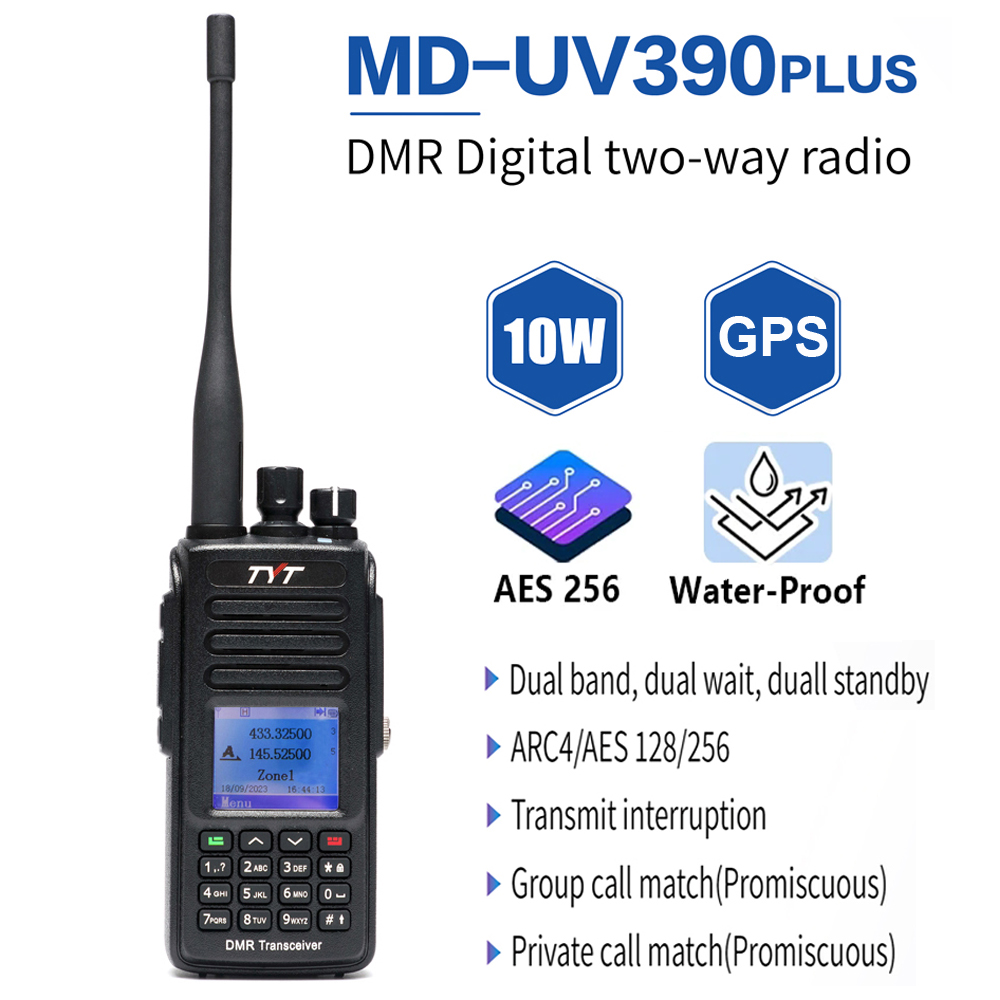

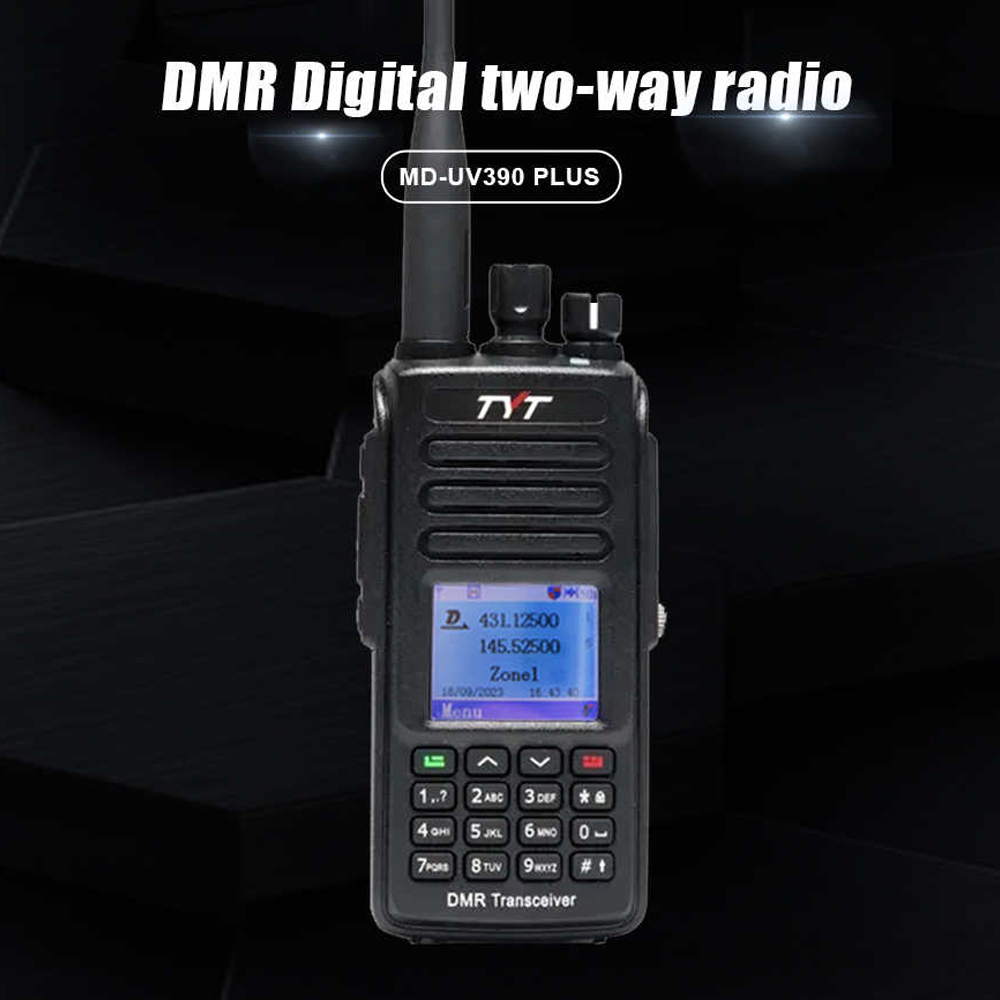

TYT MD-UV390Plus With GPS 10W DMR Digital Radio AES256 Encryption IP67 Waterproof Dual Band Walkie Talkie Upgrde of MD-UV390
Note: if you need software, please contact us.
Factory 100% original product, please don't to FLASH the machine privately, because the version of each machine is different.
Main Functions
Time-Division Multiple-Access(TDMA) digital function
Compatible with other brand Tier I and II
Comply with digital protocol ETSI TS 102 361-1,-2,-3
IP67 waterproof

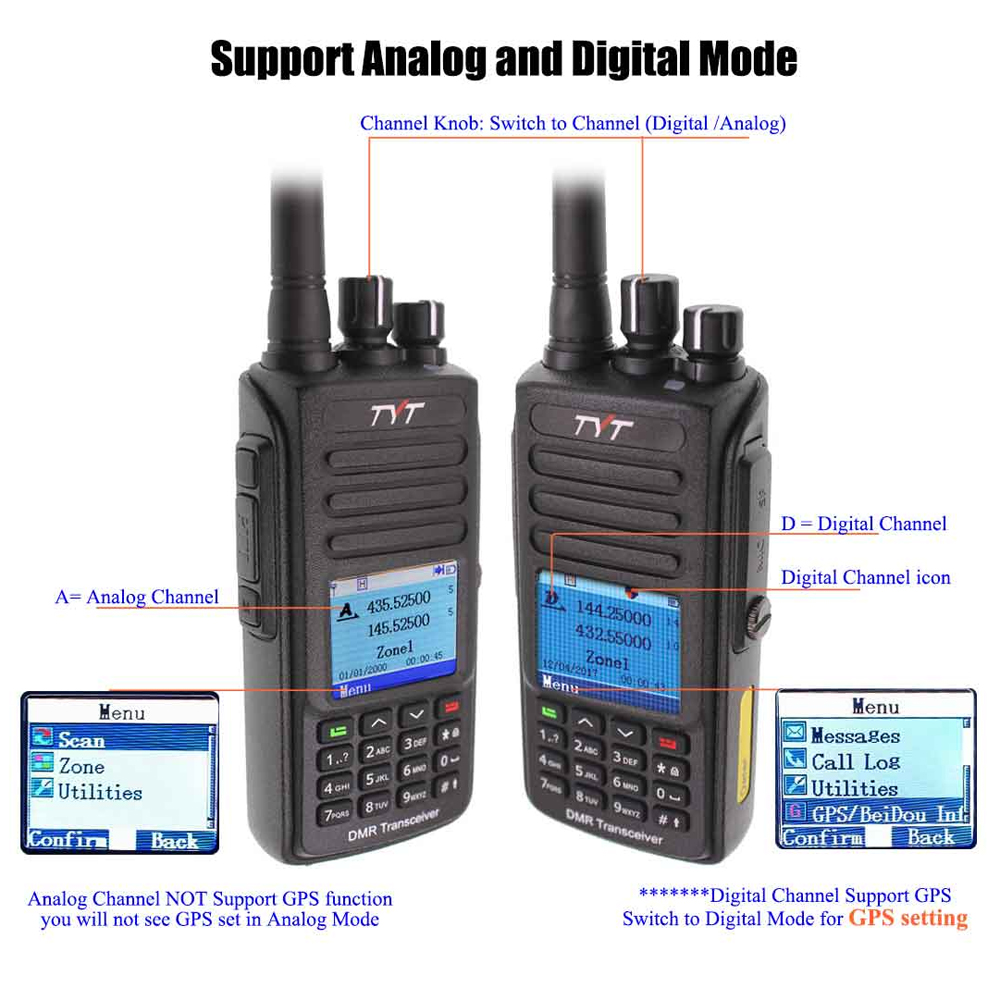

Analog and digital combined
Dual band,dual display,dual standby
Up to 3000 channels
10000 contacts
Color LCD display
Transmit interruption
Group call match(Promiscuous)
Private call match(Promiscuous)
Dual time slot for repeater
Dual time slot for point to point
Lone worker

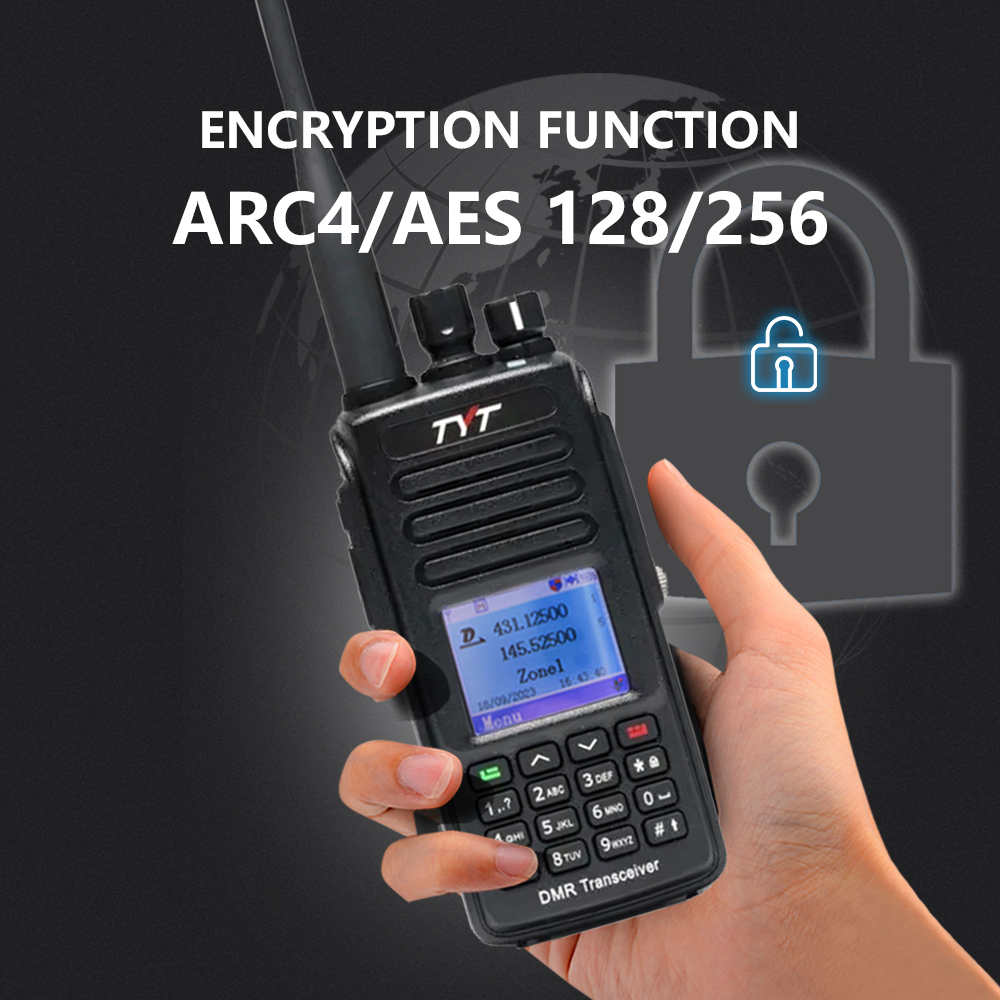

Encryption function
Single call,group call,all call
Remote kill/stun and activate
8 hours of recording
Message function
CTCSS/DCS
Programmable functional keys
|
Item number |
MD-UV390plus |
|
General |
|
|
FrequencyRange |
136-174Mhz &400-480MHz |
|
Channel No. |
3000 |
|
Antenna impedance |
50Ω |
|
Operating Voltage |
7.4 V DC |
|
Operating Temperature |
-30°C~+60°C |
|

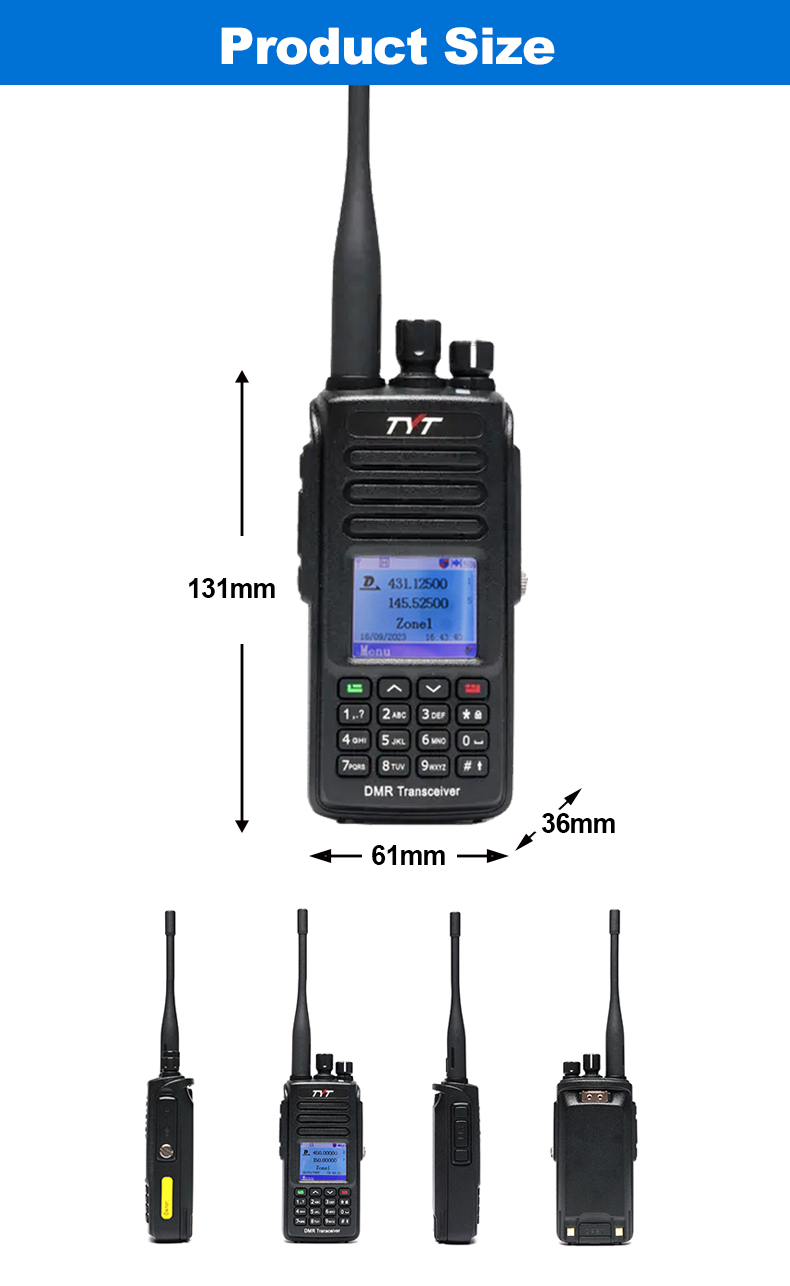

Dimension(W x H x D) |
131x61x36mm |
|
Battery |

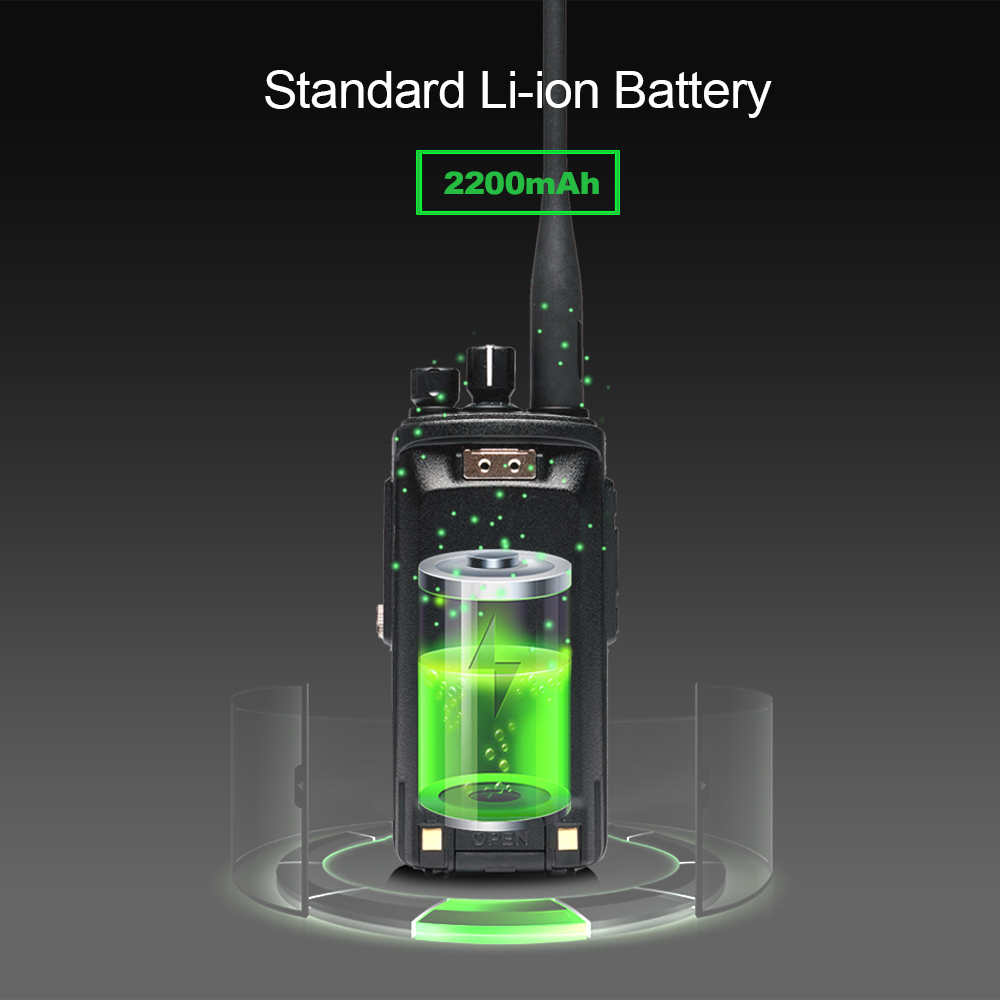

2200mAh Li-ion |
|
Transmitter |
|
|
Output power |

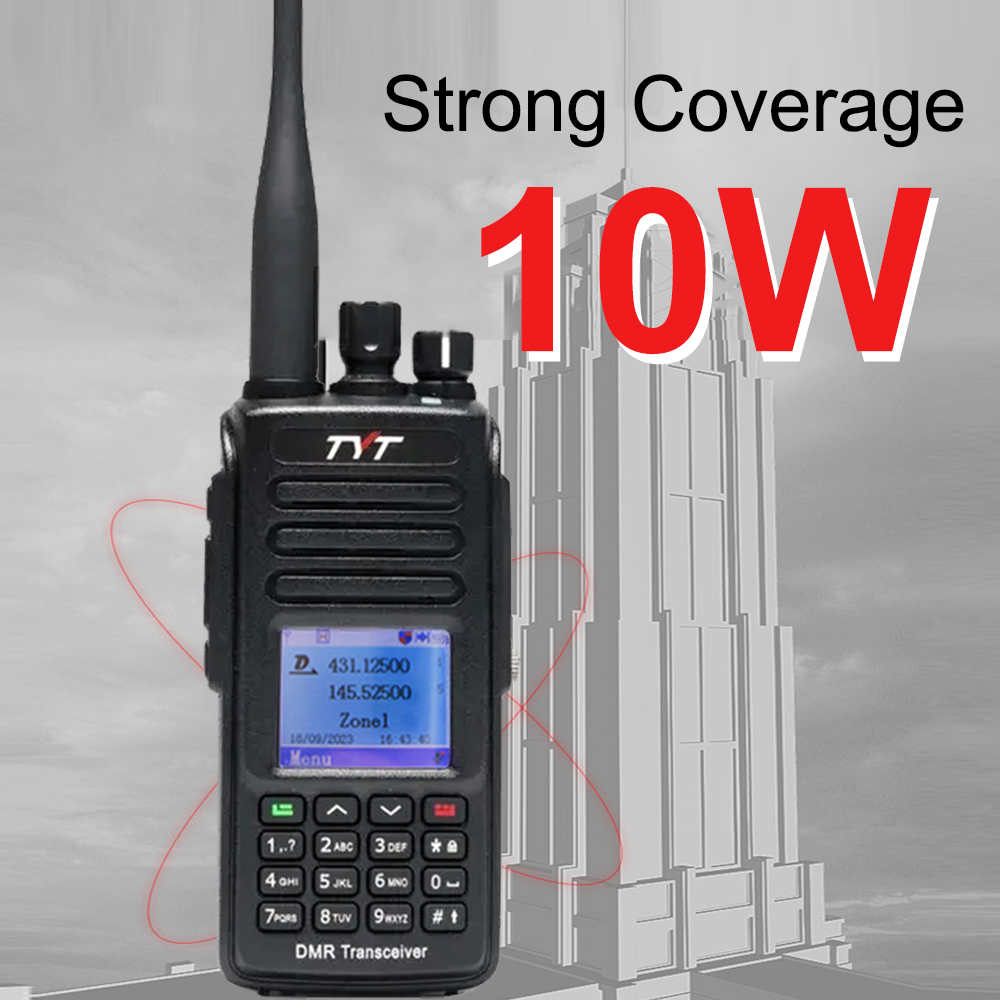

≤10W(H) ≤1W(L) |
|
Vocoder type |
TDMA |
|
Frequency Stability |
± 1.0 PPM |
|
Adjacent channel power |
≤-60dB |
|
Spurious Radiation |
Antenna:9KHz-1GHz ,≤ -36dBm 1GHz-12.75GHz ,≤-30dBm |
|
Hum and noise |
-40dB *12.5KHz |
|
4 FSK Digital Mode |
12.5KHz(data only):7k60FXD 12.5KHz(data+voice)7k60FXE |
|
Receiver |
|
|
Digital sensitivity |
0.25uV (BER 5%) |
|
Audio power |
1W |
|
Autio response |
=1dB-3dB |
|
Adjacent Channel Selectivity |
≤-60dB *12.5KHz |

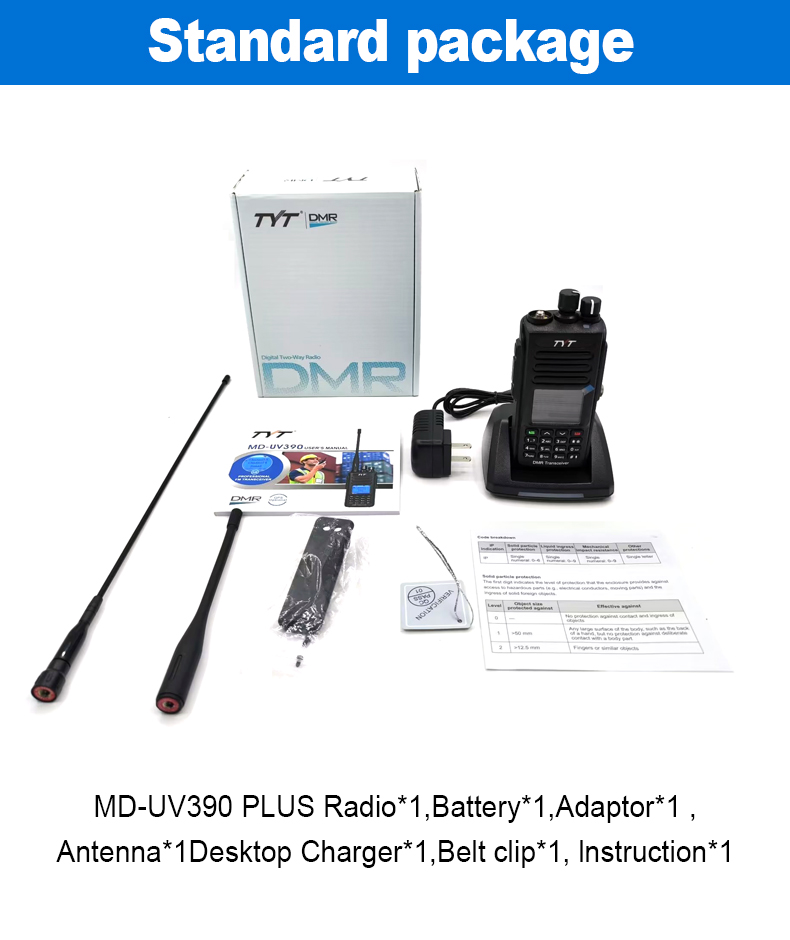

Standard package
1 x MD-UV390 with GPS Radio
1 x Li-Ion Battery
2 x Antenna
1 x Charger
1 x Belt clip
1 x Manual
Or 1 x USB programming cable
