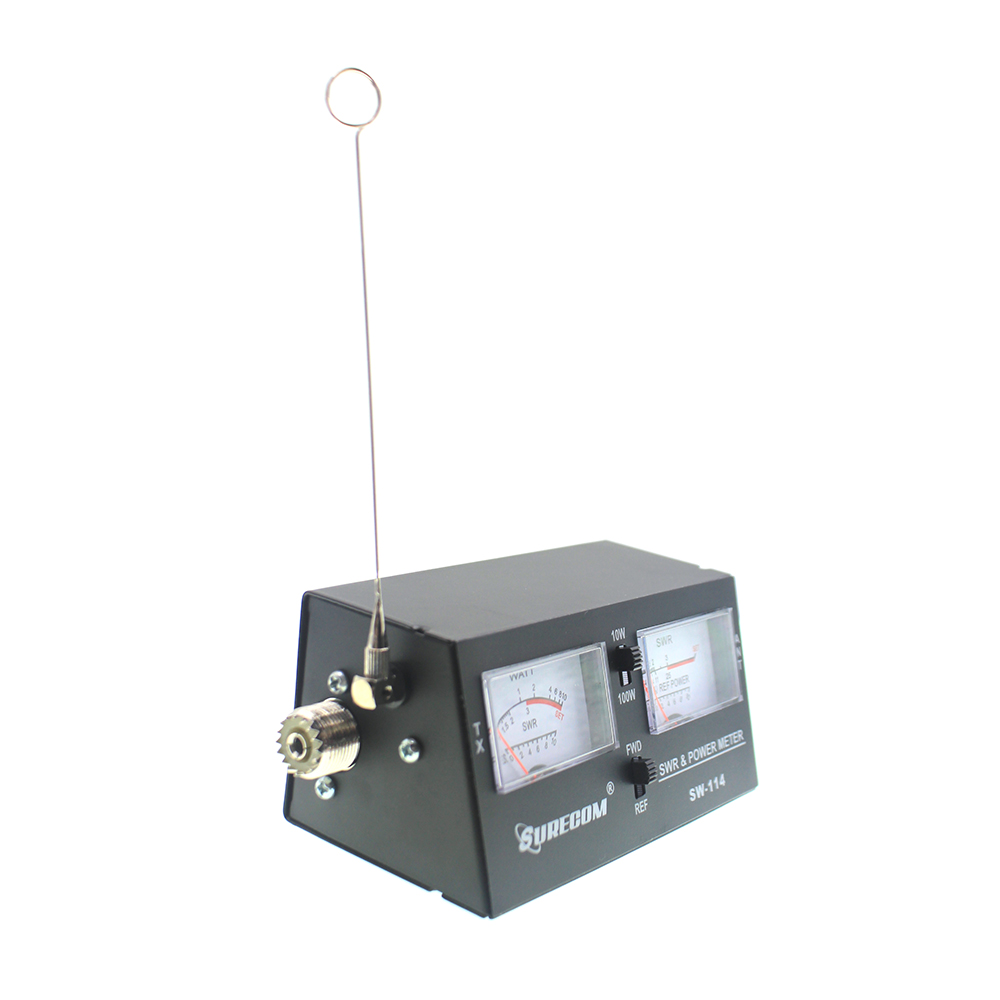

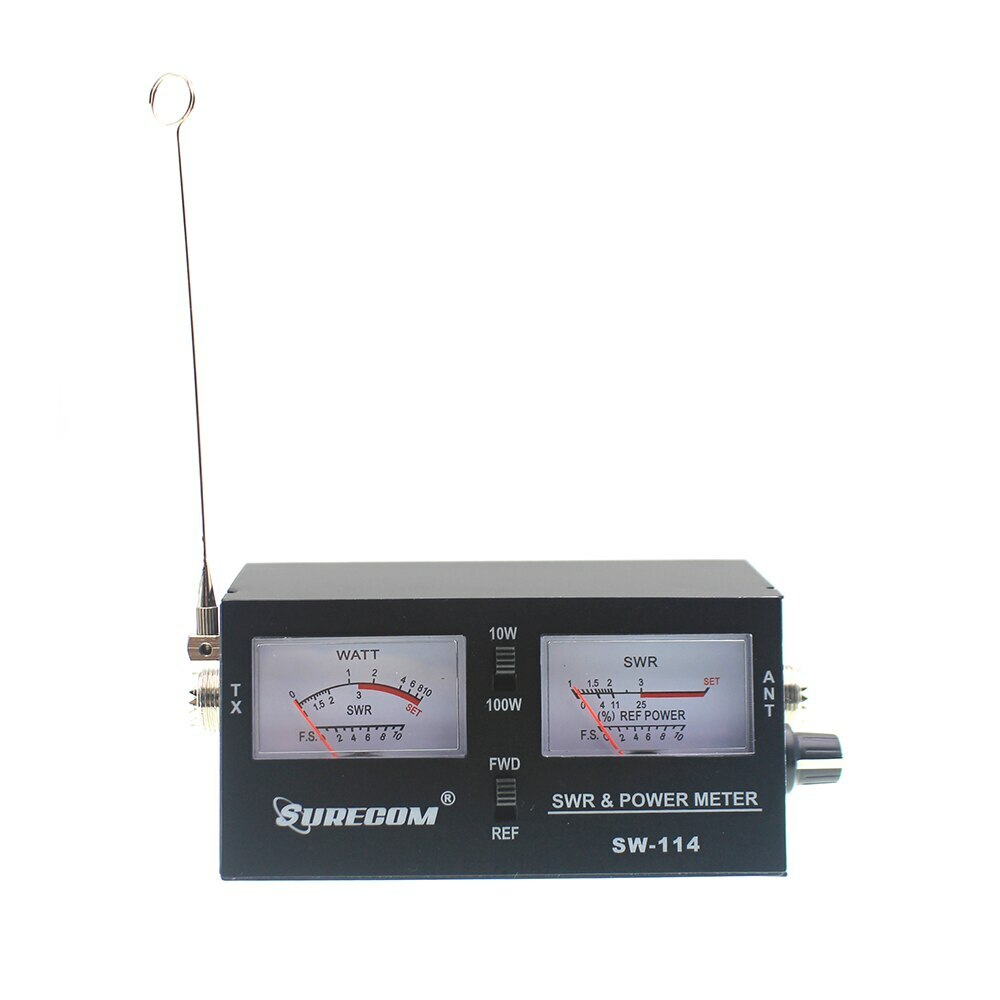

Surecom SW-114 SWR/RF/Field Strength Test Power Meter
for Relative Power 3 Function Analog with Field Strength Antenna
Description:
MODEL 15PSM114 test instrument is a compact 3-function test meter designed to indicate the condition of any 52 ohm antenna and antenna coax used for Citizens Band radio operation by testing for Standing Wave Ratio, relative RF power, or field strength. Tuning of transmitters can also be accomplished when using this meter as a field strength meter. Also, comparing antennas can be accomplished with this meter. It is designed to be used for base stations or mobile operations and can be permanently installed in the antenna system without any measurable loss of power.
Specification:
- Frequency : 27mhz
- SWR :1:1 to 3:1
- RF Power : 0-10WATT / 0-100WATT

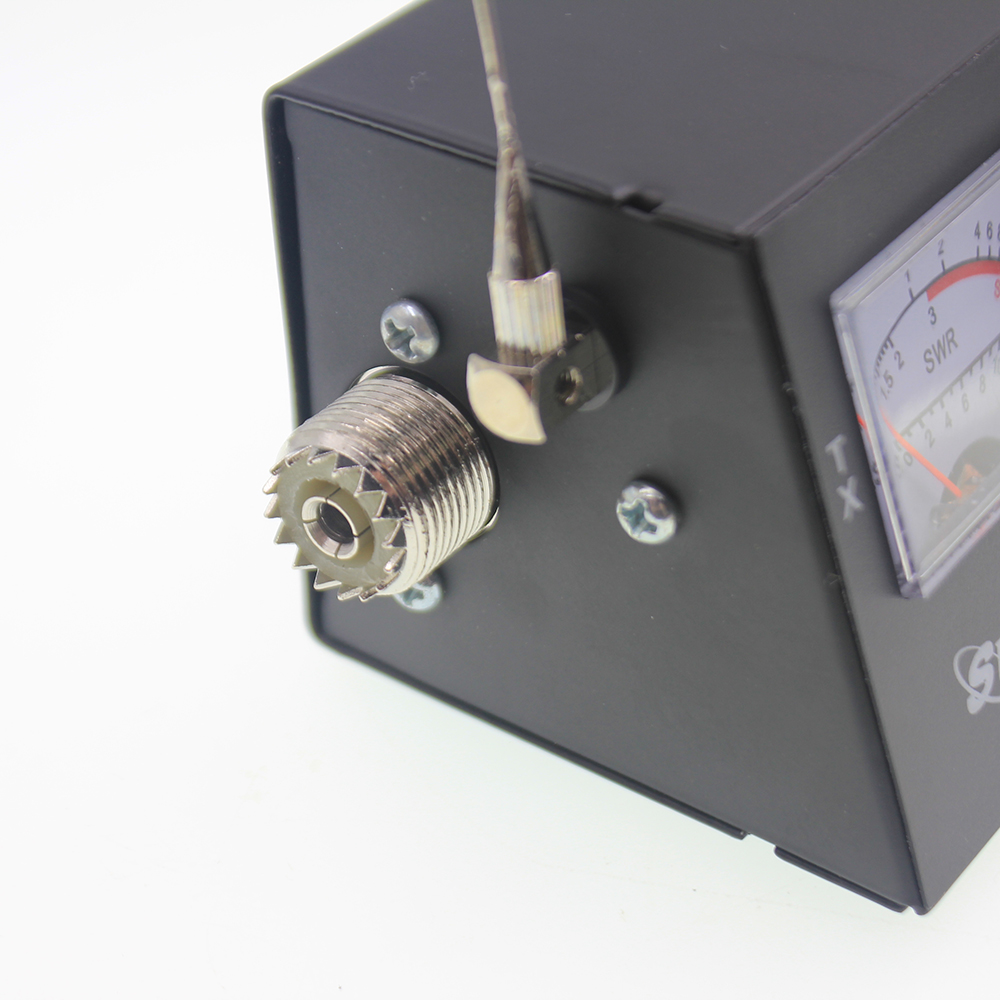

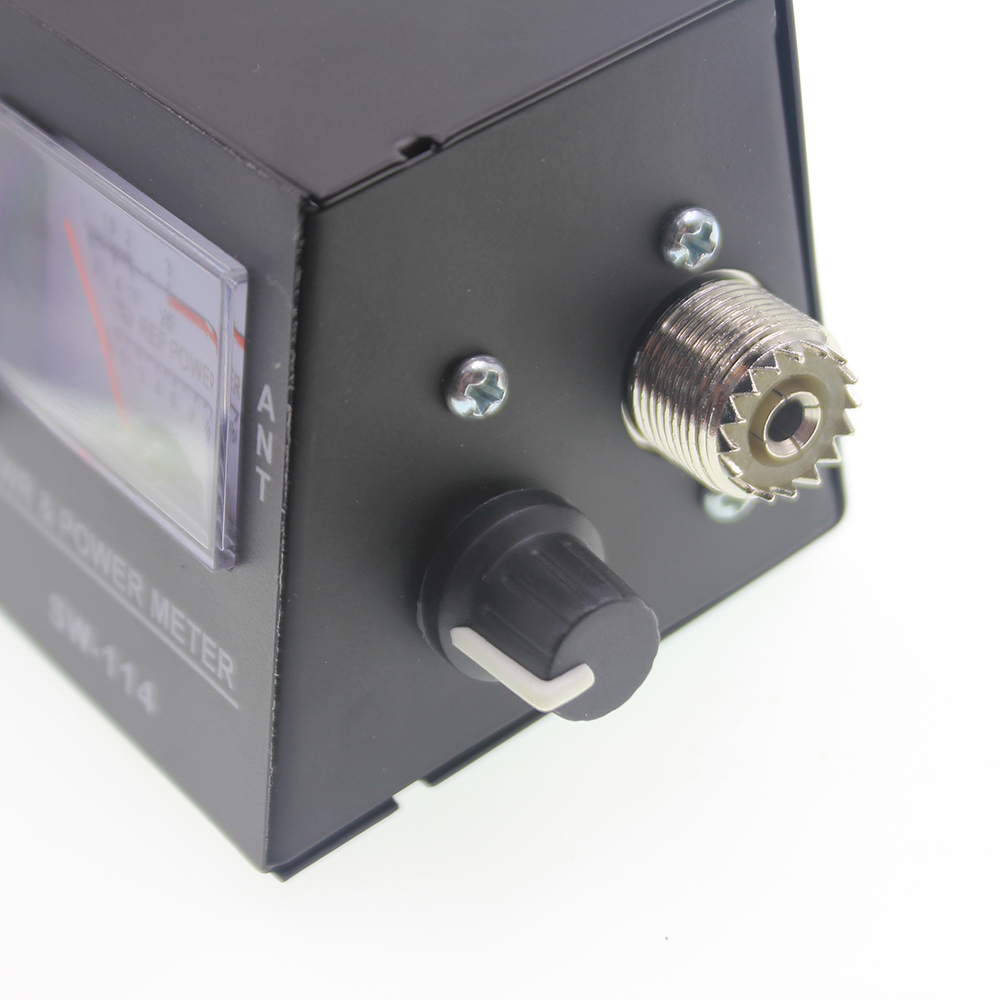

- Connector : SO239
- Impedance : 52 ohms
- Item Weight 410g
- Product Dimensions 120(W) X 60(H) X 65(D)mm

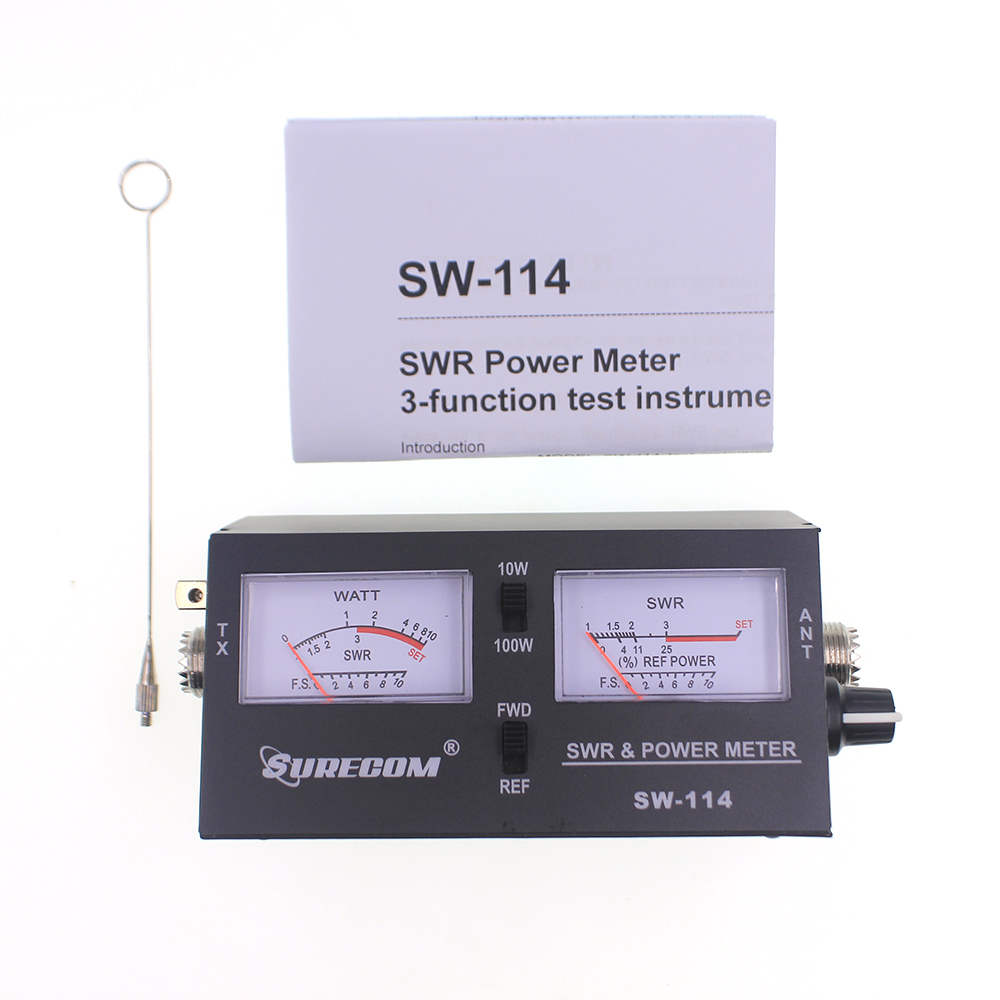

Package includes:
1 x SURECOM SW-114 SWR /POWER METER
1 x Field strength Antenna
1 x English Manual
