Description

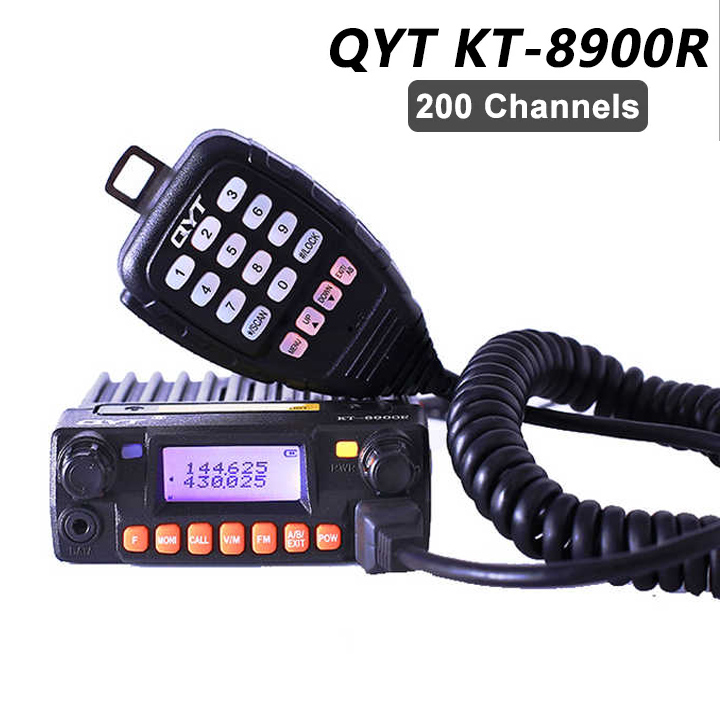

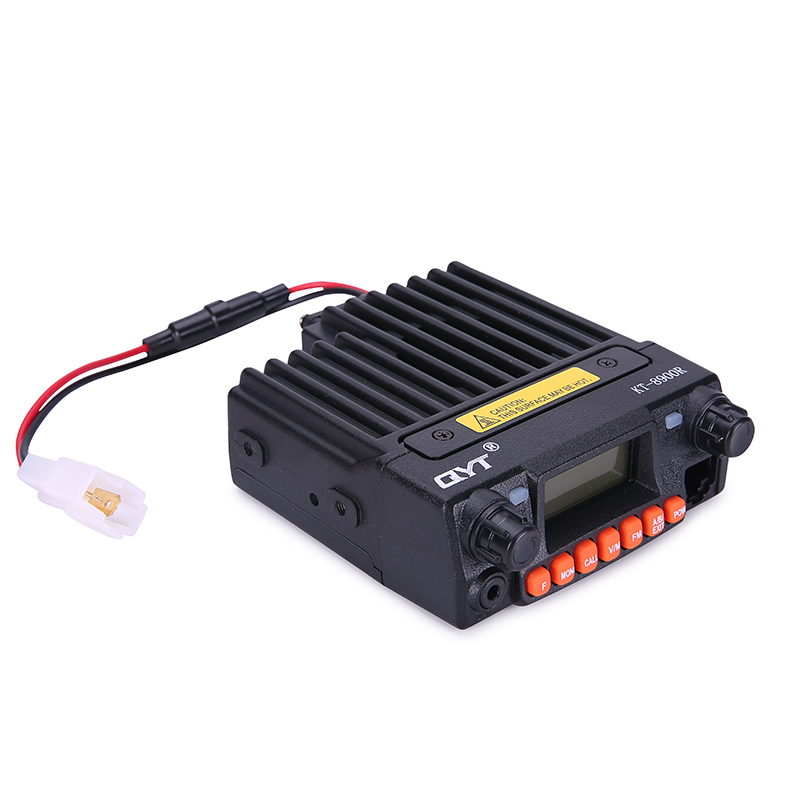

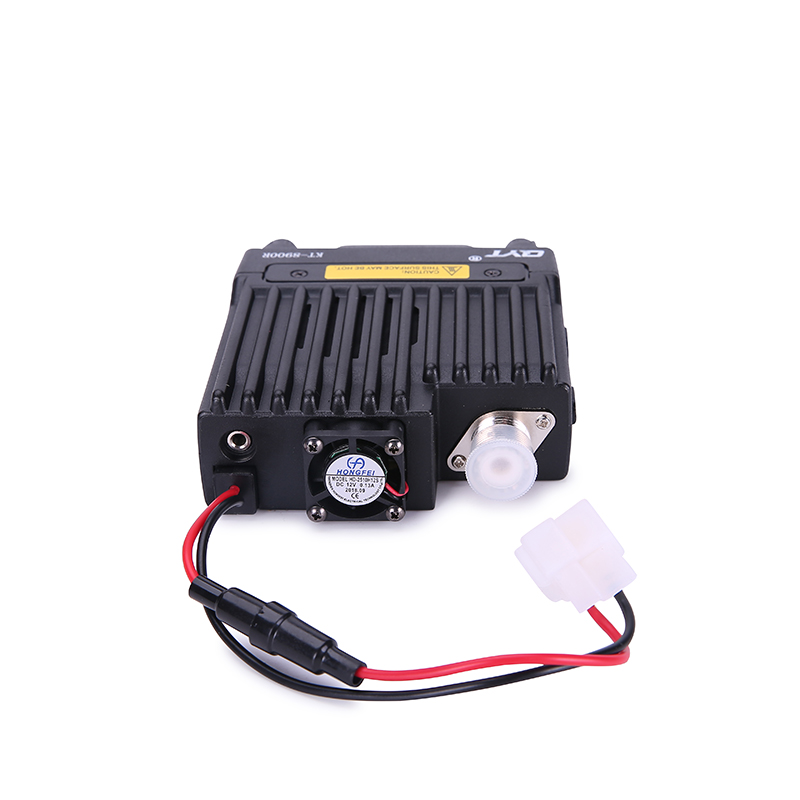

QYT KT-8900R High power 25W Tri Band Radio 136~174MHz &240-260MHz& 400~480MHz Car Walkie Talkie
Note: if you need the software, please contact us.
Product features :
1. KT -8900 QYT enhanced version
2. Tri - band VHF: 136-174 MHz, 240-260 MHz UHF : 400-480 MHz, FM: 76-108.900 Mhz
3. Comes with 2-Tone , 5-Tone , DTMF Functions
4. dual display , dual standby
6. Mini compact size , dimensions : 98 ( w ) x 35 ( h ) x 118 ( d ) mm
7. RF output power : 25 W / 20 W (VHF / UHF)
1 x Microphone
1 x Car Power Cable
1 x Fuse
1 x Mounting bracket
1 x Screw Sets
1 x User manual
1. KT -8900 QYT enhanced version
2. Tri - band VHF: 136-174 MHz, 240-260 MHz UHF : 400-480 MHz, FM: 76-108.900 Mhz
3. Comes with 2-Tone , 5-Tone , DTMF Functions
4. dual display , dual standby
6. Mini compact size , dimensions : 98 ( w ) x 35 ( h ) x 118 ( d ) mm
7. RF output power : 25 W / 20 W (VHF / UHF)
| Item number | KT8900R |
| General | |
| Frequency Range | VHF:136-174MHz 240-260MHz UHF:400-480MHz |
| Number of Channel | 200 |
| Channel Spacing | 25KHz 20K 12.5 |
| Phase lock step | 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
| Working Voltage | 13.8V DC±15% |
| Squelch way | CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20~+60 |
| Dimension(W x H x D) | 98(W) x 35(H) x 118(D)mm |
| Weight | 408g |
| Receiver | ||
| Broadband | Narrow band | |
| Sensitivity | ≤ 0.25μV | ≤ 0.35μV |
| Channel choice | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio output power | ≥2W@10% | |
| Transmitter | ||
| Broadband | Narrow band | |
| Output power | 25W/20W(VHF/UHF) | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60B |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Audio distortion | ≤5% |
|

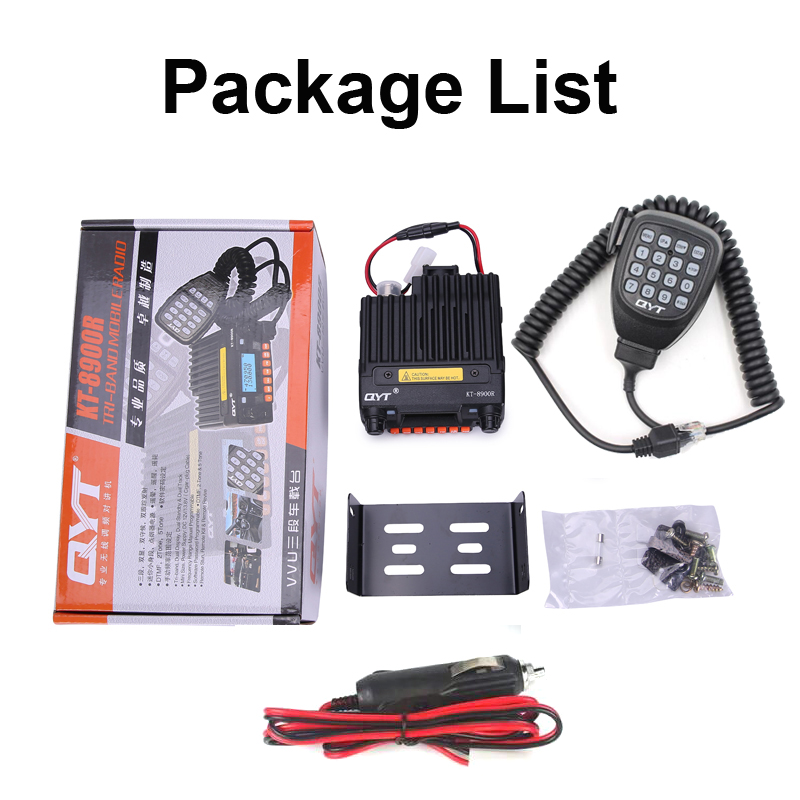

Package contains:
1 x KT-8900R Mini Tri -Band mobile radio transceiver1 x Microphone
1 x Car Power Cable
1 x Fuse
1 x Mounting bracket
1 x Screw Sets
1 x User manual
