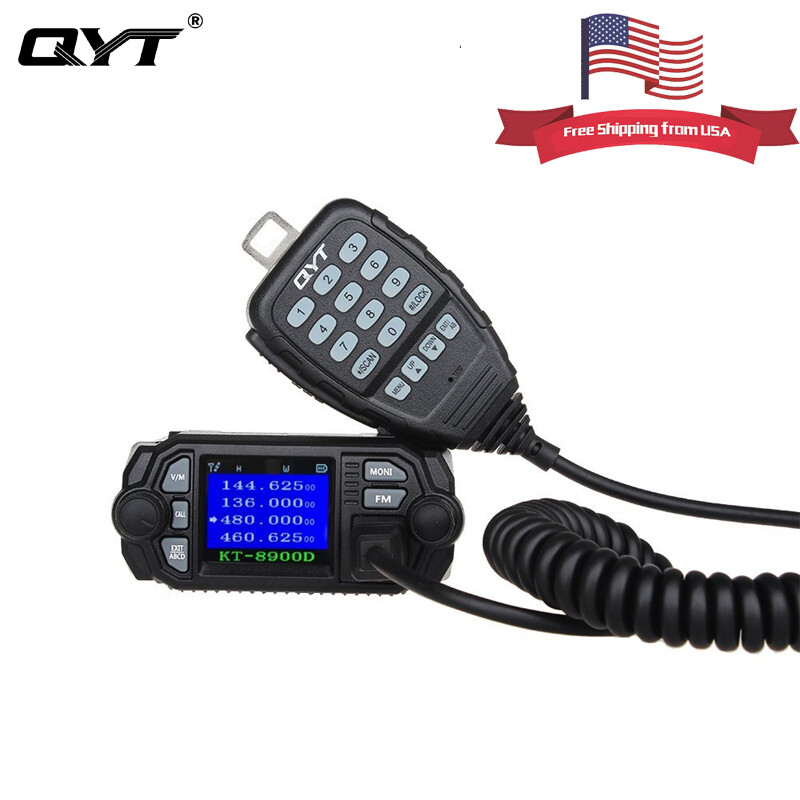

KT-8900D Dual Band TX & RX 136-174MHz & 400-480MHz, Quad-standby 25W 200 Channels Colorful Screen mini mobile FM Radio
Features:
Dual Band,Quad-standby
25W Output Power
External speaker/PTT
Mini Size
PC Program
Remote Stun,Remote Activate,Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Repeater Function
Long-distance Communication
FM Radio
Alarm Function
Monitor
Specifications:
|
Item number |
KT-8900D |
|
General |
|
|
Frequency Range |
VHF:136-174MHz UHF:400-480MHz |
|
Number of Channel |
200 |
|
Channel Spacing |
25KHz 20KHz 12.5KHz |
|
Phase lock step |
5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
|
Working Voltage |
13.8V DC±15% |
|
Squelch way |
CTCSS/DCS/5Tone/2Tone/DTMF |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20c~+60c |
|
Dimension(W x H x D) |
103(W) x 47(H) x 126(D)mm |
|
Weight |
448g |
|
Receiver |
||
|
|
Broadband |
Narrow band |
|
Sensitivity |
≤ 0.25μV |
≤ 0.35μV |
|
Channel choice |
≥70dB |
≥60dB |
|
Intermodulation |
≥65dB |
≥60dB |
|
Spurious Rejection |
≥70dB |
≥70dB |
|
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
|
Signal to noise ratio |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio output power |
≥2W |
|
|
Transmitter |
||
|
|
Broadband |
Narrow band |
|
Output power |
25W/20W(VHF/UHF) |
|
|
Modulation Mode |
16KΦF3E |
11KΦF3E |
|
Channel Power |
≥70dB |
≥60B |
|
Signal to noise ratio |
≥40dB |
≥36dB |
|
Parasitic harmonic |
≥60dB |
≥60dB |
|
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
|
Audio distortion |
≤5% |
|
Each Set Package Contain:
1× KT-8900D Dual Band Mini Mobile Radio
1× Microphone
1× Car Power Cable
1× Clip for Speaker Microphone
1× Mounting Bracket
1× Screw Sets
1 × User Manual
