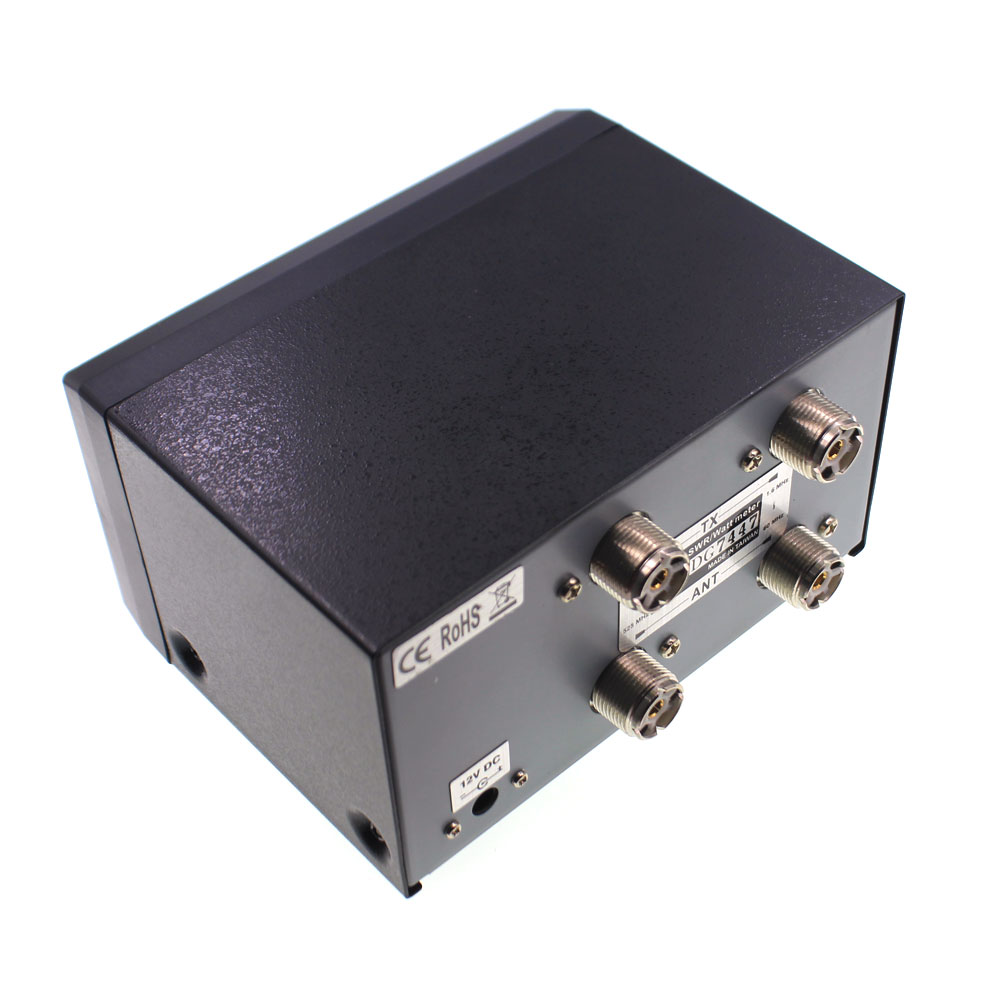

Original NISSEI DG-503 1.6-525 Mhz short wave UV standing wave power meter SWR meter Digital power meter
PRODUCT DESCIPTION:
DG-503 is a highly accurate" DIGITAL RF POWER METER".

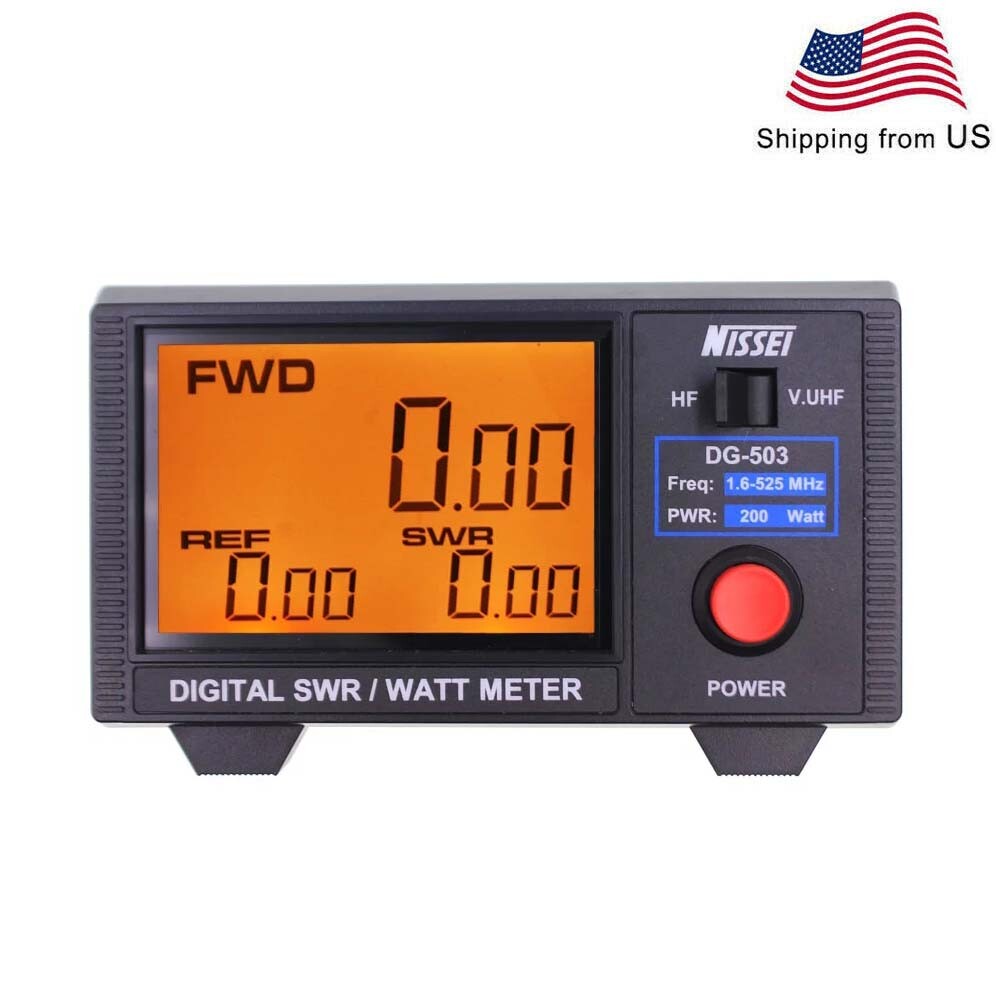

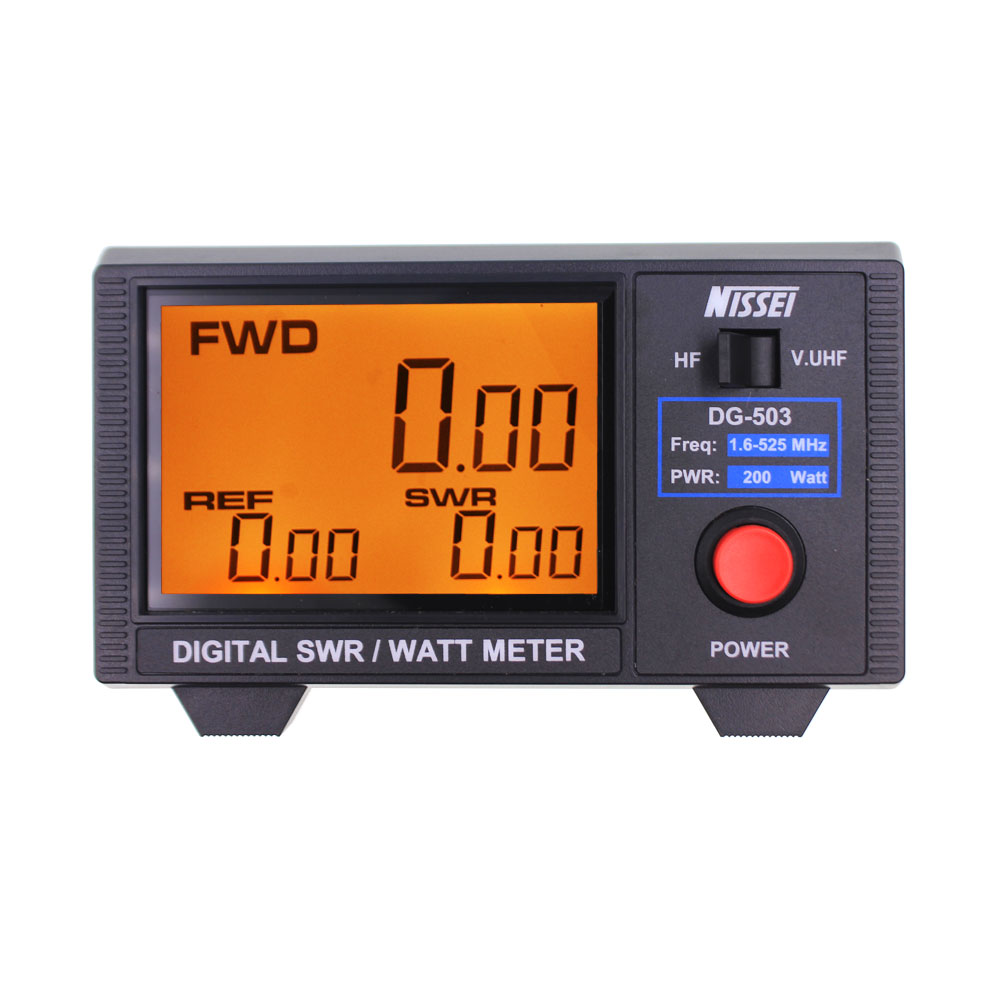

1. 3.5 inch LCD digital display
2. LCD backlight is convenient for users to read
3. at the same time show [forward wave] [reflected wave] [in Bobbi]

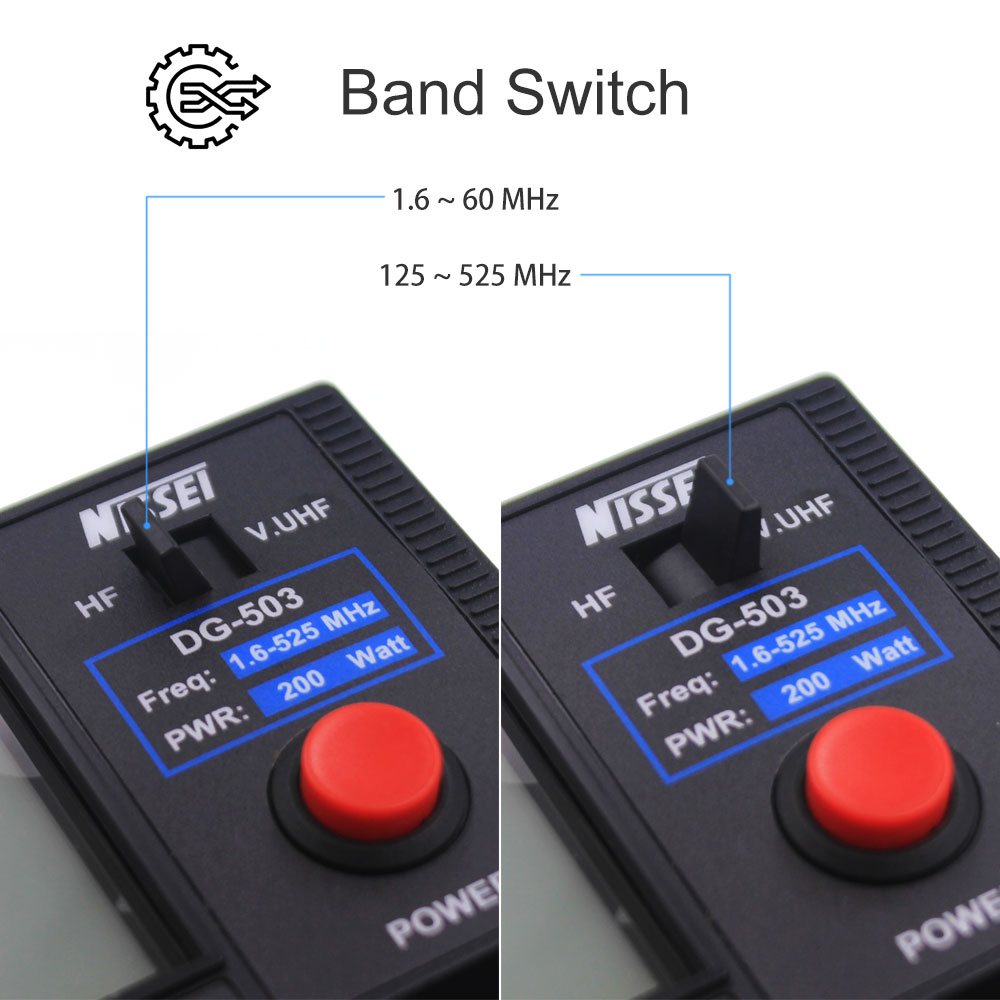

4. HF/VHF, UHF switching key
5. equipped with 13.8V DC power line
6. Measurement (Analog mode) : CW, FM, FDMA
--------------------------------------------------------------------------------
Frequency range: 1.6-60MHz/125-525MHz
Frequency correction point: 14 MHz/ 50MHz/ 145MHz/ 435 MHz
Use function: 0-200W
Test function: forward / reflective power / Bobbi
Precision: (+/-5%)
SWR minimum test power: 1W
Loss: <0.1dB
Impedance: 50 Omega

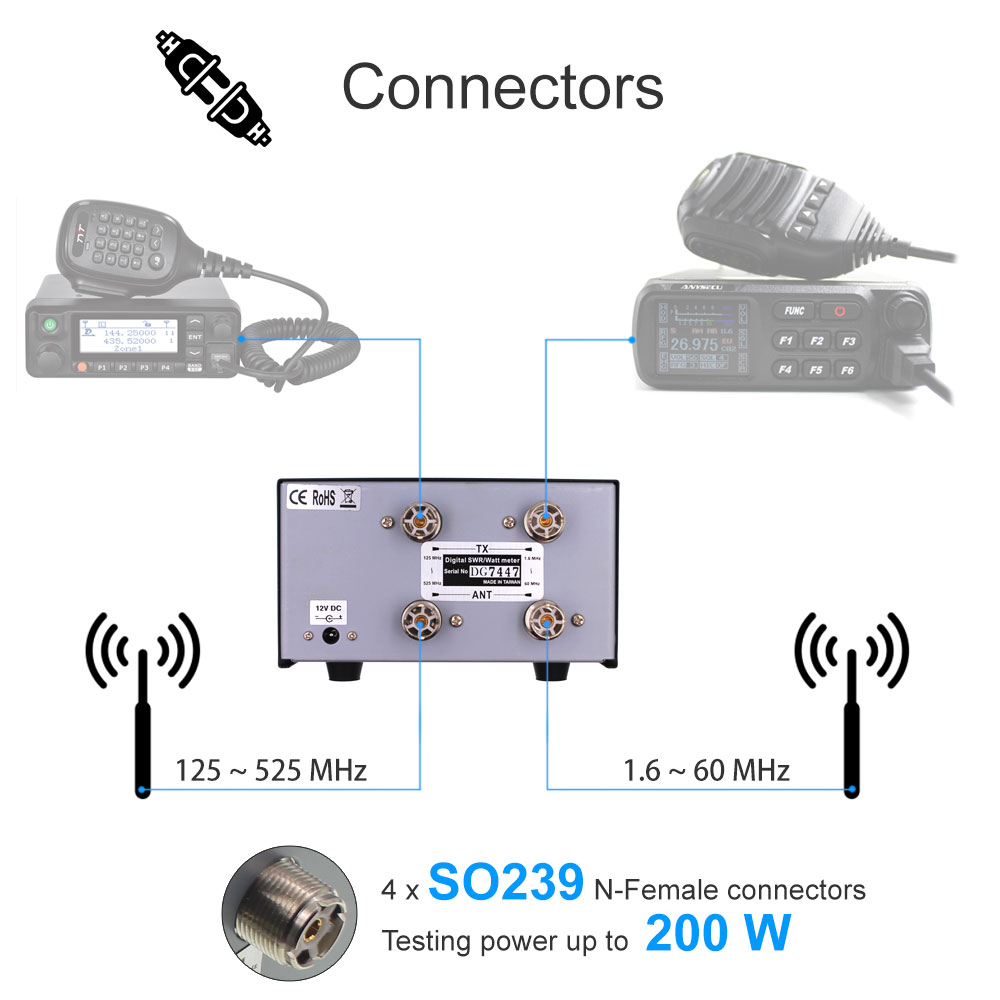

Connector: SO239 (N-female option)
Weight: 750g

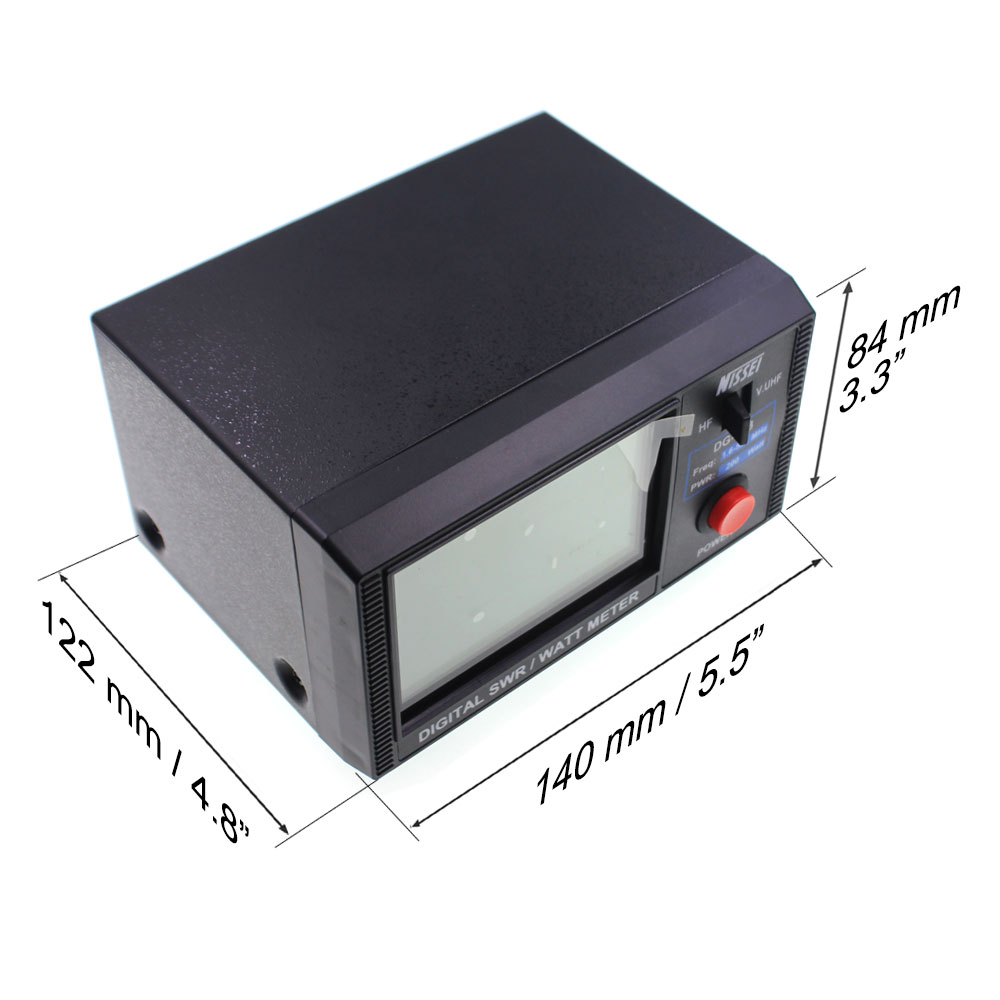

Size (m/m): 140x84x122 (millimeter)

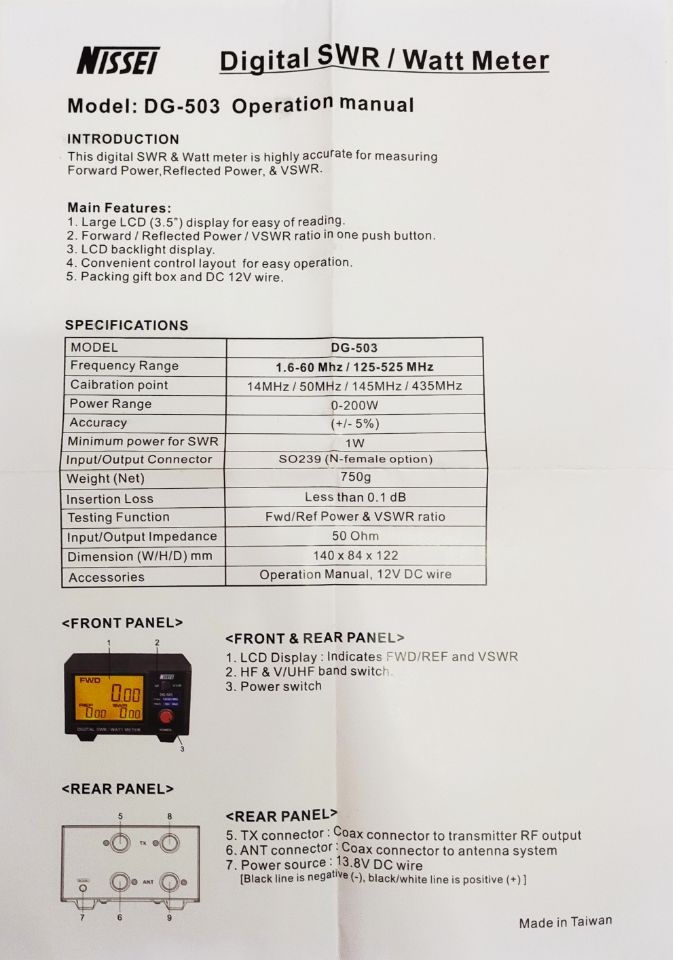

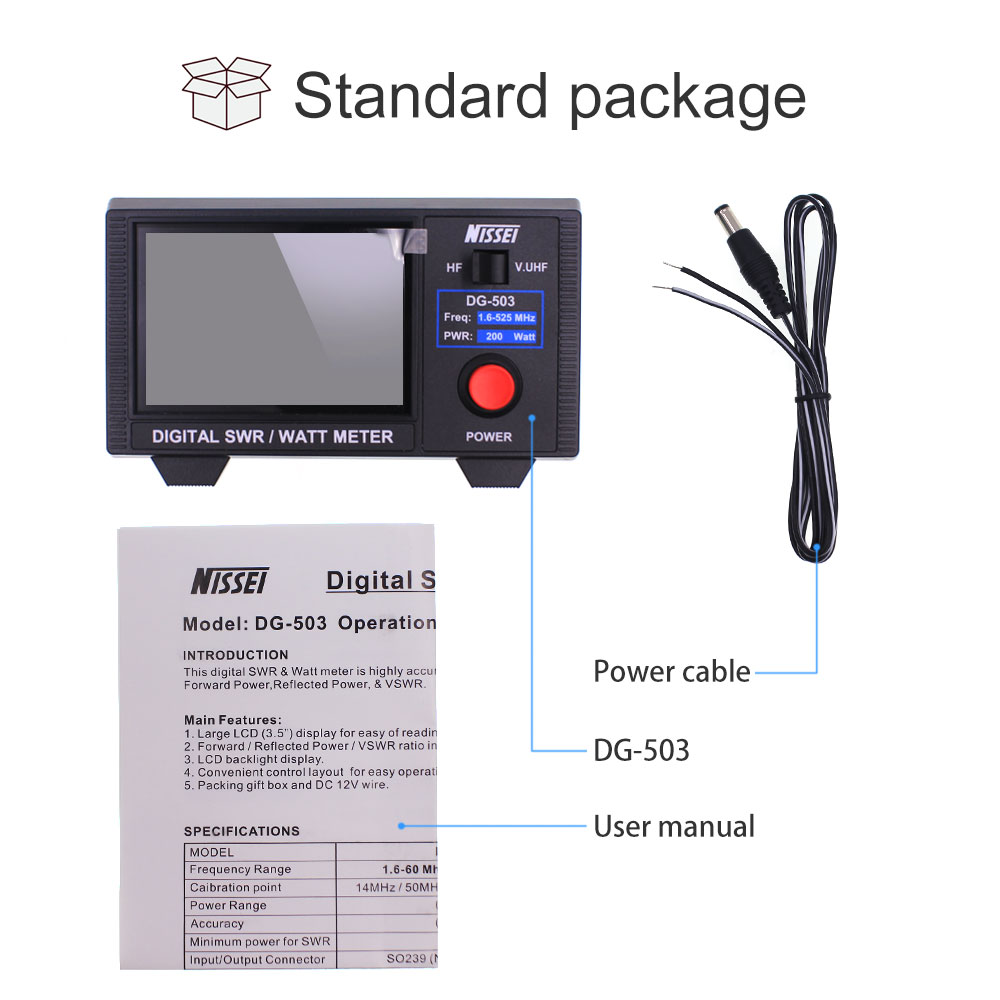

Accessories: use instructions, DC power line
