New SURECOM SW-102 meter 125-520 Mhz Digital VHF/UHF Power & SWR Meter SW102 For Two Way Radio

Sold 621 only 321 item(s) left
$54.60 $99.90 Save $45.30
Sold 621
Color:  SW-102-N
Quantity
Share the love
Free worldwide shipping
Support Returns
made in China
Secure payments

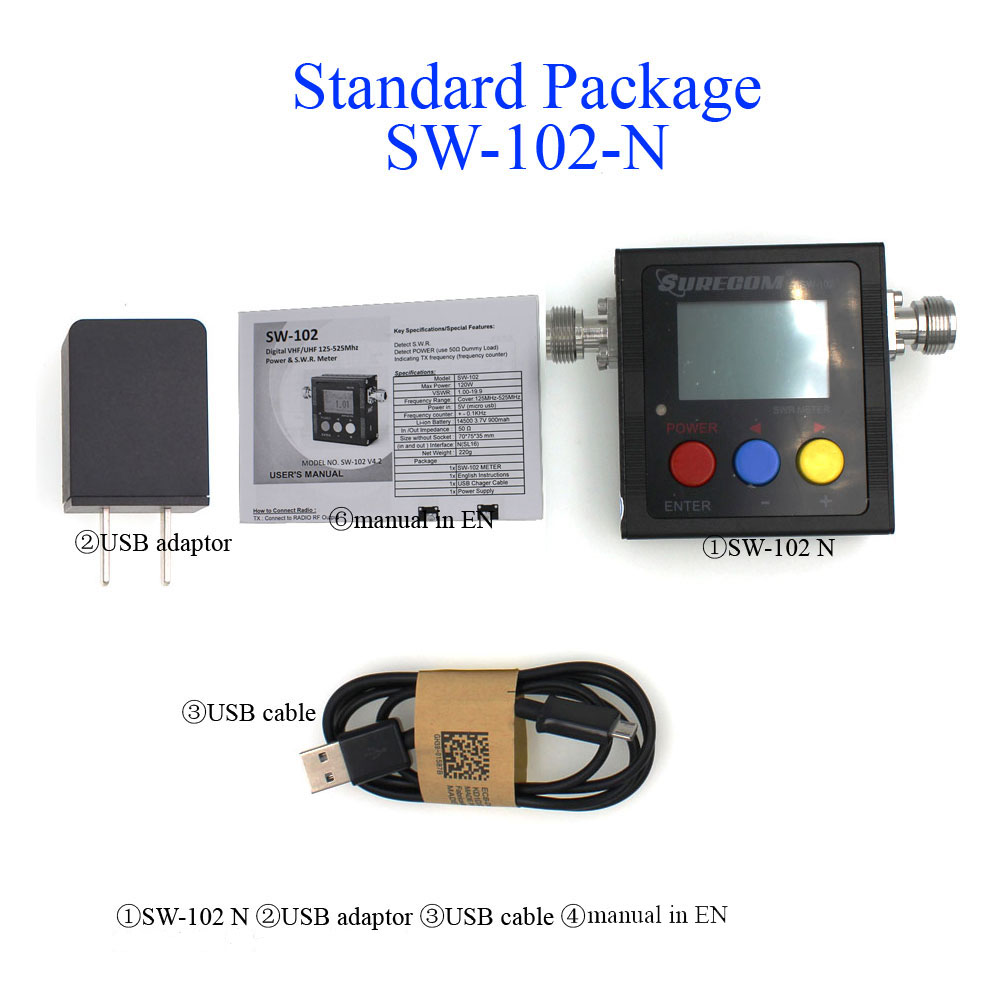

Description



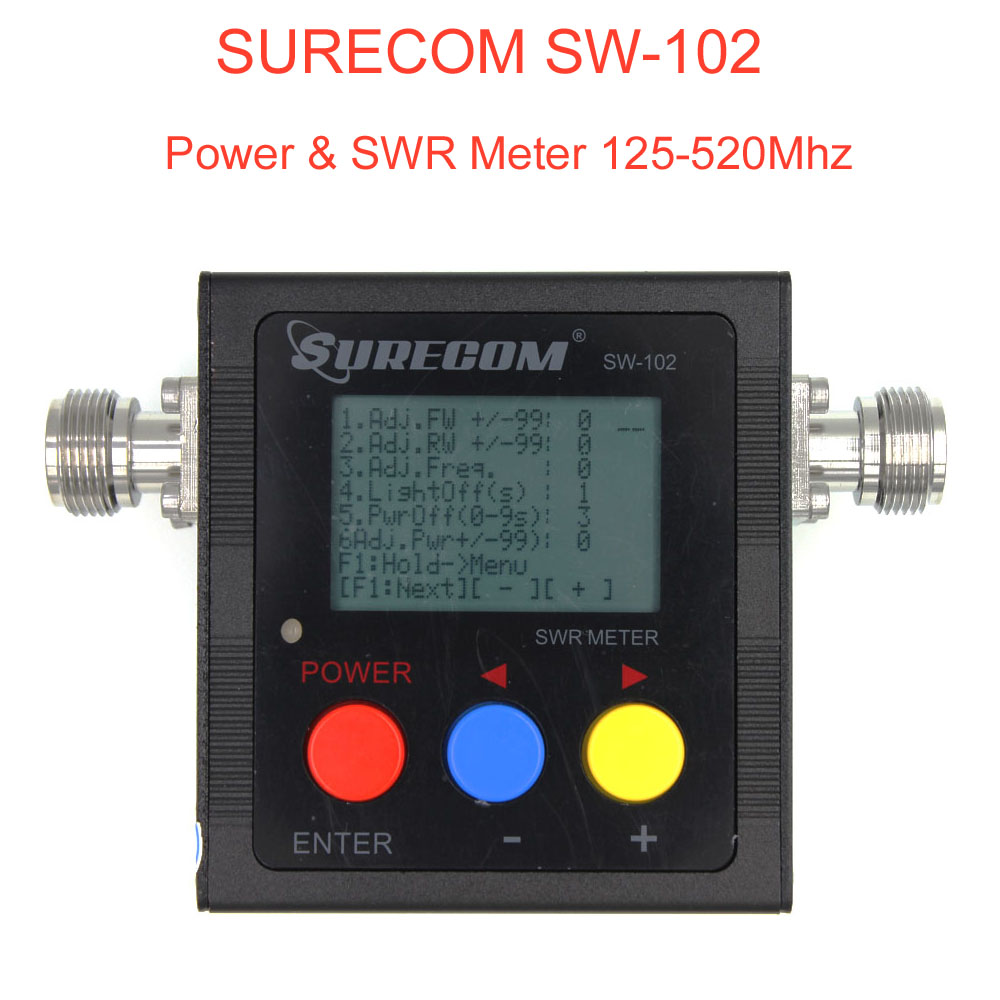

New SURECOM SW-102 meter 125-520 Mhz Digital VHF/UHF Power & SWR Meter SW102 For Two Way Radio







Introduction


VSWR. Forward and reflected power direct digital readout, without any calibration.


Maximum measurable power range up to 120W.


low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.


Build in Frequency counter .


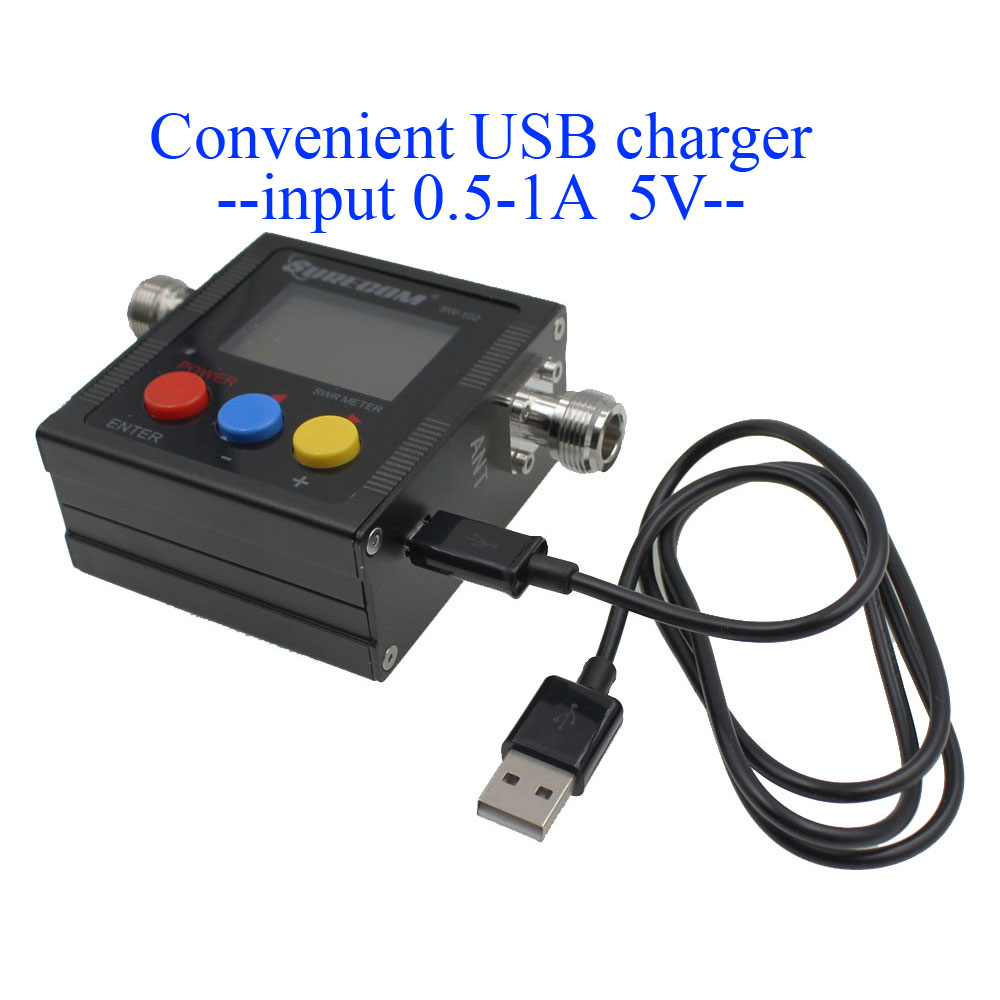

Feature & Specification


Frequency range: 125 - 520MHz


Measurable power range: 0 - 120W



Maximum power: 120W Accuracy: mean + / - 5%


Impedance: 50Ω


Size: W 76 X H 77 X D35 mm.


Weight: <260 grams

Interface: N-J Interface



(SW-102 is not for DMR system)



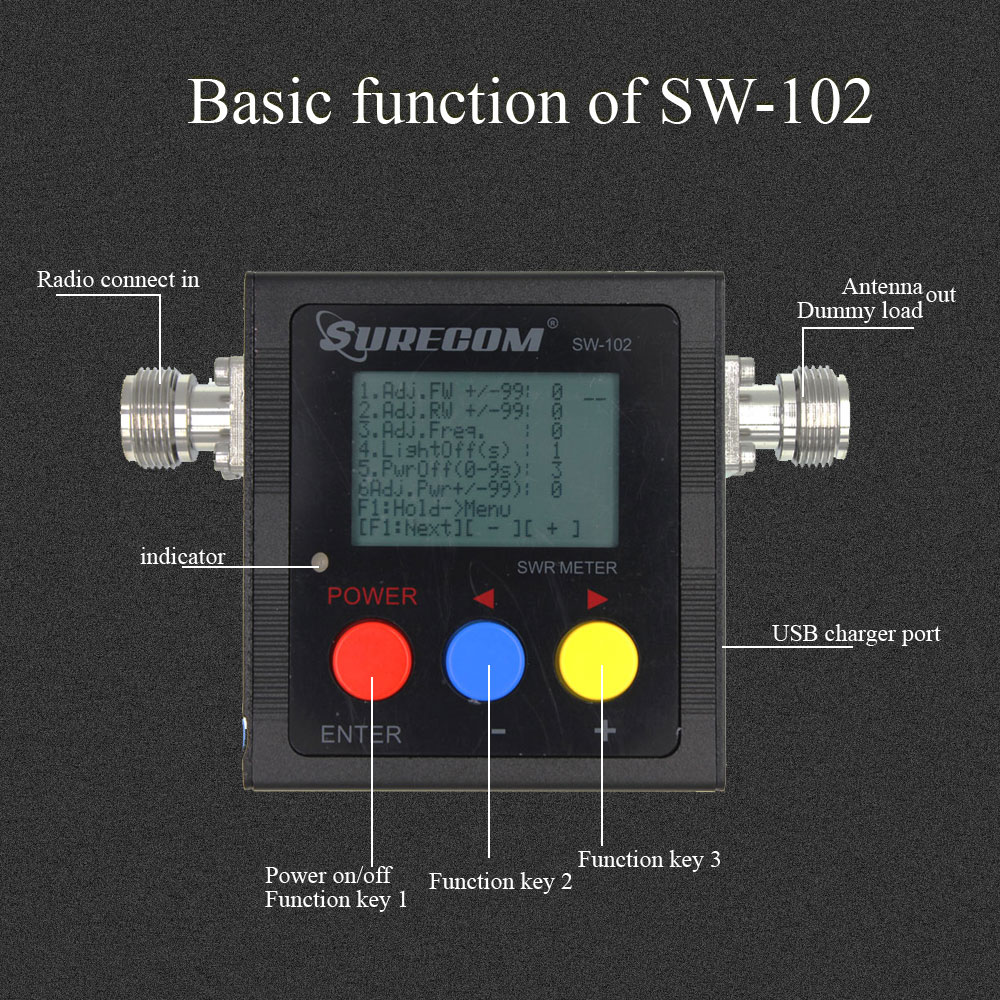

  • Power ON/OFF:

Press 2 second the [Red button] to power on or power off

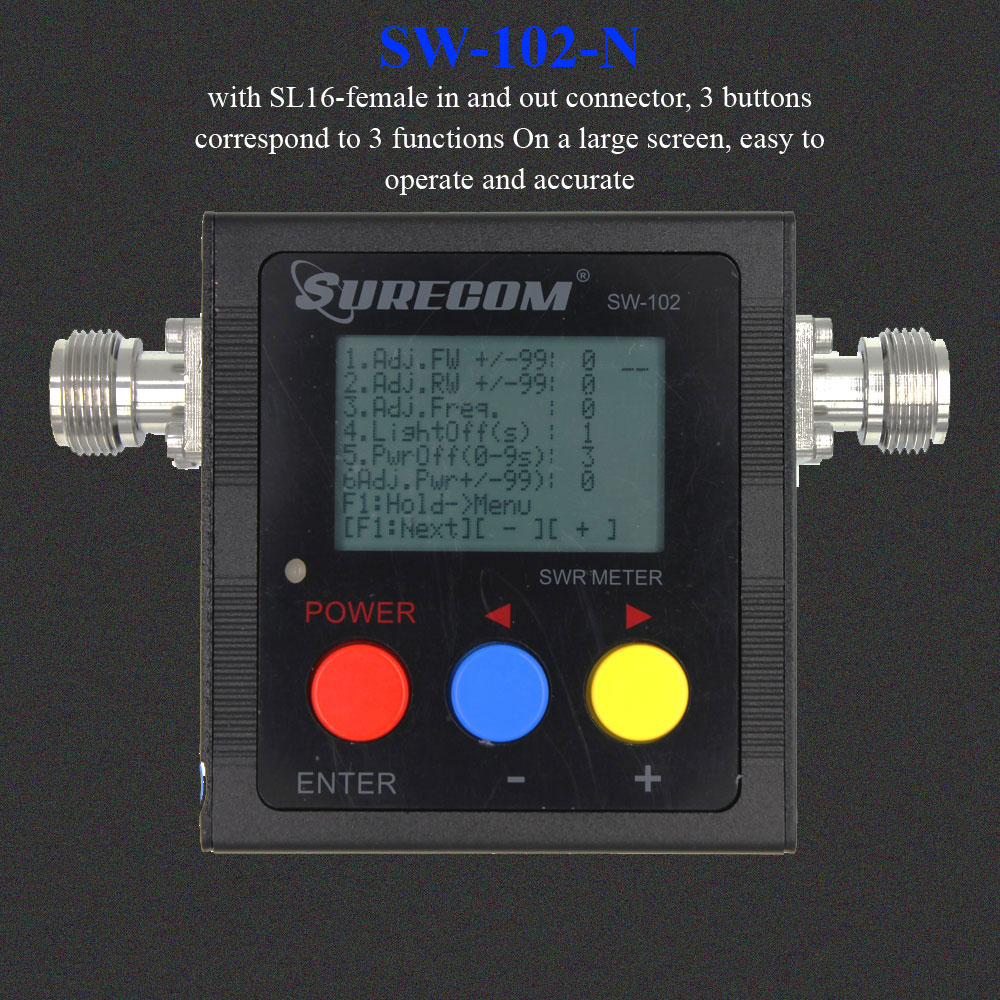

MENU Dispaly

No.

Mode

Adj
Default Setting

 Content

1

Adjustment Forward

 -99  to  +99

0

Fine Tune Level %

2

Adjustment Reverse

 -99  to  +99

0

Fine Tune Level %

3

Adjustment Time Base

 -99  to  +99

0

Frequency Counter ,OSC Time Base

4

LCD DIM (Back Light  Time)

0-9

1

"0" is always on,  1 min  to  9 mins

5

POWER OFF

0-9

3

"0" is always on,  1 min  to  9 mins


*the product will add functionality without having to give notice


  • Set & Save:

  1. Press MENU [Blue button]

  2. Press F1 [Red button)(Select 1-5 Funtion)

  3. Press [Blue button] ( - ), [Yellow button] (+)

  4. Press the  [Red button ]for 2 seconds

  5. Press the  [Blue button] to SAVE and EXIT



  • How to check the S.W.R. of your Antenna :

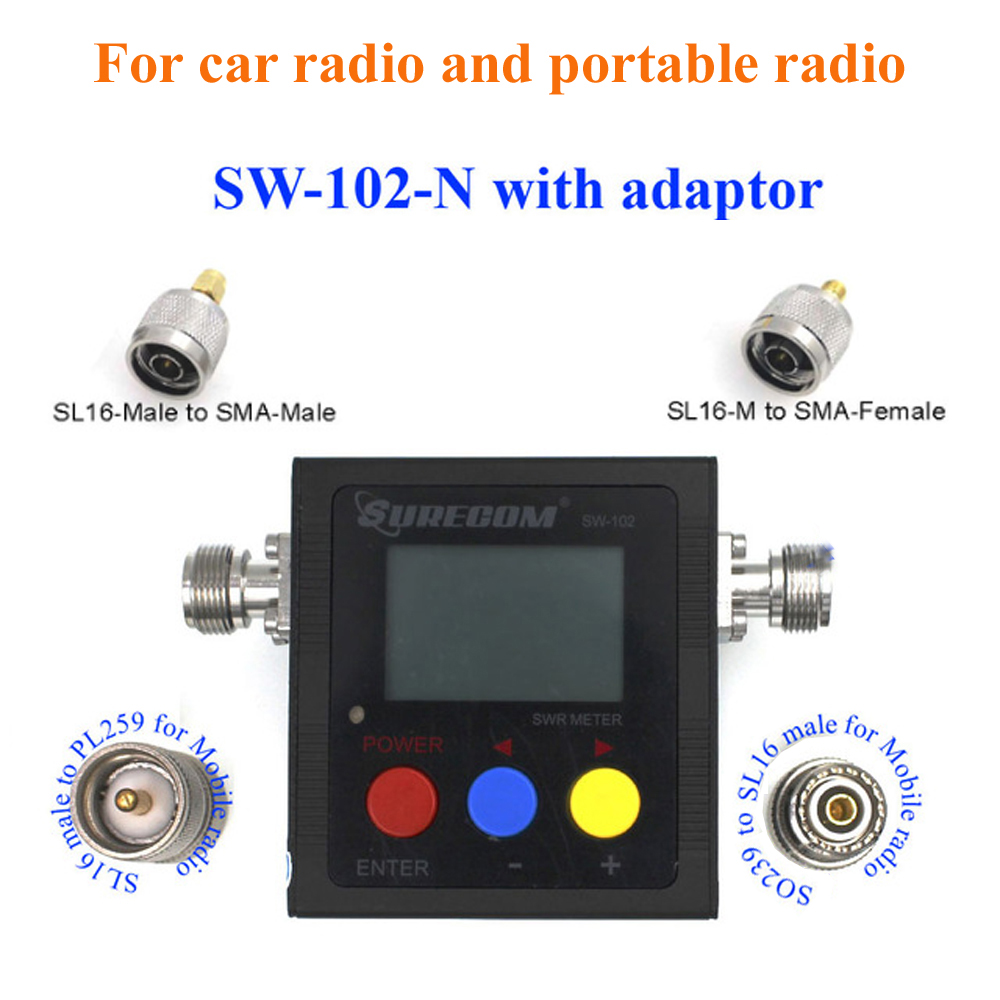

    Connect to "TX" on Radio output  and Antenna  to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.

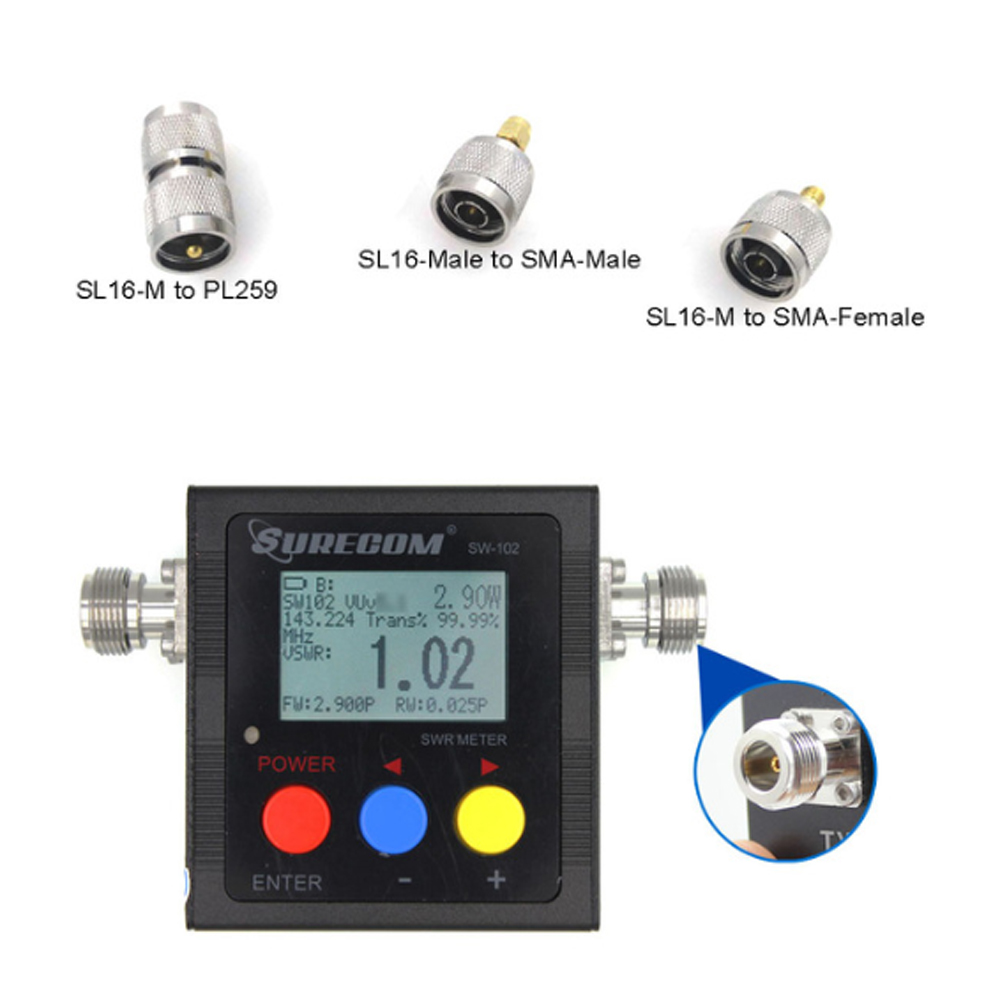

  1. Measurement V.S.W.R. : (see Pic.1)

  2. SW-102 TX connect Radio RF out

  3. Radio TX , SW-102 with display S.W.R. measure data.
    Do not affect the test in the following cases, there are objects nearby, placed horizontally.

  • How to check the output Watt of your transceiver :
    Connect to "TX" on Radio output and dummy Load to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.

  1. Measurement Power: (see Pic.2)

  2. SW-102 TX connect Radio RF out

  3. SW-102 ANT connect 50 ohm Dummy Load

  4. Push Radio TX , SW-102 display is Power  measure data.
    (SW-102 is not for DMR system)
