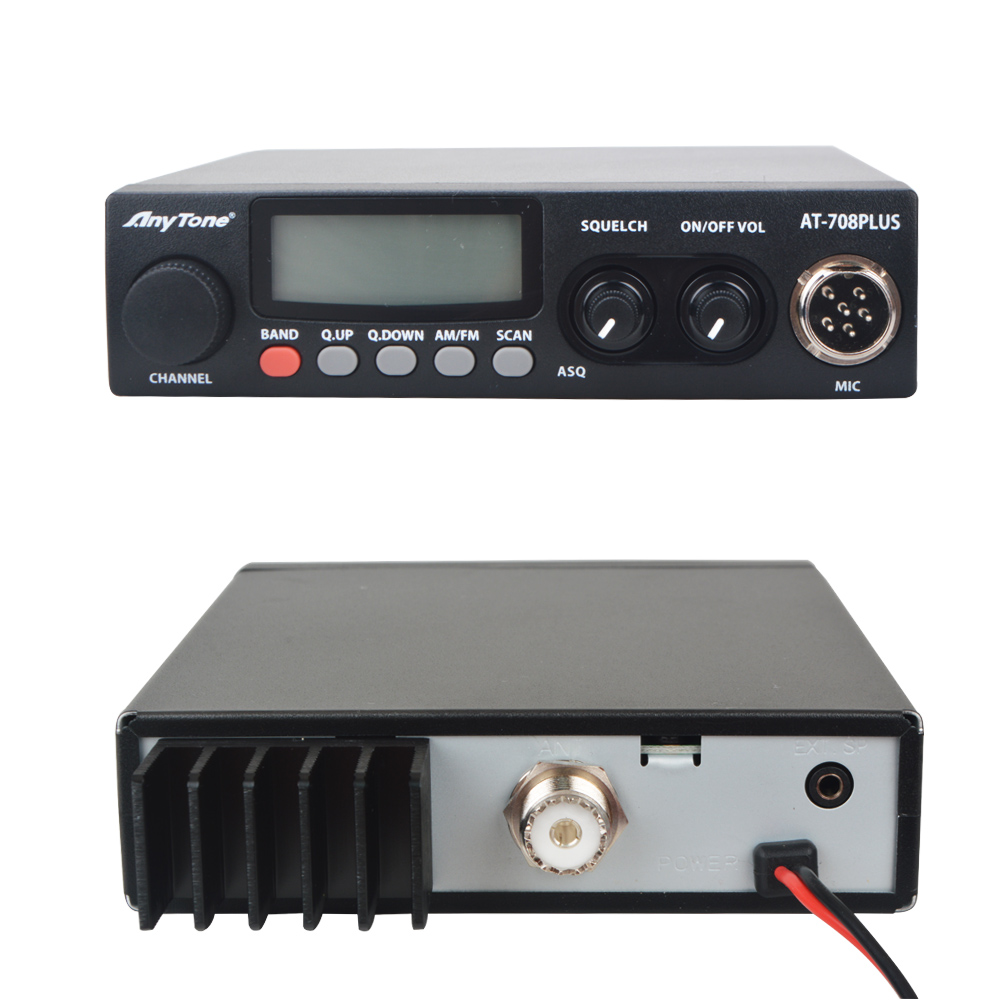

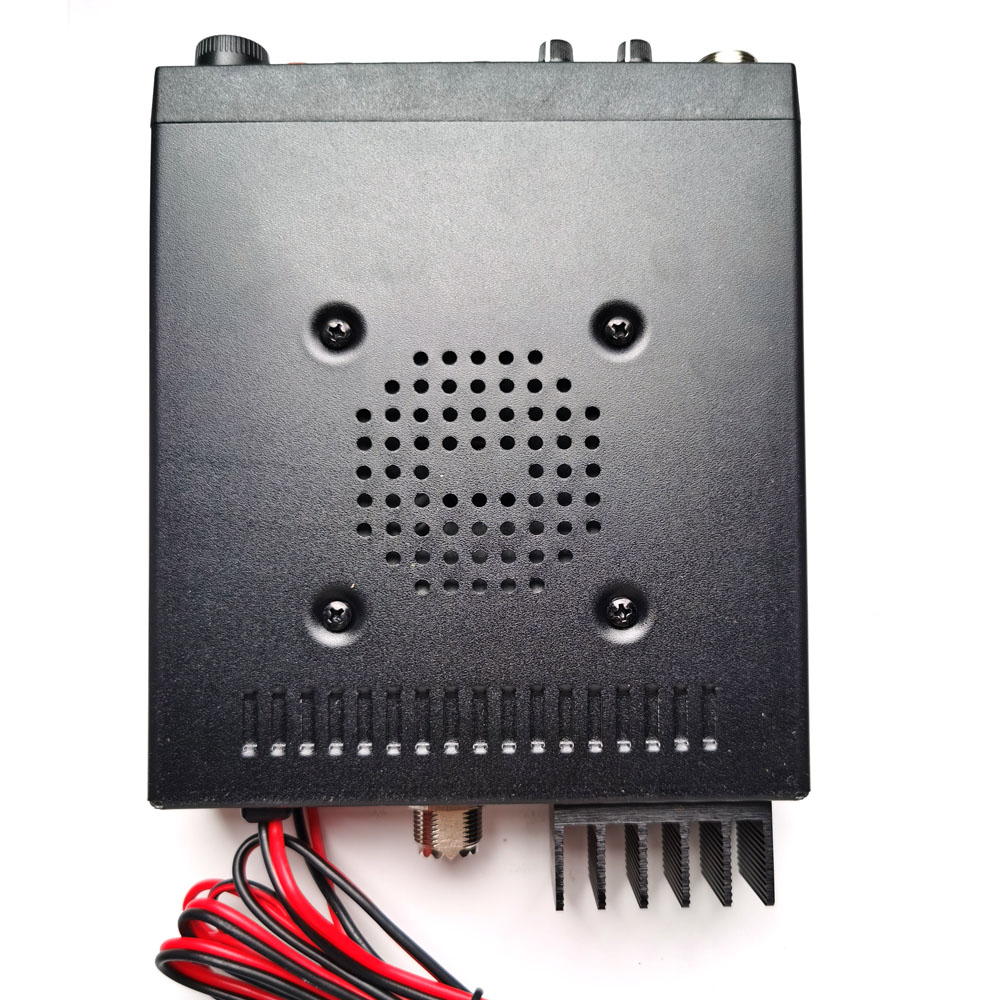

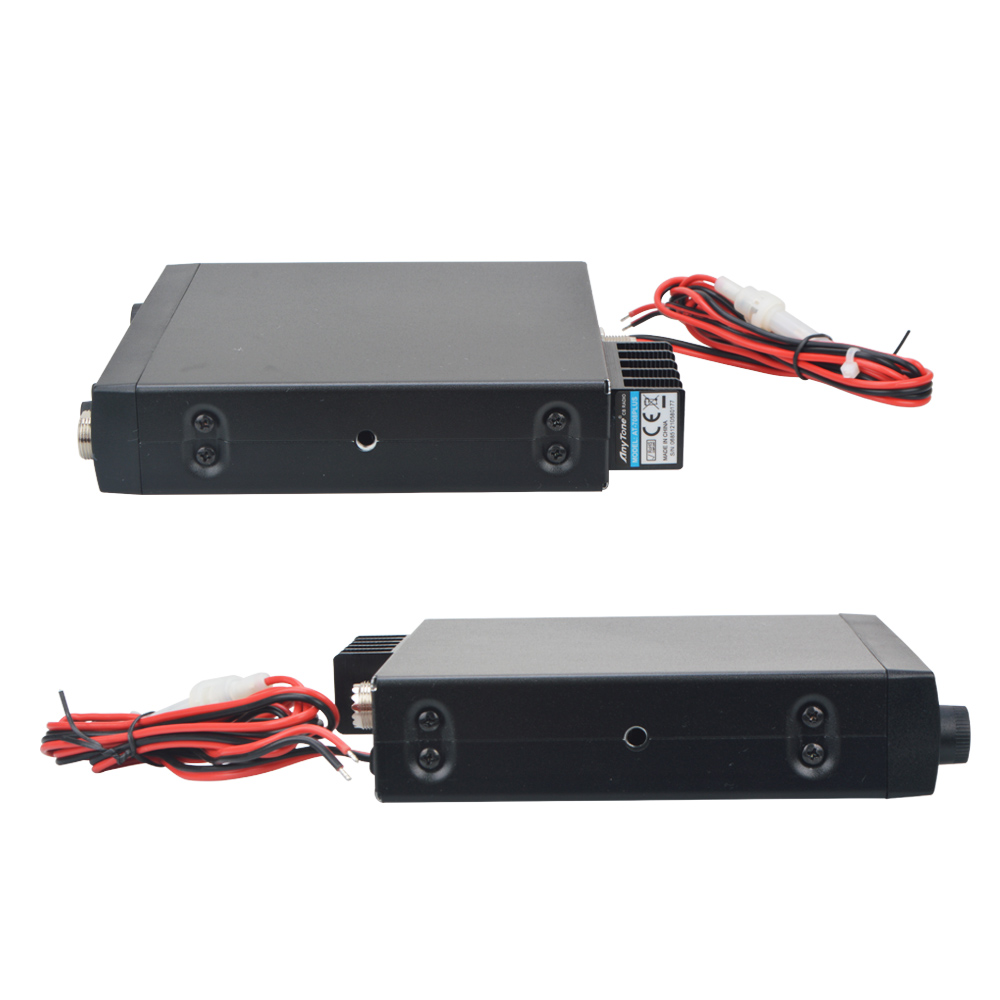

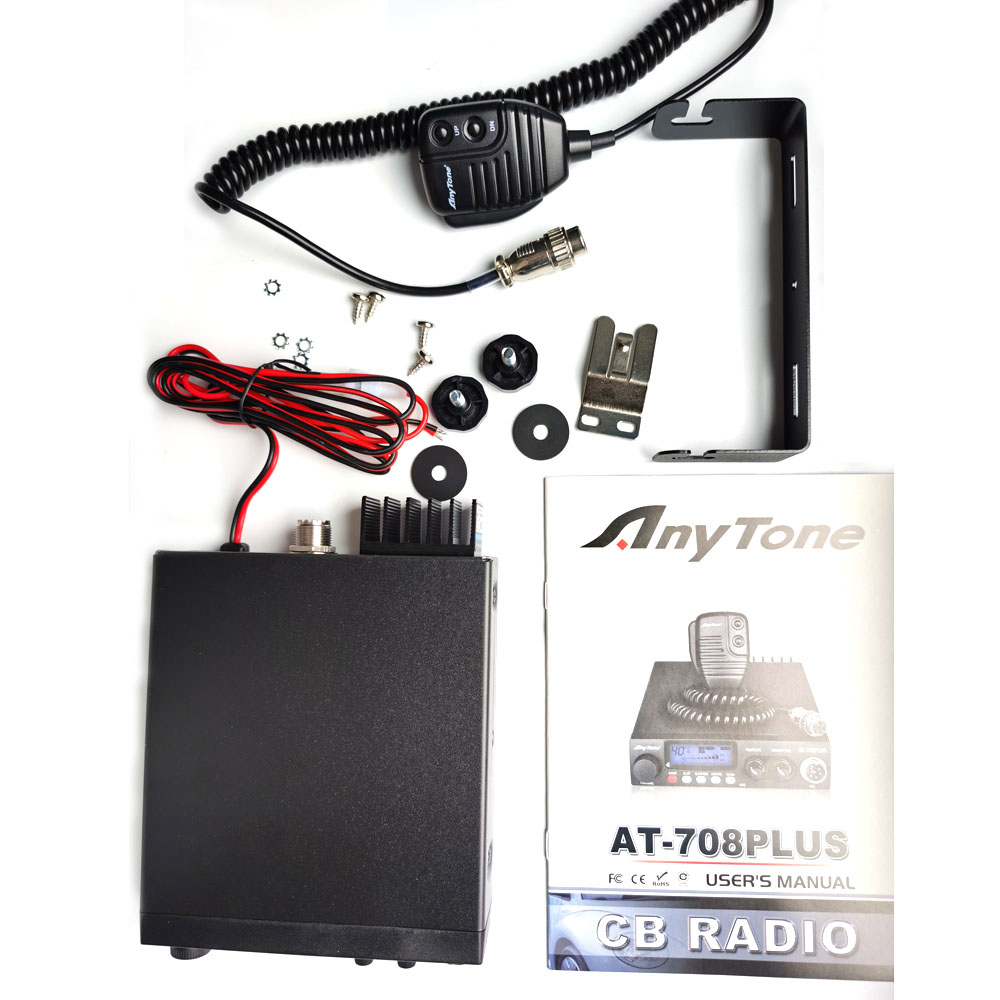

Anytone AT-708 Plus CB Radio 24.265-29.655MHz AM FM 27MHz Mobile Radio Station Communciator 8W 11 Meter Radio
HOW TO OPERATE WITH YOUR RADIO
1. Screw the microphone plug into the microphone jack.
2. Make sure your antenna is securely connected to the antenna connector.
3. Make sure the SQUELCH control is turned fully conterclockwise.
4. Turn on the unit and adjust the volume control.
5. Select your desired channel.
6. To transmit, press the PTT button and speak in a normal tone of voice.
7. To receive, release the PTT button.
SPECIFICATIONS
|
|
|
|
GENERAL |
|
|
Modulation Mode |
AM/FM |
|
Frequency Range |
26.565-27.99125MHz |
|
Frequency Tolerance |
±5.0ppm |
|
Input Voltage |
13.2V DC ± 15% |
|
Dimensions |
140x195x37mm |
|
Weight |
656g |
|
Operating Temperature Range |
-20℃ to +50℃ |
|
Current Drain |
Transmit:3A MAX ; Receive:Squelched 0.3A ; VOL Max:0.7A |
|
Antenna Connector |
UHF, SO-239 |
|
RECEIVER |
|
|
Sensitivity |
Less than 1uV for 10dB(S+N)/N |
|
Adjacent Channel Rejection |
60dB |
|
IF Frequencies |
1st 10.695MHz |
|
2nd 455KHz |
|
|
Automatic Gain Control(AGC) |
Less than 10dB change in audio |
|
Output for inputs from 10 to 50000uV |
|
|
Squelch |
less than 1uV |
|
Audio Output Power |
1Watts at 8Ω less than 10% distortion |
|
Frequency Response |
300-3000Hz |
|
TRANSMITTER |
|
|
Power Output |
8 Watts FM/AM |
|
Frequency Response |
300-3000Hz |
|
Modulated signal distortion |
inferior to 5% |
|
Output Impedance |
50 ohms |
