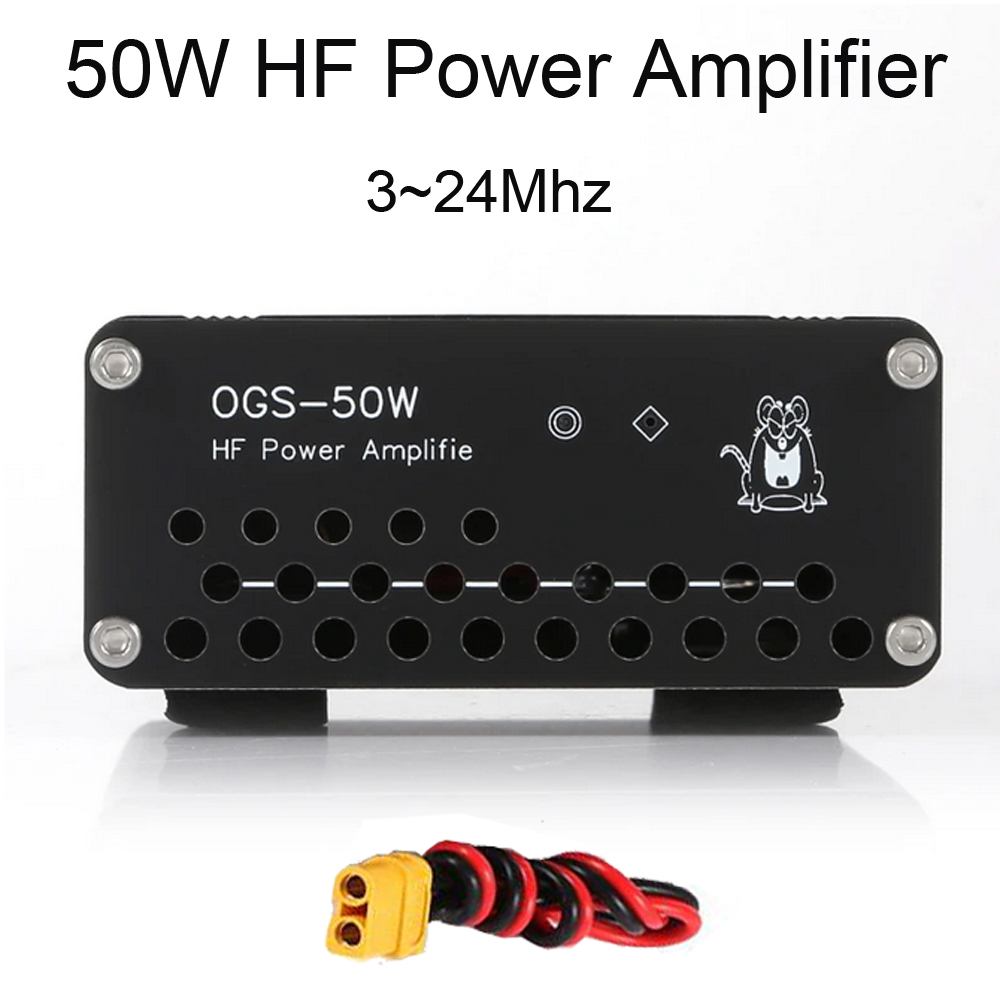

OGS-50W HF Power Amplifier 3~24Mhz 50W Fit for Xiegu G90
G1M X5105 USDX FT-817 IC*OM IC-703 IC-705 Elecraft KX3
Radios
Features:
1. Built-in TX/RX auto cut circuit, no need for special PTT line, with signal input automatically switch to transmit mode.
2. Built-in powerful fan, the temperature reaches the set value automatically open cooling.
Parameters:
－Operating frequency: 3~24Mhz.
－Transmission and pulling power: 1～5W.
－Output power: 50W.
－Interface impedance: 50Ω.
－Operating voltage: 13.8V.

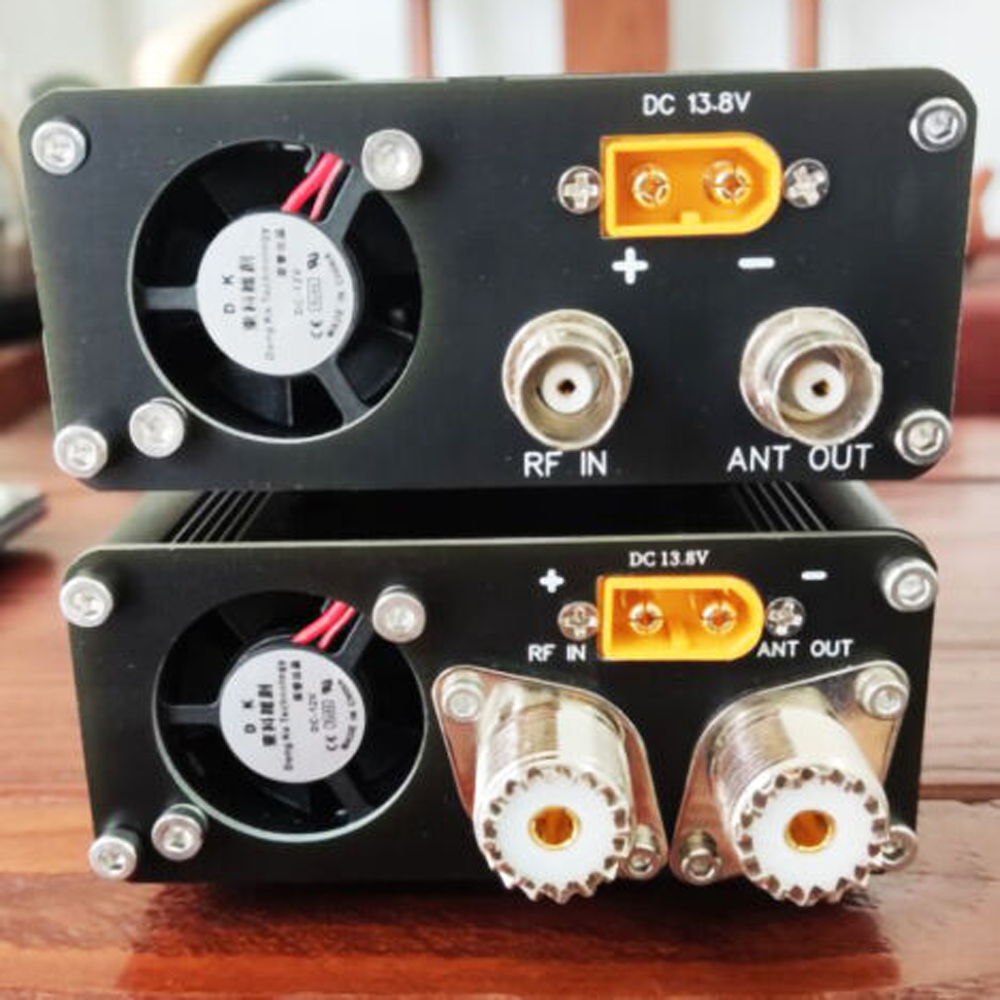

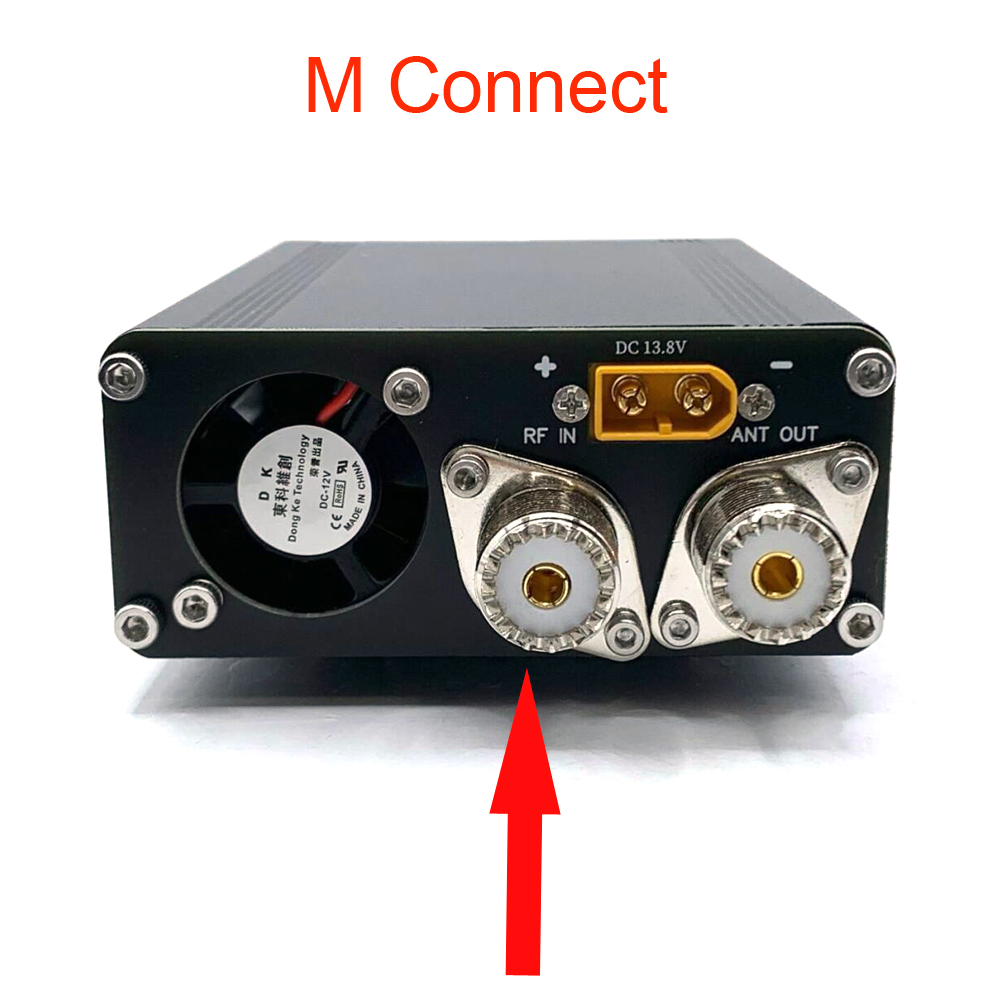

－Connect: M or BNC Plug.
Attention:
Before use, you need to use nanoVNA or similar tools to determine the transmitting antenna impedance of 50Ω, SWR < 1.5. Otherwise, the power transmitter tube will be damaged due to the mismatch of transmitting impedance!

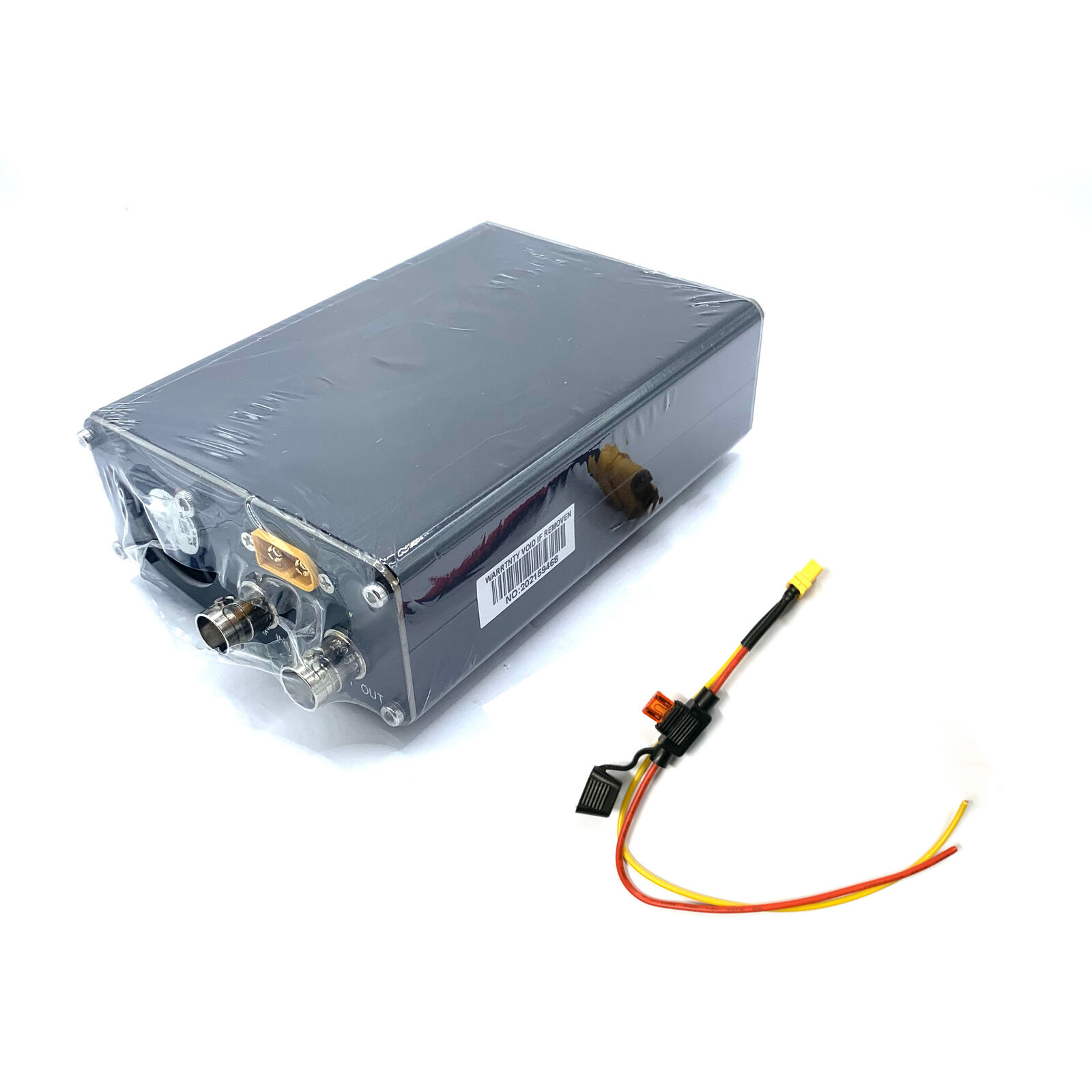

Package list:
1 * OGS-50W
1 * Power Cord
