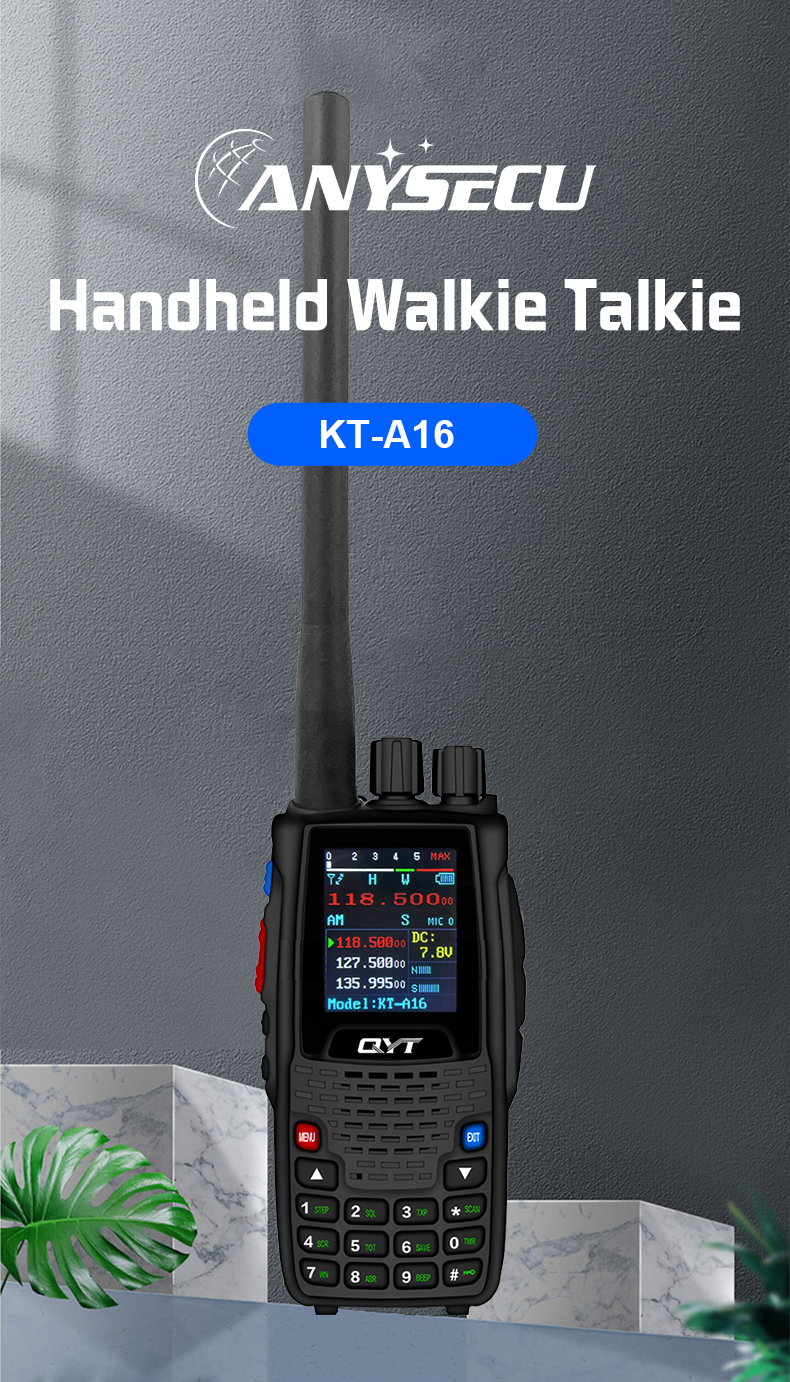

Air Band Transmit VHF Walkie Talkie KT-A16 Tx108.000-136.999MHz Rx108.0000-136.999MHz 6W 200Ch W/10 NOAA Weather Forecast Channels
Features:
Superheterodyne Circuit

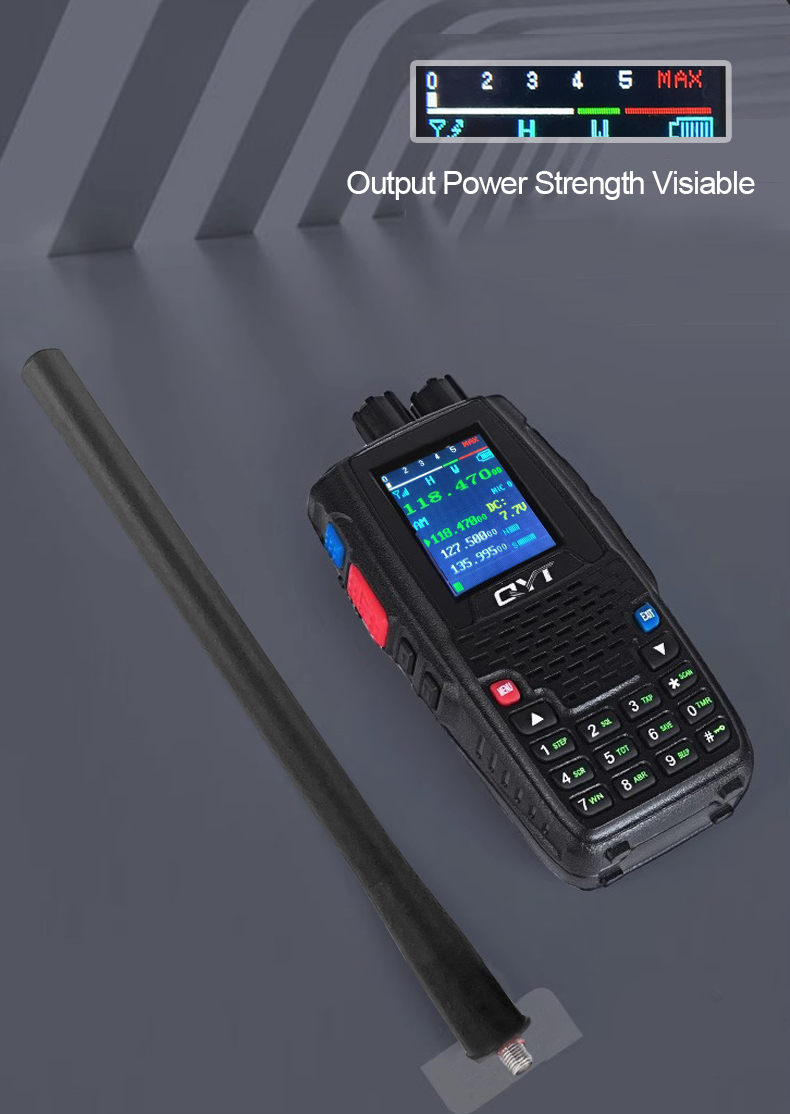

6W output Power

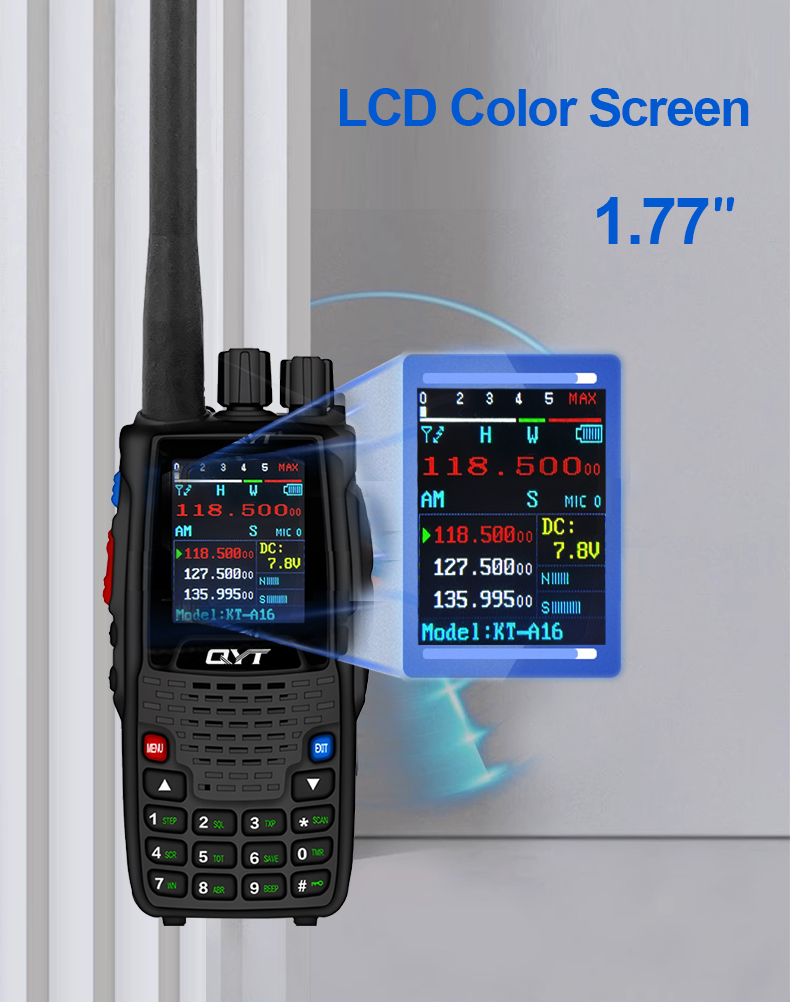

1.77”TFF-LCD color Screen

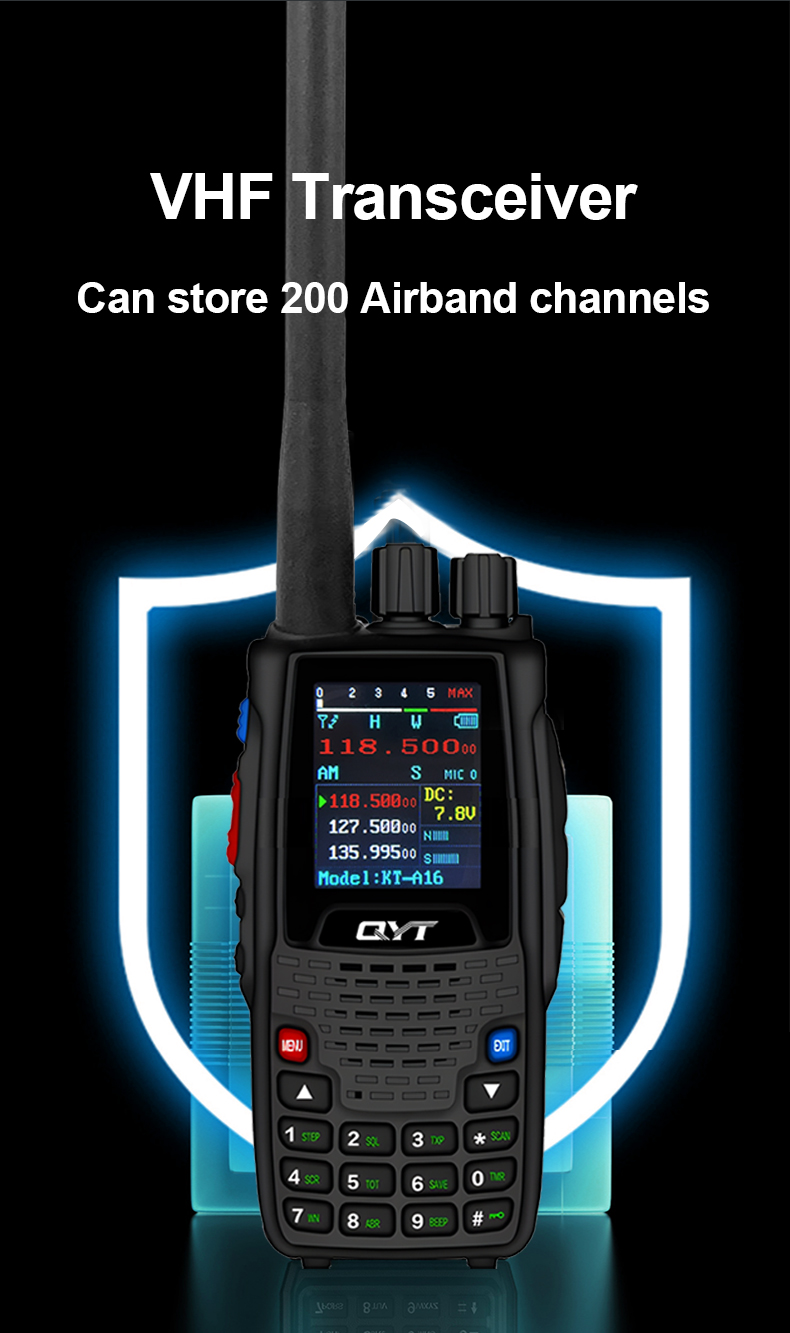

200 Memory Channels
10 NOAA Weather forecast Channels

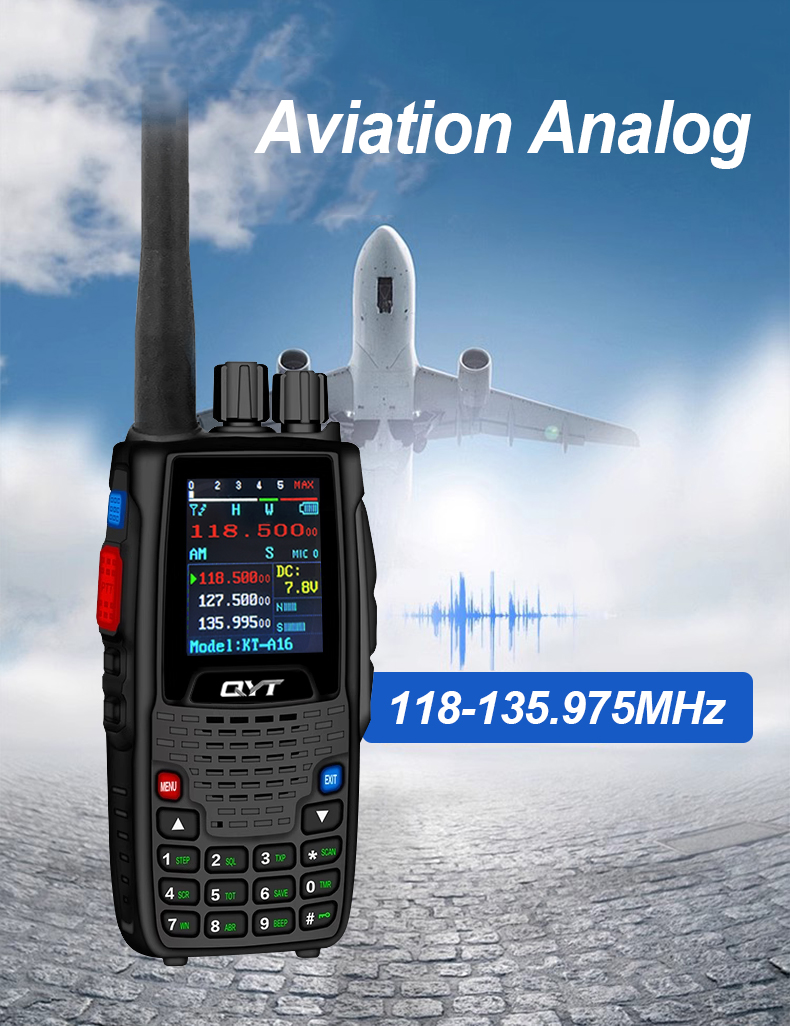

Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step
Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming
Squelch Level Adjustable

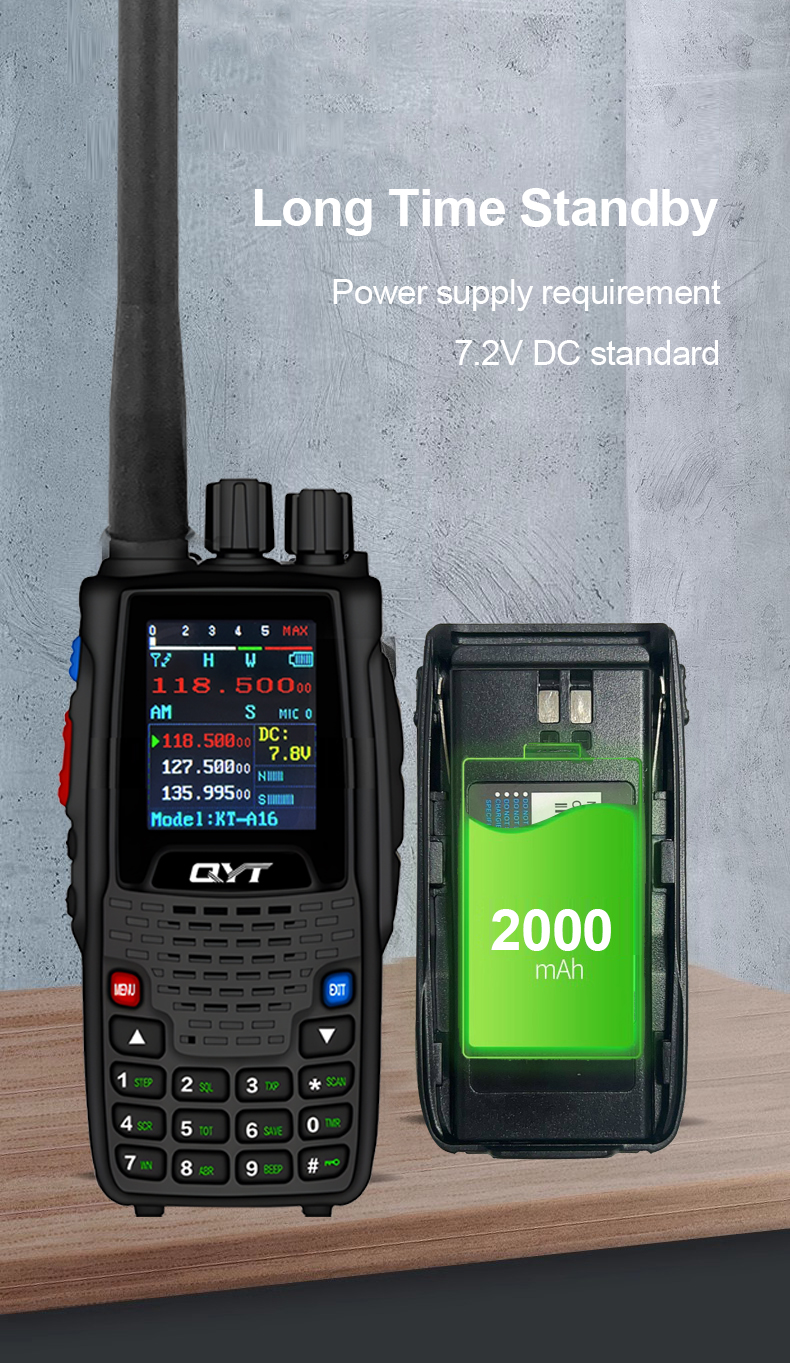

2000mAh Rechargeable Battery Pack
If you need to write frequency software, please contact us to send it to you. Thank you
NoteThe 8.33 is NOT Frequency Step,The 8.33 is AM Mode Channel Spacing
Specifications:
General
|

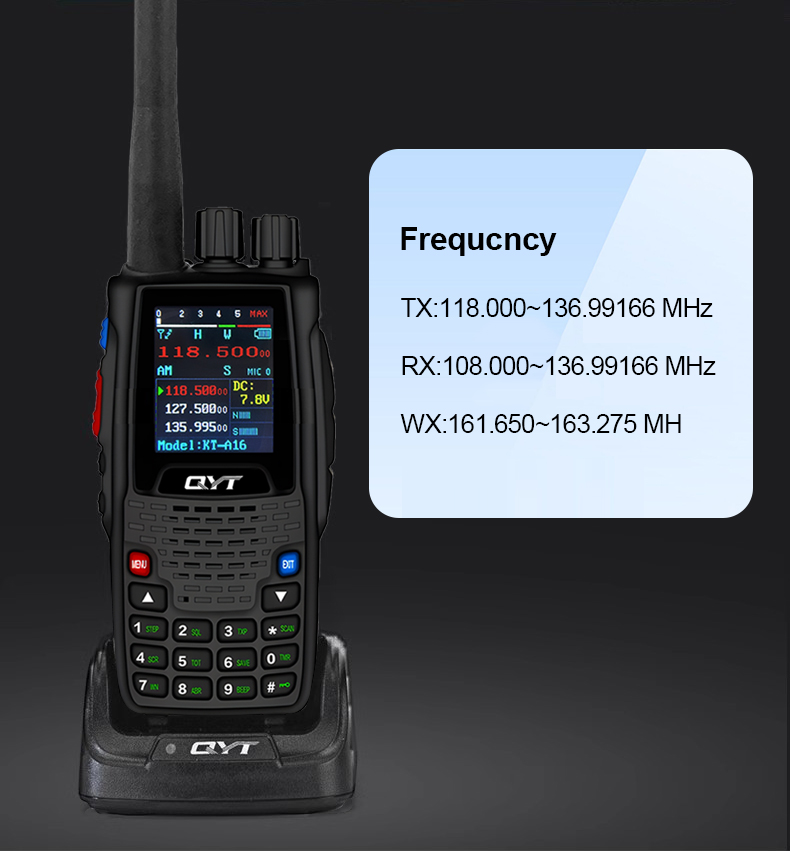

Frequency Range
|
TX:118.00000-136.99975MHz
RX:108.00000-136.99975MHz

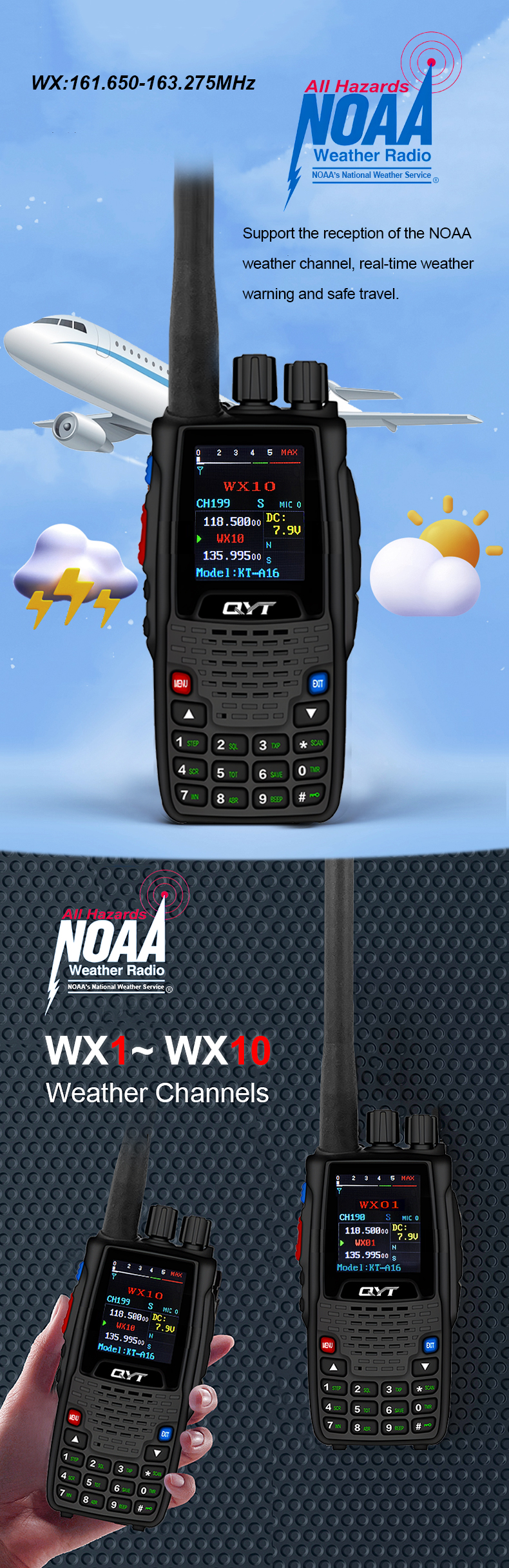

WX:161.650-163.275MHz
|
Channel Spacing
|
25kHz/8.33kHz
|
Mode
|
6k00A3E/5K60A3E
|
16K0G3E(WX)
|
Number of Memory Channels
|
200
|
Antenna Impedance
|
50ohm
|
Antenna Connector
|
SMA-Female
|
Power Supply Requirement
|
7.2V DC
|
Current Drain
|
Less than 1.8A
|
Operating Temperature range
|
-10°c`+60°c
|

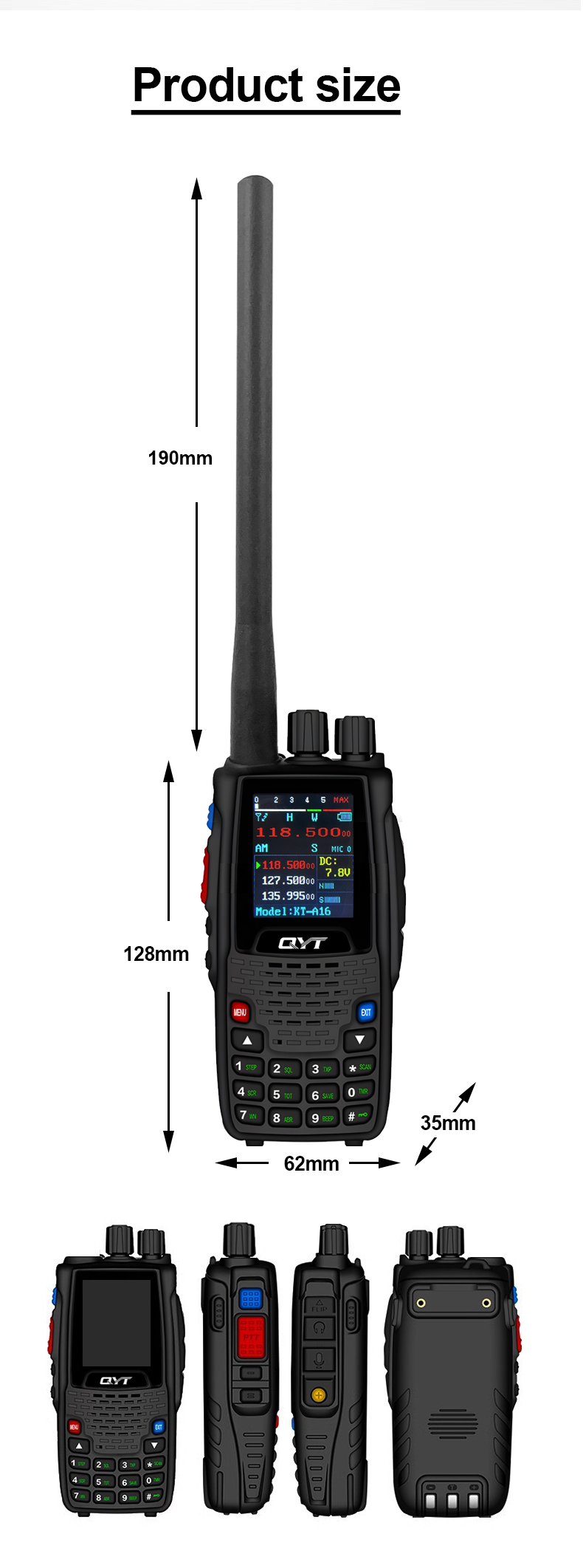

Dimensions
|
62(W)*128(H)*35(D)mm
|
Weight
|
239g with 2000mah Battery
|
Transmitter
|

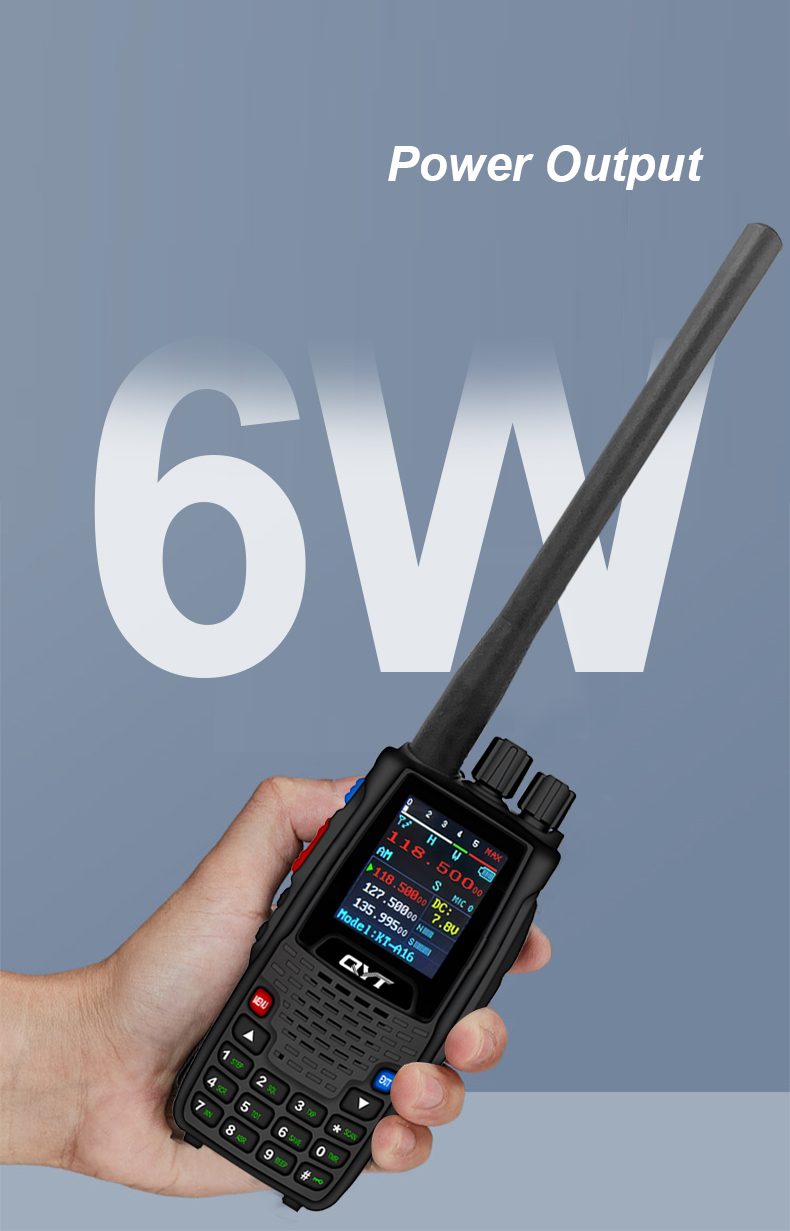

Output Power
|
6.0W(PEP),1.8W(CW)
|
Modulation Limiting
|
70-100%
|
Audio harmonic distortion
|
Less than 10%(at 60% modulation)
|
Ham and Noise Ratio
|
More than 35dB
|
Spurious emissions
|
More than 46dB
|
Frequency Stability
|
±0.4kHz
|
Receiver
|
Receive system
|
Double conversion superheterodyne
|
Intermediate frequencies
|
1st46.35MHz,2nd 450kHz
|
Sensitivity
|
COM: Less than 0dBu (at 6dB S/N)
|
NAV: Less than 3dBu (at 6dB S/N)
|
WX: Less than -8dBu (at 12dB SINAD)
|
Squelch Sensitivity(Threshold)
|
COM/NAV: Less than 0dBu
|
WX: less than -5dBu
|
Spurious response rejection Ratio
|
COM/NAV: More than 60dB
|
WX:More than 30dB
|
Note: Specifications are subject to change without notice due to Technology improvements .

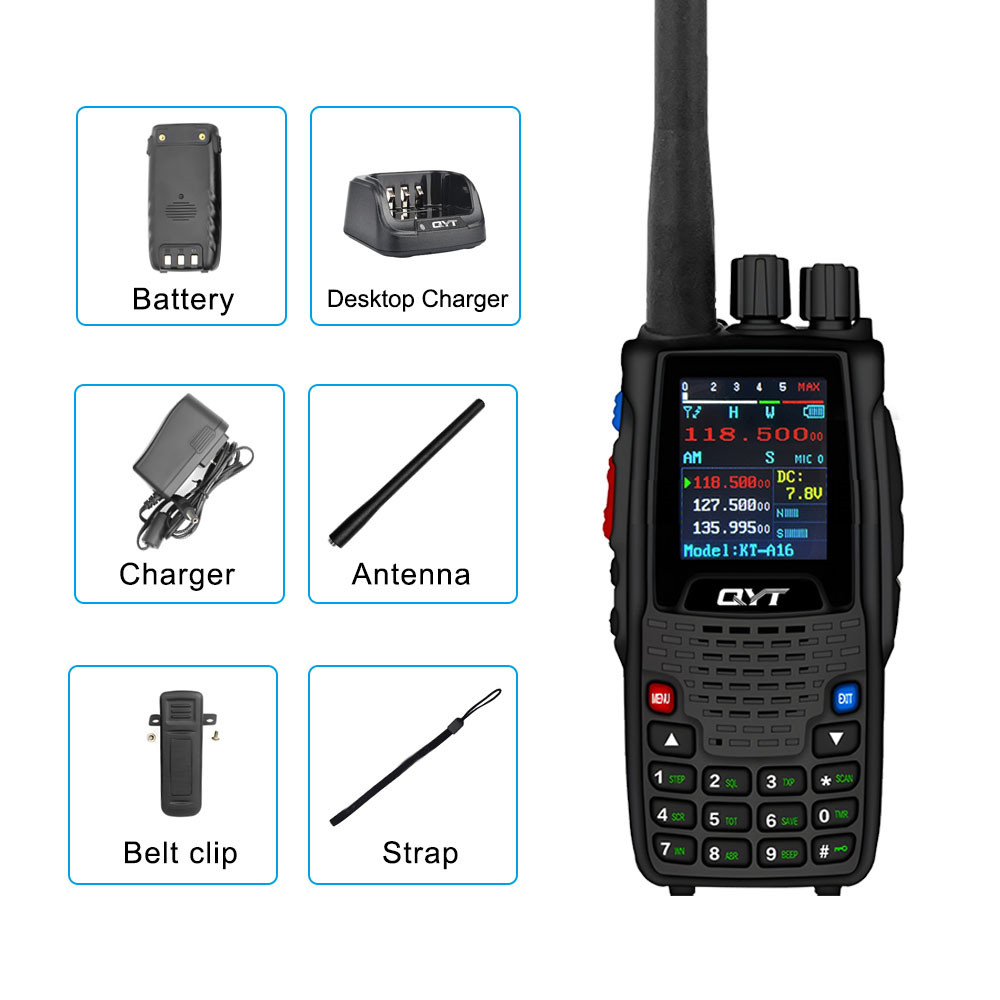

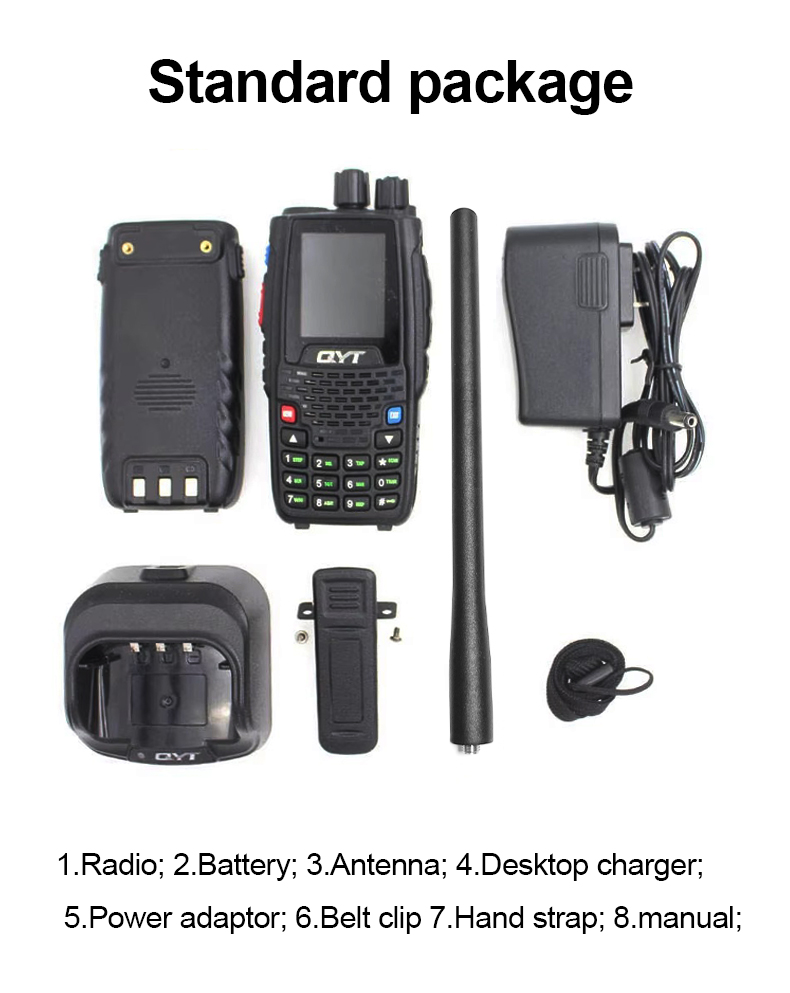

Package Contains:
1×QYT KT-8A Air Band Radio Body
1× 2000mAh Rechargeable Battery Pack
1× SMA-Female Air band Antenna
1× AC Adapter
1× Desktop Charger
1× Battery Clip
1×Hand Strap
1×ENG Manual
