Home / ANYSECU 4G LTE Network Radio UHF VHF Dual Band 25W M-9900 Cross Band Mobile Radio Linux System Work With Real-ptt

ANYSECU 4G LTE Network Radio UHF VHF Dual Band 25W M-9900 Cross Band Mobile Radio Linux System Work With Real-ptt

Sold 6 only 2 item(s) left
$149.00 $318.00 Save $169.00
Sold 6
Quantity
Share the love
Free worldwide shipping
Support Returns
made in China
Secure payments
Description
  • Robust IP55 Waterproof Rating:Reliable in any weather, this radio is IP55 water-resistant for outdoor use.
  • High Output Power:Boasting 25W output power, this radio ensures long-range communication.
  • Mot*orola Ham Radio|At T 4g Compatible Phones|Dual Band Connectivity:Seamlessly switch between UHF and VHF frequencies for versatile communication.
  • Real-ptt Cross-Band Communication:Enjoy cross-band communication with Real-ptt for efficient team coordination.
  • 4G LTE Network Integration:Stay connected with 4G LTE compatibility, enhancing your mobile communication.
  • Hign-concerned Chemical
    None
    Output Power(w)
    >50w
  • Battery Capacity(mAh)
    -
    Waterproof / Water-Resistant
    IP55
  • Material
    plastic+metal
    Storage Channel
    Linux System
  • Frequency Range
    LTE/WCDMA/GSM
    Dimensions
    153mm*78mm*45mm
  • Model Number
    M-9900
    Walkie Talkie Type
    Car
  • Is_Display
    Yes
    Maximum Range
    >50km
  • Brand Name
    ANYSECU
    Origin
    Mainland China
  • Certification
    CE
    type
    4g network radio

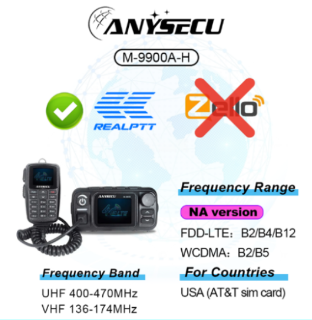

ANYSECU 4G LTE Network Radio UHF VHF Dual Band 25W M-9900 Cross Band Mobile Radio Linux System Work With Real-ptt







4G LTE + VHF + UHF

DUAL MODE MOBLE RADIO

Analog output power 25W

Dual SIM Card slots

Dual PTT

SOS 6 APRS function

GPS Function



Operator System

Linux

Version

SIM7600A-H

SIM7600SA-H

SIM7600E-H



Application Area

North America(AT&T)

New Zealand / Australia / South America

Europe / Middle East / Africa / Korea / Thailand

RF Parameter (Optional Band)

FDD-LTE,B2/B4/B12 WCDMA:B2/B5

FDD-LTE:b1/2/3/4/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:850/900/1800/1 900MHz

FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:900/1800MHz

Receiving

Receiving Sensitivity

LTE/4G:<-100dBm WCDMA 900:<-110dBm WCDMA2100:<-110dBm GSM850/900/1800/1900:<-109dBm

GPS

GPS

GPS Positioning, Support A-GPS function

Sensitivity

GPS L1 Band:1.57542GHz GLONASS Band:1597.5-1605.8Mhz BeiDou:1559.05-1563.8MHz

Catch-144dBm, Track-159dBm

GSM CS: 9.6kpbs/DL9.6kpbs

GNSS current: 100mA [GSM/CDMA/UMTS/LTE]

Technology Standard

Data Speed Rate

EDGE:Multi-slot Class 12

WCDMA CS: 64kpbs/DL 64kpbs

WCDMA PS: 384kpbs/DL 384kpbs

Protocol

HSDPA/WCDMA/EDGE/GPRS/GSM

Analog parts

Frequency Range[MHz]

Tx/Rx:400-480mhz & 136-174mhz

Type

Dual band, Dual standby

PLL Channel Spacing

5/6.25/10/12.5/25/50/1 OOKHz

Antenna Impedance

50Q

Frequency Stability

±2.5PPM

General

Basic Information

Working Voltage

12V/24V DC

Working Temperature

20---50C

Display

Color display

2.8 inch

Dimension

153mm[L]*78mm[W]"45mm[H]

Weight

570g

Sim Card Type

Standard Sim Size
